Gold Solo Whistle Cable Kit
MAN-G-SOLWHI-CBLKIT (Ver. 1.201)
www.elmomc.com
14
7.2. EtherCAT Cable Connectors and Cable Crimping Kit
(ACC-CONGSOLWHI-E)
Notes: 1. The ACC-CONGSOLWHI-E is not included in the CBL-GSOLWHIKIT01 cable kit.
2. ACC-CONGSOLWHI-E is a 100-sets of GOLD SOL-WHI EtherCAT Connector kit.
The following connectors and terminals are supplied with the Gold Solo Whistle EtherCAT
cable kit.
Conn. Name & Description QTY ELMO P.N Tyco Neltron Wurth
J4 Feedback Port A
2X6, 2MM PITCH ,CRIMP
HOUSING 1 JCB-112212FC 1-1470107-2 2418HJ-12-PHD ------
J5 Feedback Port B
2X4, 2MM PITCH ,CRIMP
HOUSING 1 JCB-112208FC 1470107-8 2418HJ-8-PHD -------
J6 I/O & Feedback Port C
2X12, 2MM PITCH ,CRIMP
HOUSING 1 JCB-112224FC 2-1470107-4 2418HJ-24-PHD ------
J26 STO & J21 RS232
1X3, 2MM PITCH ,CRIMP
HOUSING 2 JCB-112203FC 6-440129-3 2418HJ-03 620 003 113 322
J27 PTC & J30 Logic Power
1X2, 2MM PITCH ,CRIMP
HOUSING 2 JCB-112202FC 6-440129-2 2418HJ-02 620 002 113 322
CRIMP CONTACT FOR 2
ROWS
2.0 MM PITCH 50 JCB-112101FC 1470106-1 2418TJ-PHD --------------
CRIMP CONTACT FOR 1 ROW
2.0 MM PITCH 15 JCB-112201FC -------- 2418TJ 620 101 13722

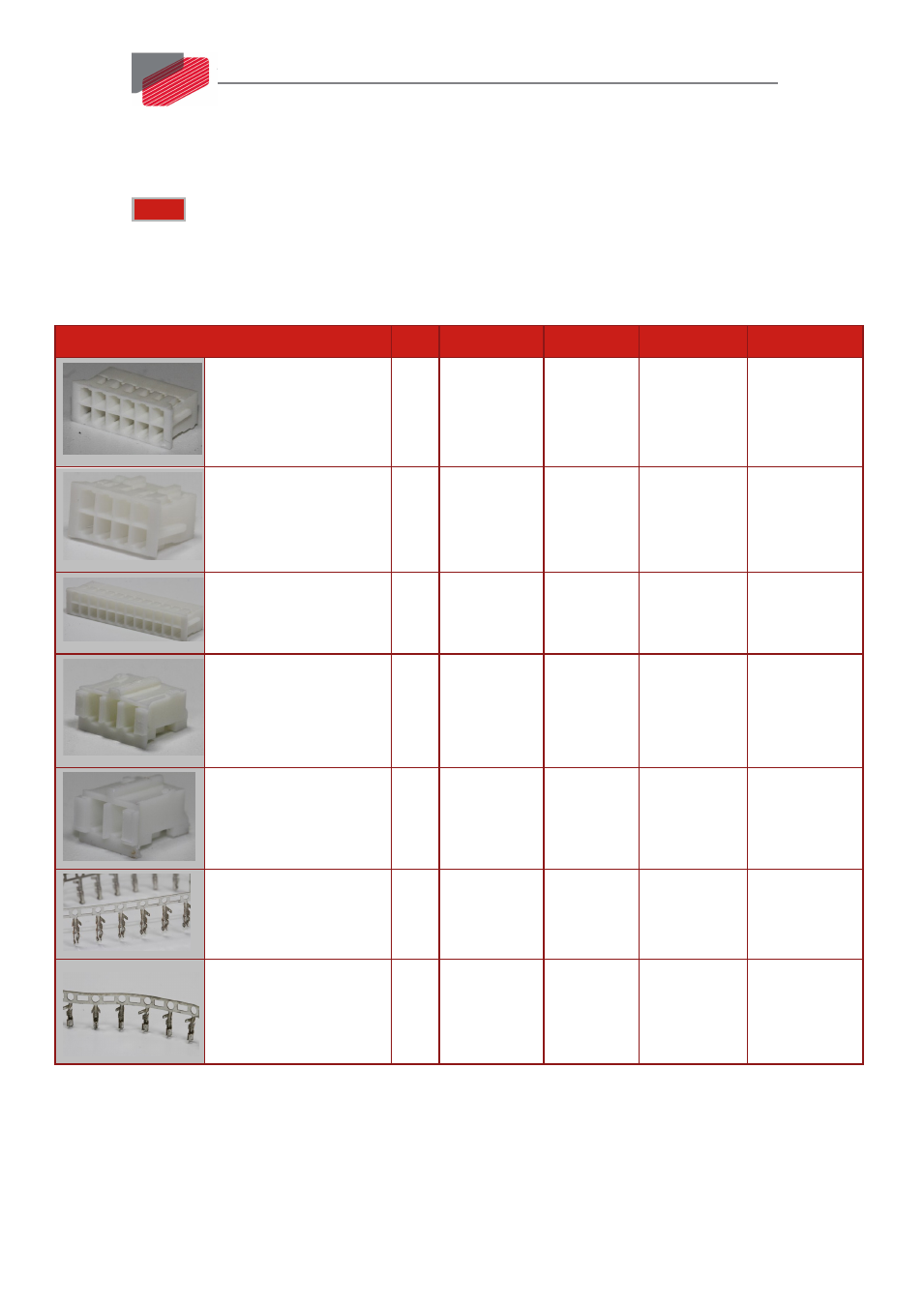

Figure 2: Gold Solo Whistle EtherCAT Connectors and Terminals
