Gold Solo Whistle Cable Kit

MAN-G-SOLWHI-CBLKIT (Ver. 1.201)

www.elmomc.com

11

11

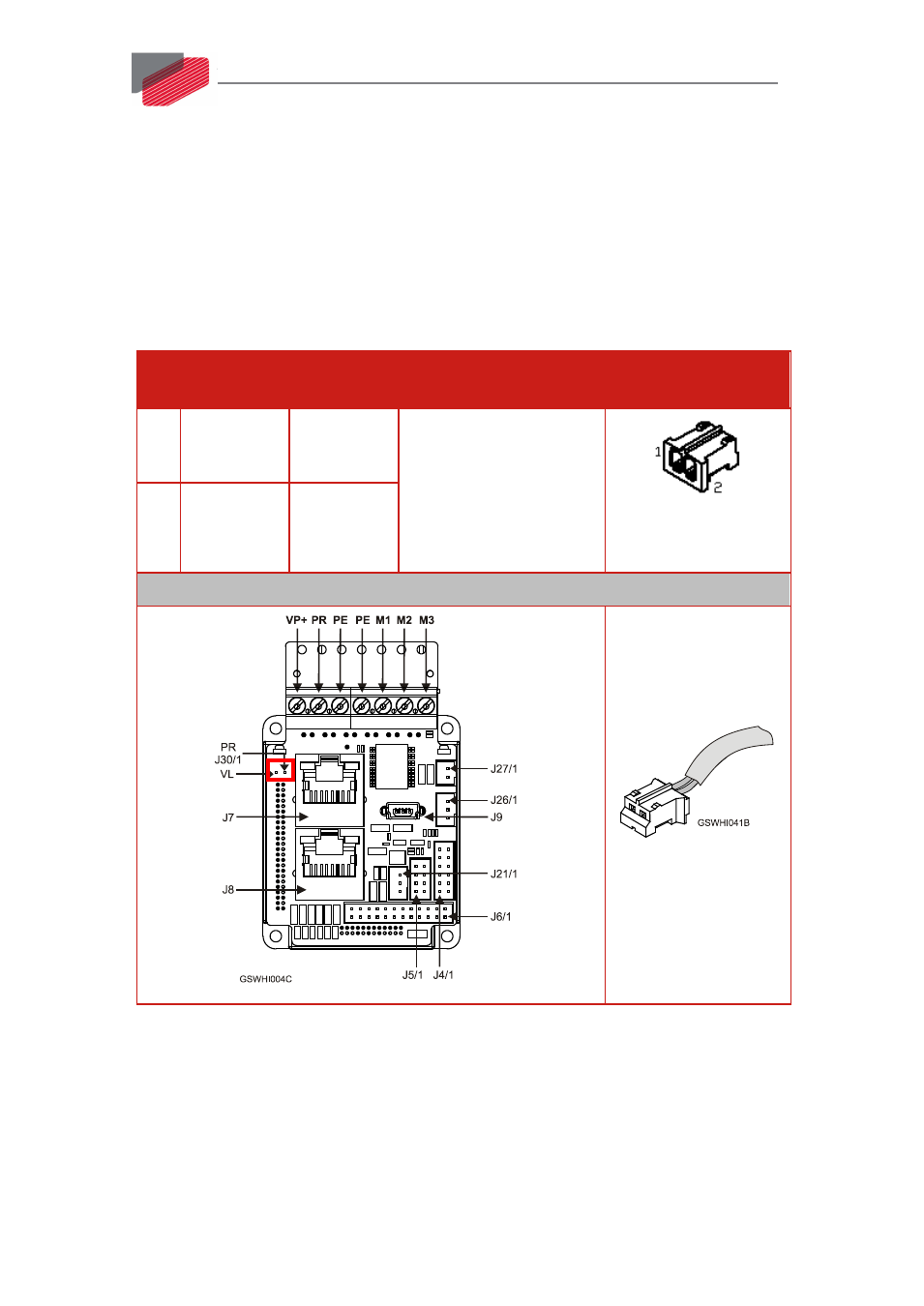

Chapter 6:

Auxiliary Pow er Cable (CBL-GVLSNS-A2)

The Auxiliary Power cable is a 24-AWG twisted-pair shielded cable. It is connected using a 2-pin
Tyco 2 mm pitch plug.

The cable is open on the end-side so that it can be connected to the power supply.

The general pinout of the auxiliary cable is as follows:

Pin

No.

Signal

Color

Twisted & Shielded

Wire

Plug

1

PR

Black

Pair

2-Pin Tyco 2 mm Pitch

Plug

2

VL+

Red

Pin Positions

2-Pin Tyco Plug
