Ethercat status indicator – ElmoMC Gold Line Digital Servo Drives-Gold Duo User Manual
Page 56
Gold Duo Installation Guide
MAN-G-DUOIG-E (Ver. 1.500)
||EtherCAT Communication Version
56
6.10.4. EtherCAT Status Indicator

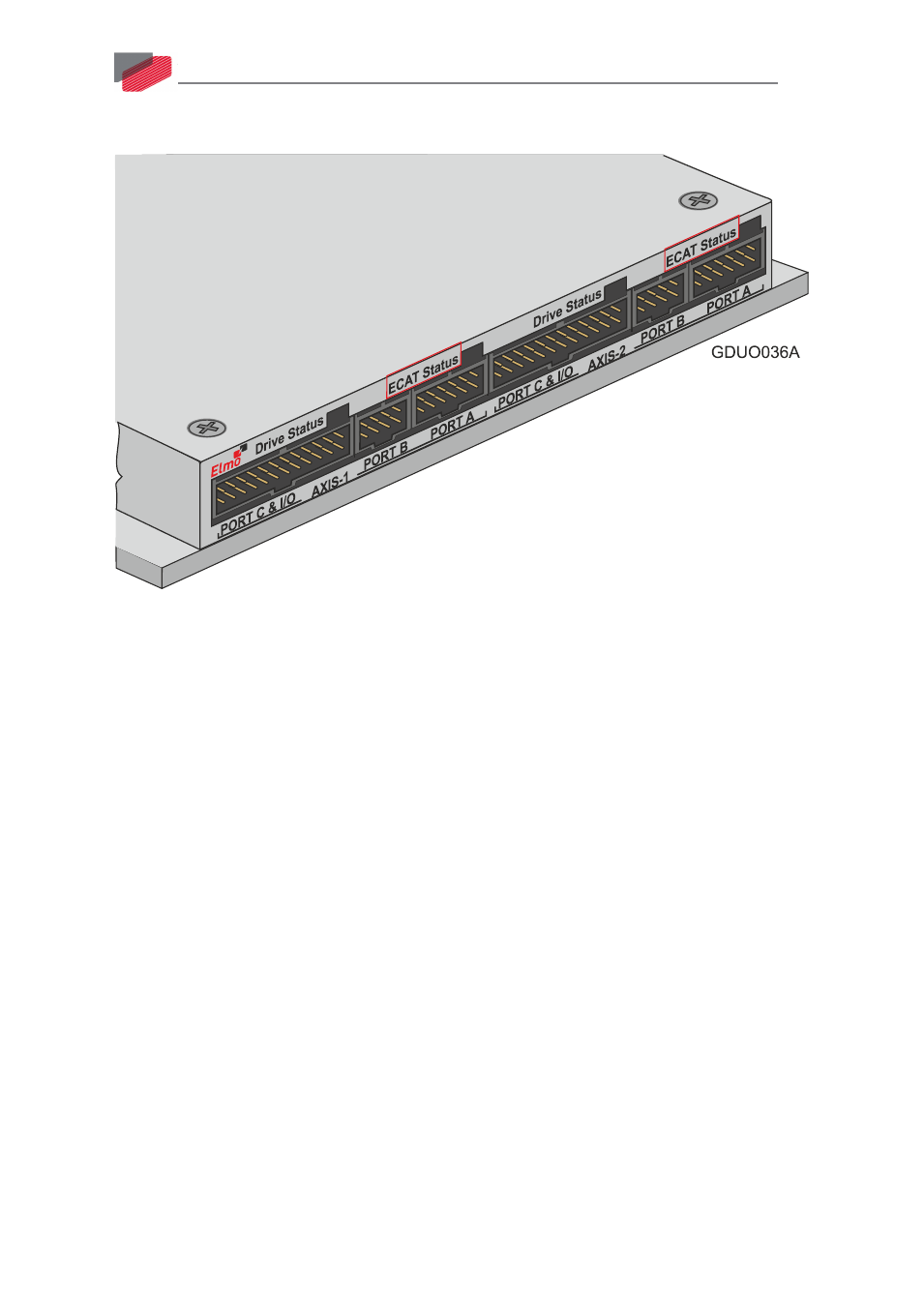

Figure 36: EtherCAT Status LED
The EtherCAT status indicator is a single red/green dual bi-colored LED that combines the green
RUN indicator and the red ERROR indicator of the EtherCAT state machine. For further details, see
the EtherCAT Application Manual.
