Elkhart Brass UBEC 1 to control an E3F or E5F actuated valve User Manual
Page 2
2) After the UBEC1 has been programmed cycle the power to it and then transfer the
program from the UBEC1 controller to the E3F or E5F actuator using the instructions on
page 62 of the manual (see transfer code 4110) and then cycle power to the actuator.
3) After step 2 is complete auto calibrate the valve per the instructions in step 2 on page
63 of the manual.

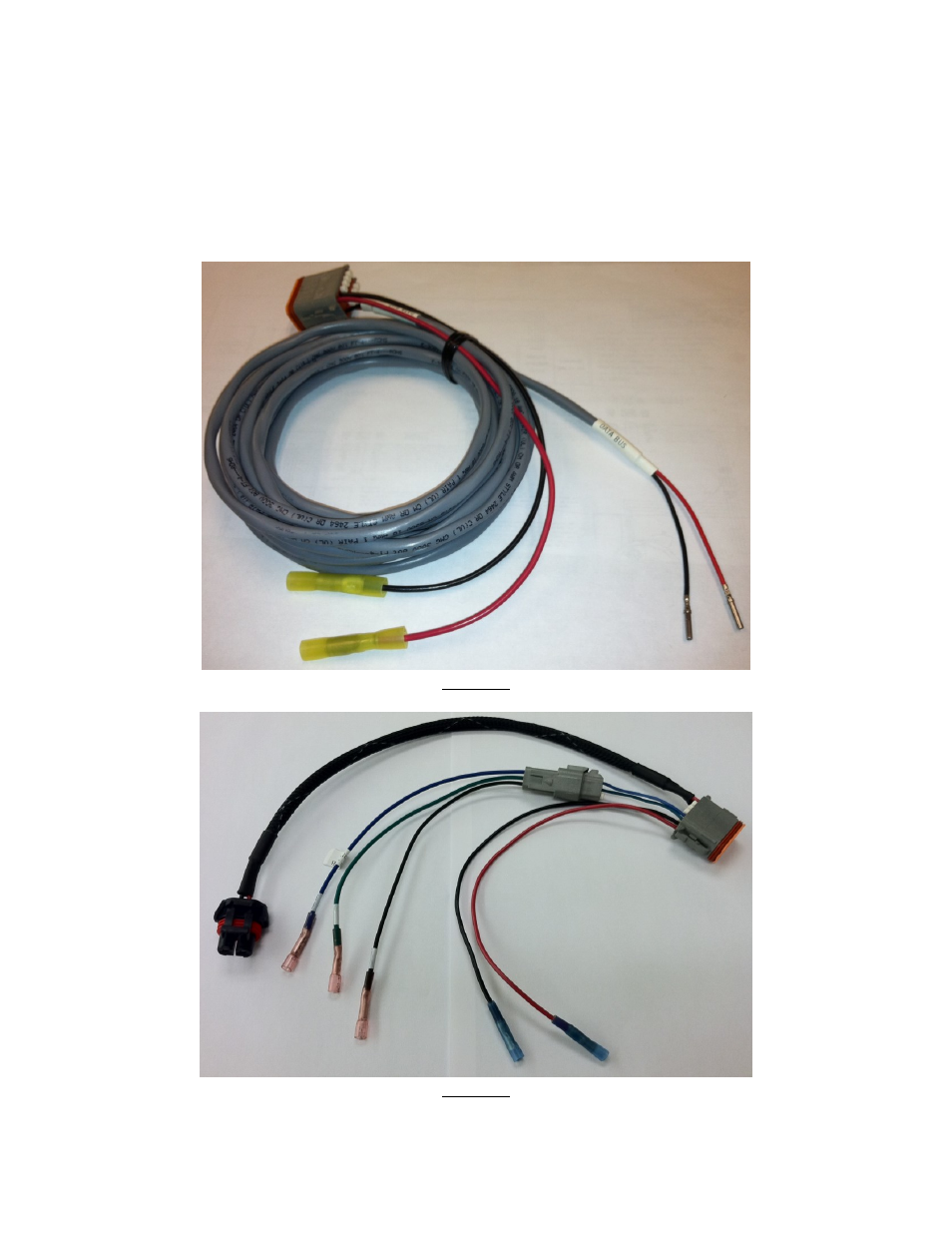

Figure 1
Figure 2
