Elkhart Brass UBEC 1C to control an E3F or E5F actuated valve User Manual
Page 2

Programming; see section V, pages 9 -13 of the instruction manual. You will need to
program the unit;
To reverse polarity. This is only necessary if the E3F or E5F is mounted on an
EB_J Jamesbury butterfly valve. If not skip to step 3.
2) After the UBEC1C has been programmed cycle the power to it and then transfer the
program from the UBEC1C controller to the E3F or E5F actuator using the instructions
in paragraph F on page 12 of the manual (see transfer code 4110) and then cycle
power to the actuator.
3) After the transfer is complete auto calibrate the valve per the instructions on page 8
of the manual.

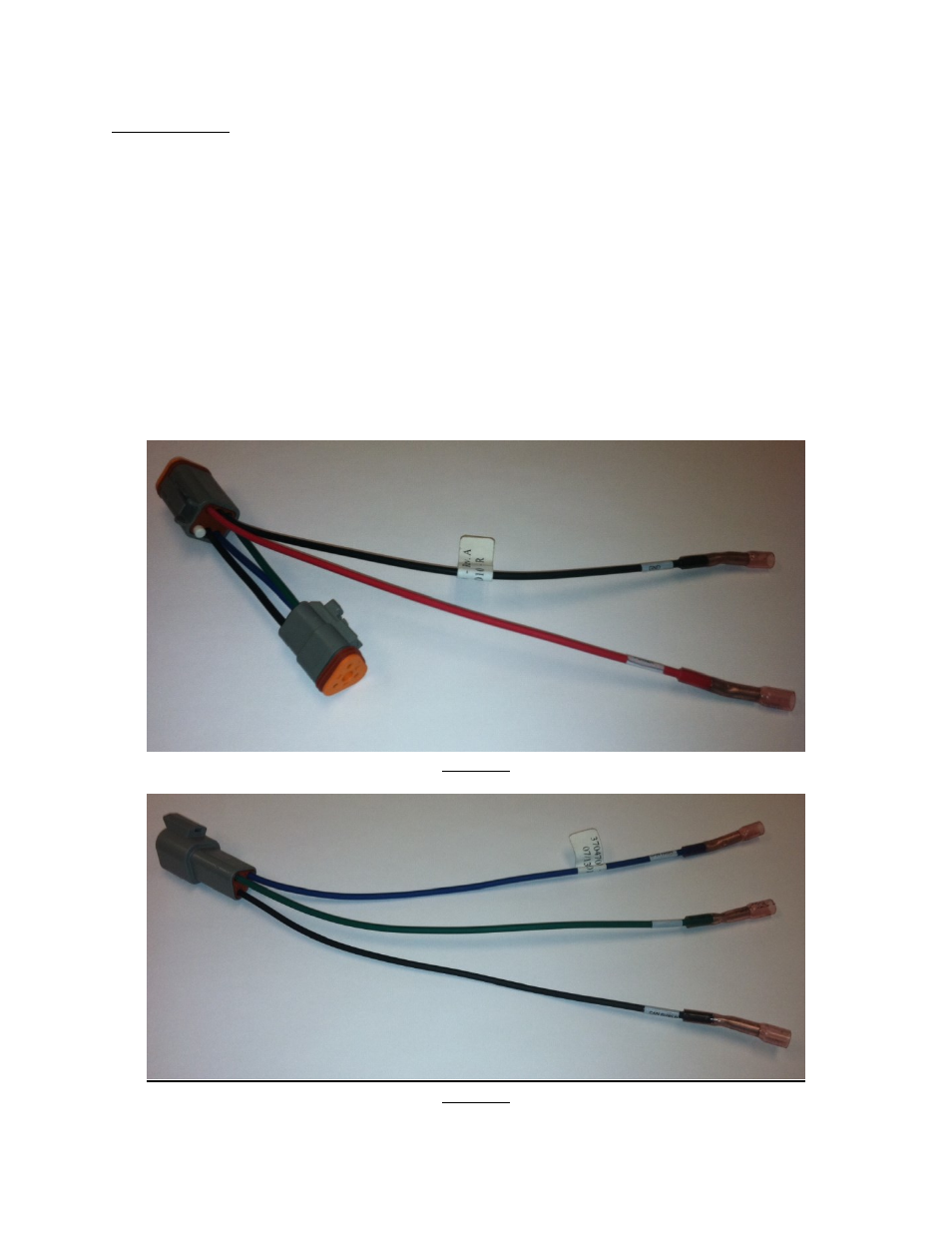

Figure 1
Figure 2
