ALIGNMENT AND CONNECTION OF THE INDICATOR HANDWHEEL
ASSEMBLY TO THE VALVE
1) If necessary, rotate the hand wheel until the Indicator Hand Wheel pointer is aligned with the “CLOSE”
position of the indicator.
2) If necessary, manually rotate the actuator shaft of the valve until the valve is in the closed position.
Making note of the orientation of the roll pin hole on the gear actuator shaft and the indicator hand wheel shaft,
the installer is responsible to fabricate a connecting shaft of appropriate length to connect the valve to the hand
wheel assembly. The supplied universal joints (ID No. 8) and two of the supplied roll pins (ID No. 9) will be
required.
3) Attach the fabricated connecting shaft to the shaft of the gear actuator using the remaining roll pin.
4) Attach the fabricated connecting shaft to the shaft of the Indicator Hand Wheel using the Clevis Pin and Clip.

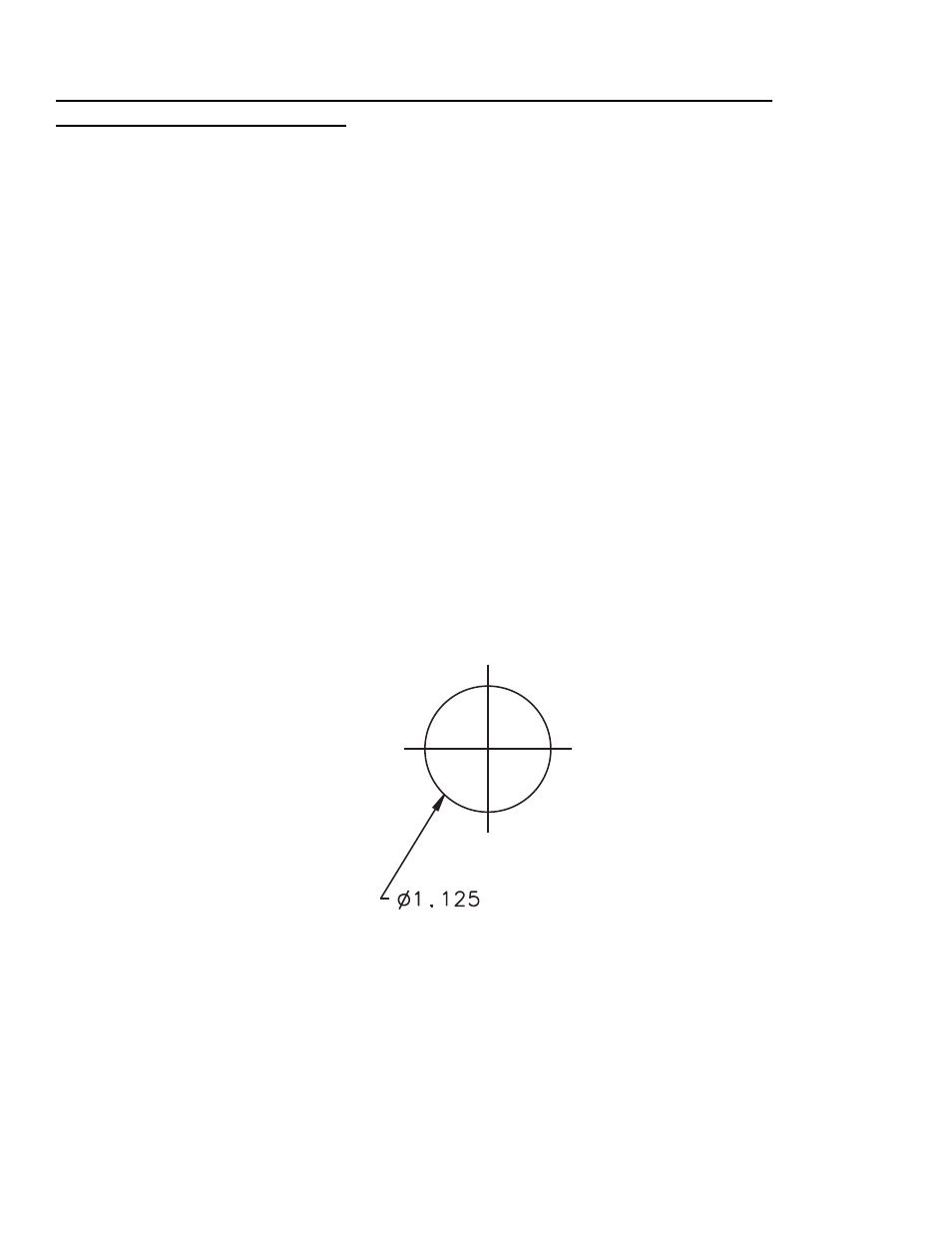

Figure 3
Installation Template
