Arbor Press or Drill Press Instruction For All
Nozzles Except SM-3 Series and 4000-01 Series
Step 1: Remove nozzle tip from nozzle body and cut existing
bumper off of nozzle tip
Step 2: See Table 1 and assemble parts as shown in Figure 3.
Step 3: Place assembled parts vertically into Arbor Press or Drill
Press and add force to drive plate to force bumper down on tip.
Step 4: Disassemble bumper replacement kit and reattach nozzle tip
to nozzle body.
Arbor Press or Drill Press Instructions For Only
SM-3 Series and 4000-01 Series
Step 1: Remove nozzle tip from nozzle body and cut existing
bumper off of nozzle tip
Step 2: Push bumper over tip of nozzle by hand.
Step 3: See Table 1 and assemble parts as shown in Figure 4.
Step 4: Place assembled parts vertically into Arbor Press or Drill
Press and add force to drive plate to force bumper down on tip.
Step 5: Disassemble bumper replacement kit and reattach nozzle tip
to nozzle body.

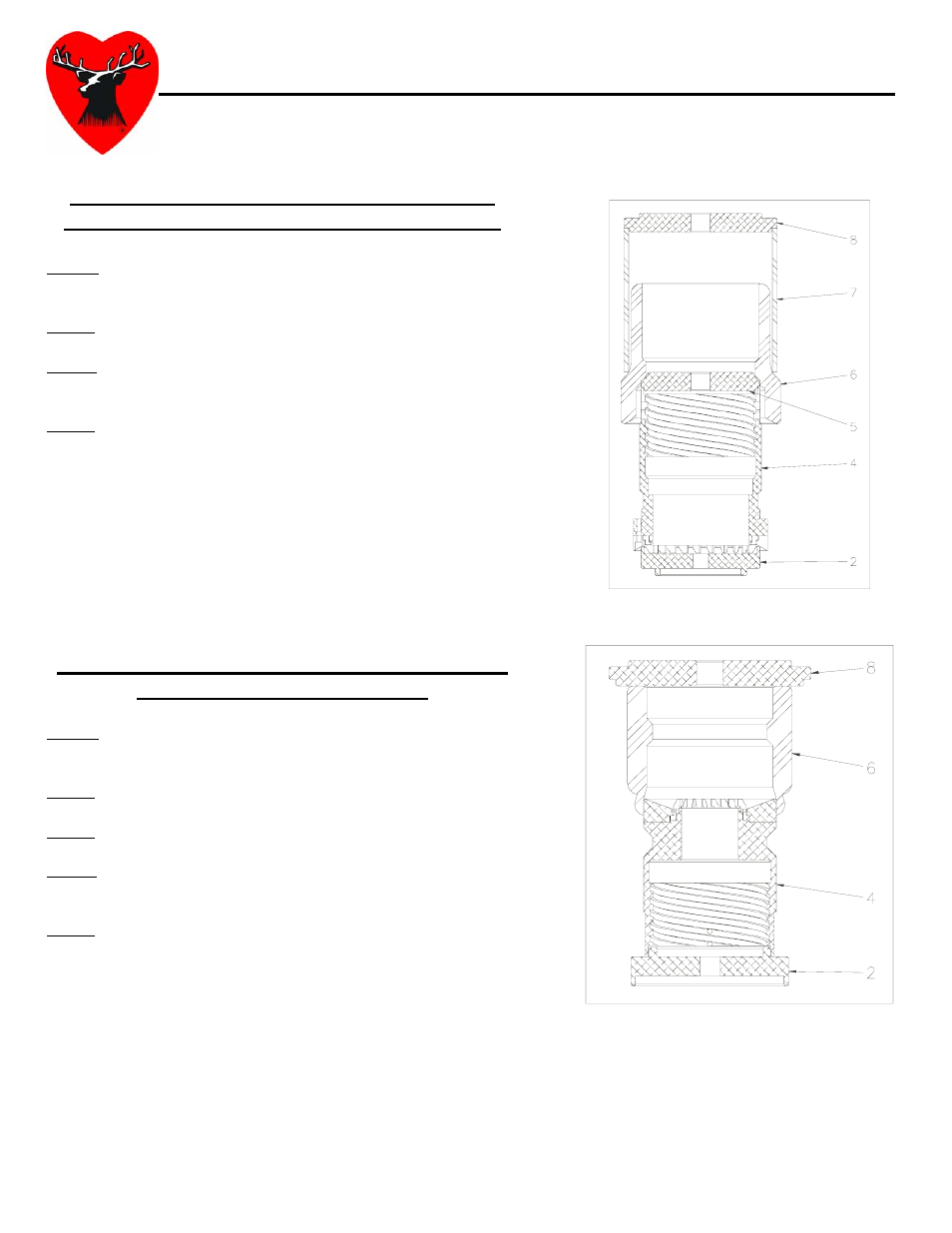

Figure 3
Arbor Press Bumper Replacement Assembly
Figure 4
SM-3 Series and 4000-01 Series
Arbor Press Bumper Replacement Assembly
