Stabilize base, 2a. b. or c – Elkhart Brass HEROPipe System Setup Guide User Manual
Page 3
2
A.
B.
or
C.

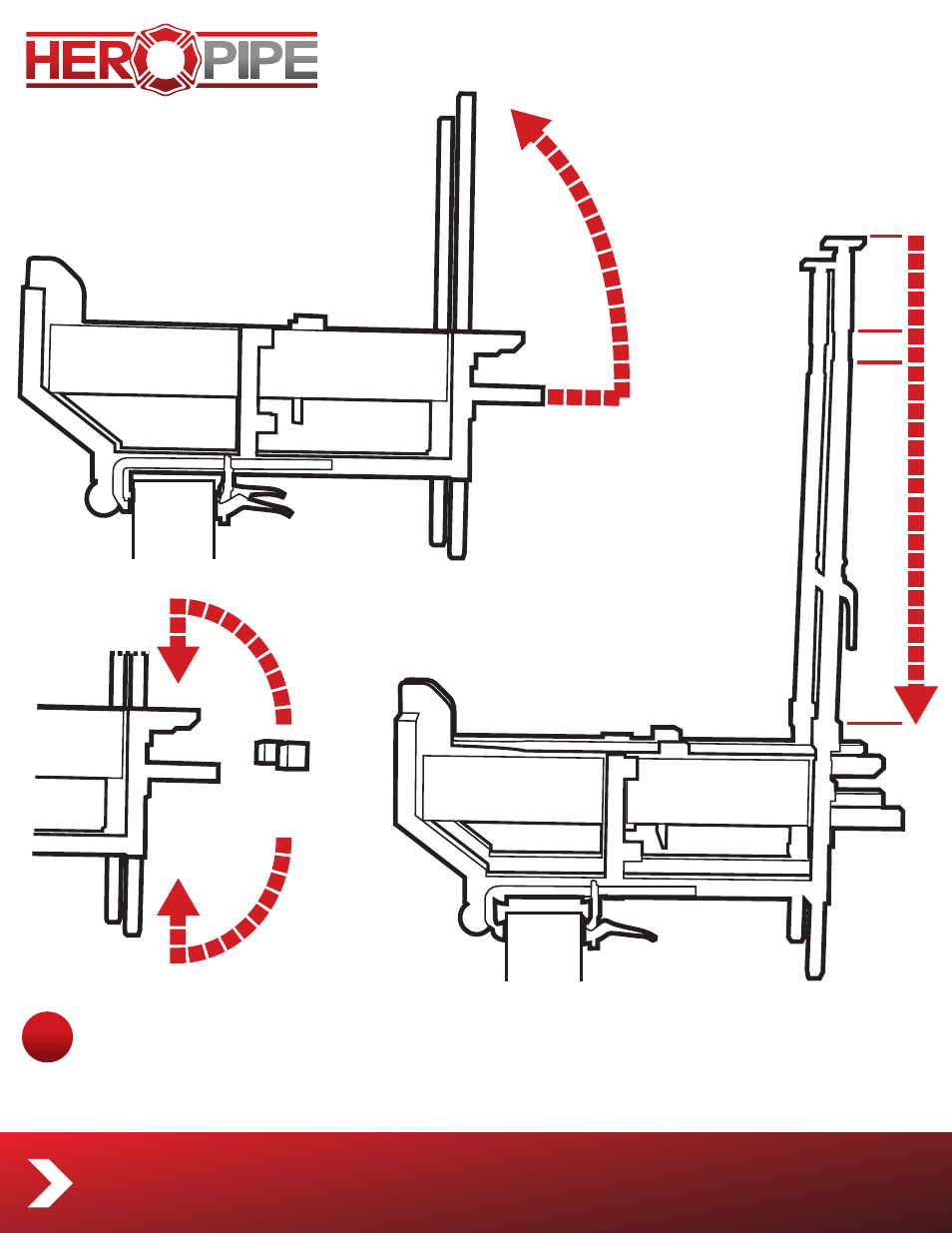

Insert the lower extensions to level the system. Check clearance and slide connector
boots over the top or bottom of the lower extension bars. Attach the hydraulic
stabilizers, and pressurize the system to stabilize between the floor & ceiling.
STABILIZE BASE
STABILIZE BASE UNIT WITH VERTICAL HYDRAULIC SYSTEM
SETUP GUIDE | page 3
