3.1 95-8600 7
AIMIng ThE CAMErA
In installations where the Model X7050 Camera is used
for monitoring the same hazardous area as a single
detector, the recommended procedure for ensuring
that the camera is correctly aligned with the detector’s
cone of vision is to use a Cone of Vision Tester (Laser
Aimer) available from Detector Electronics Corporation
(Det-Tronics ® ).
1. Using the COV tester, locate the center of the
detector’s field of view. (Refer to the instruction
manual provided with the COV tester for complete
information regarding its use.)
2. Place the COV tester on the camera. Loosen the
mounting bracket, then adjust the center of the
camera’s field of view to match the center of the
detector’s field of view.
The COV tester can also be used to locate the outside
edge of the field of view.
LEVELIng ThE CAMErA
If the image on the monitor does not appear to be level,
this can be corrected by rotating the camera module
within the xWatch Camera.
1. Remove the housing cover from the xWatch Camera.
See Figure 5.
2. Loosen the setscrew on the side of the camera
module. See Figure 7.
3. Align the two notches on the face of the module so
that they are level with the horizon or until the image
on the monitor looks level.
4. When proper orientation has been achieved,
carefully tighten the setscrew. Do not overtighten.

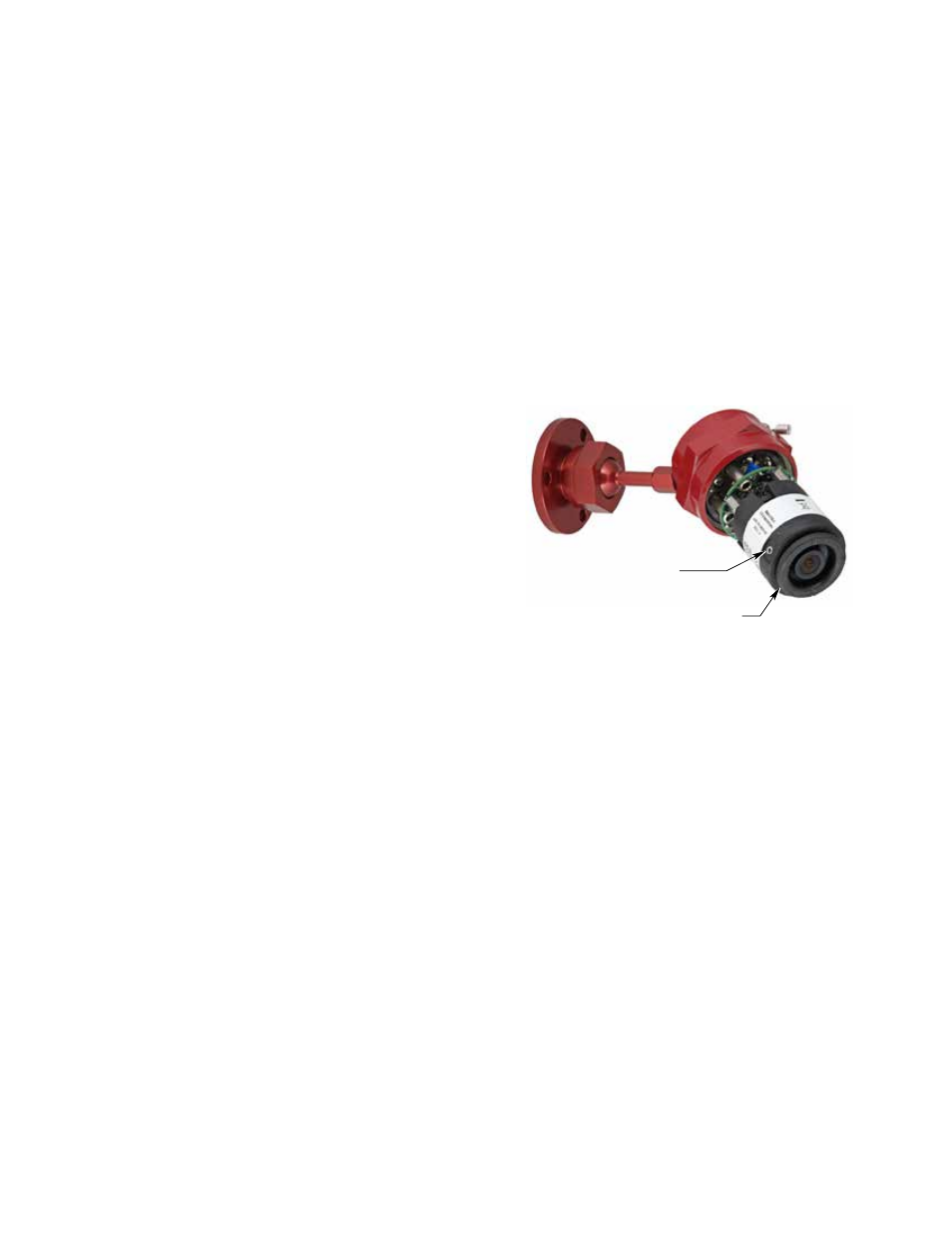

LOOSEN SETSCREW
USING 5/64 INCH ALLEN WRENCH
TURN RING TO ALIGN THE TWO NOTCHES
LEVEL WITH HORIZON OR UNTIL IMAGE IS LEVEL
A2369
Figure 7—xWatch camera module
