Despatch LND Series with Protocol Plus User Manual
Page 17
9

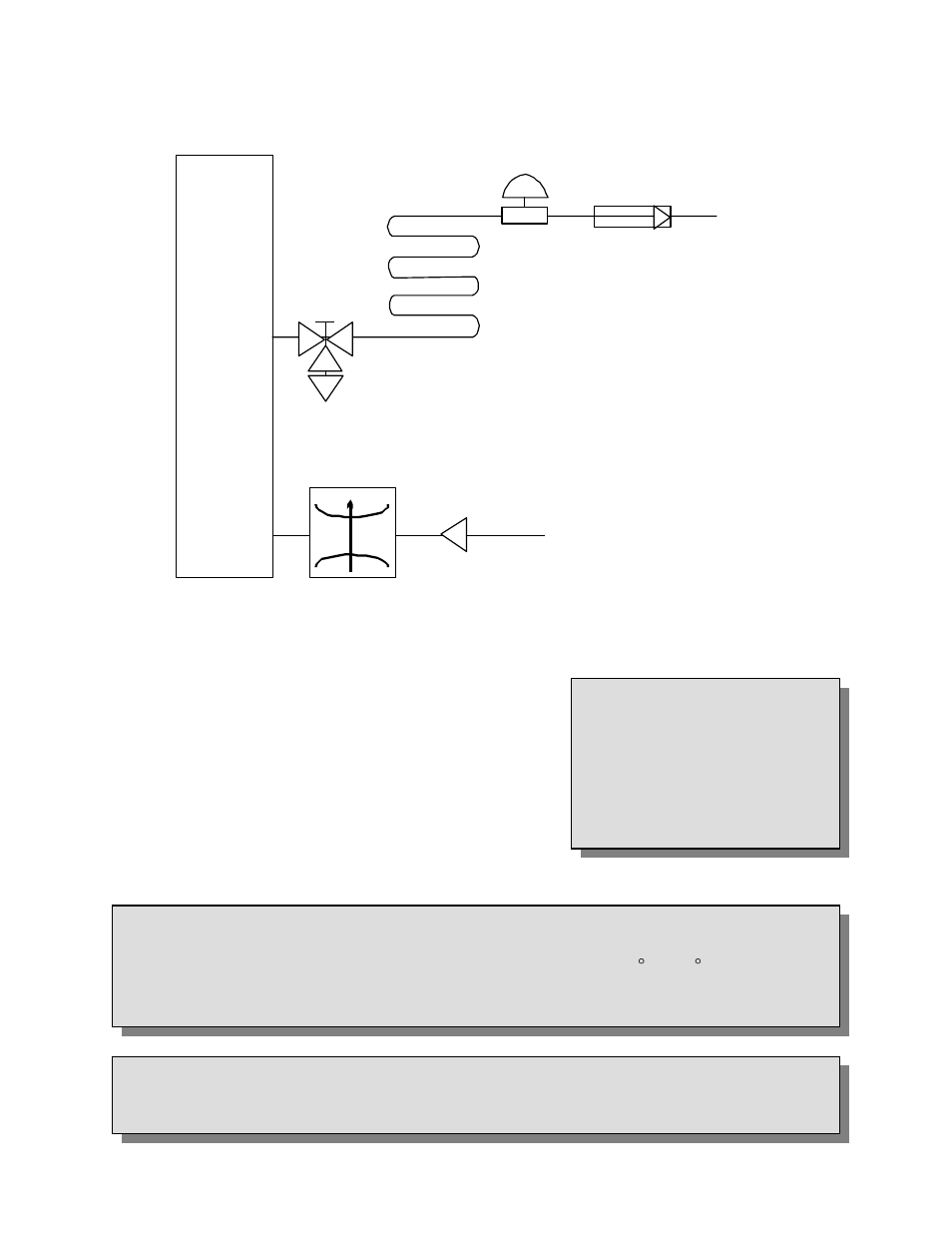

Figure 2. Recommended Water Connection on Despatch LND Series Ovens
a.
Make drain connections at the check
valve and 3-way valve.
b.
Connect cooling water supply to the
flow valve.
c.
Open 3-way valve and adjust flow
control valve for maximum flow.
d.
Check for leaks.
Flowmeter
3-way Valve
Drain
Flow Valve
Cooling Water Supply
Cooling Coil
Vacuum
Breaker
Check
Valve
Drain
WARNING:
NEVER use the water cooling
coil without a gas flow into the
chamber. Not using inlet gas
during cooldown creates a
vacuum pressure which could
cause extensive damage to the
oven.
CAUTION:
Design the drain system to prevent operator injury from high temperature or pressure
buildup. Piping must be able to withstand short periods of up to 650 F (343 C)
temperatures. Drain lines should be insulated or warning labels installed that a hazard
exists.
WARNING:
Never allow drain to be plugged as a hot oven will generate a small amount of steam when
the water is first turned on. Steam burns.
