– 5 –

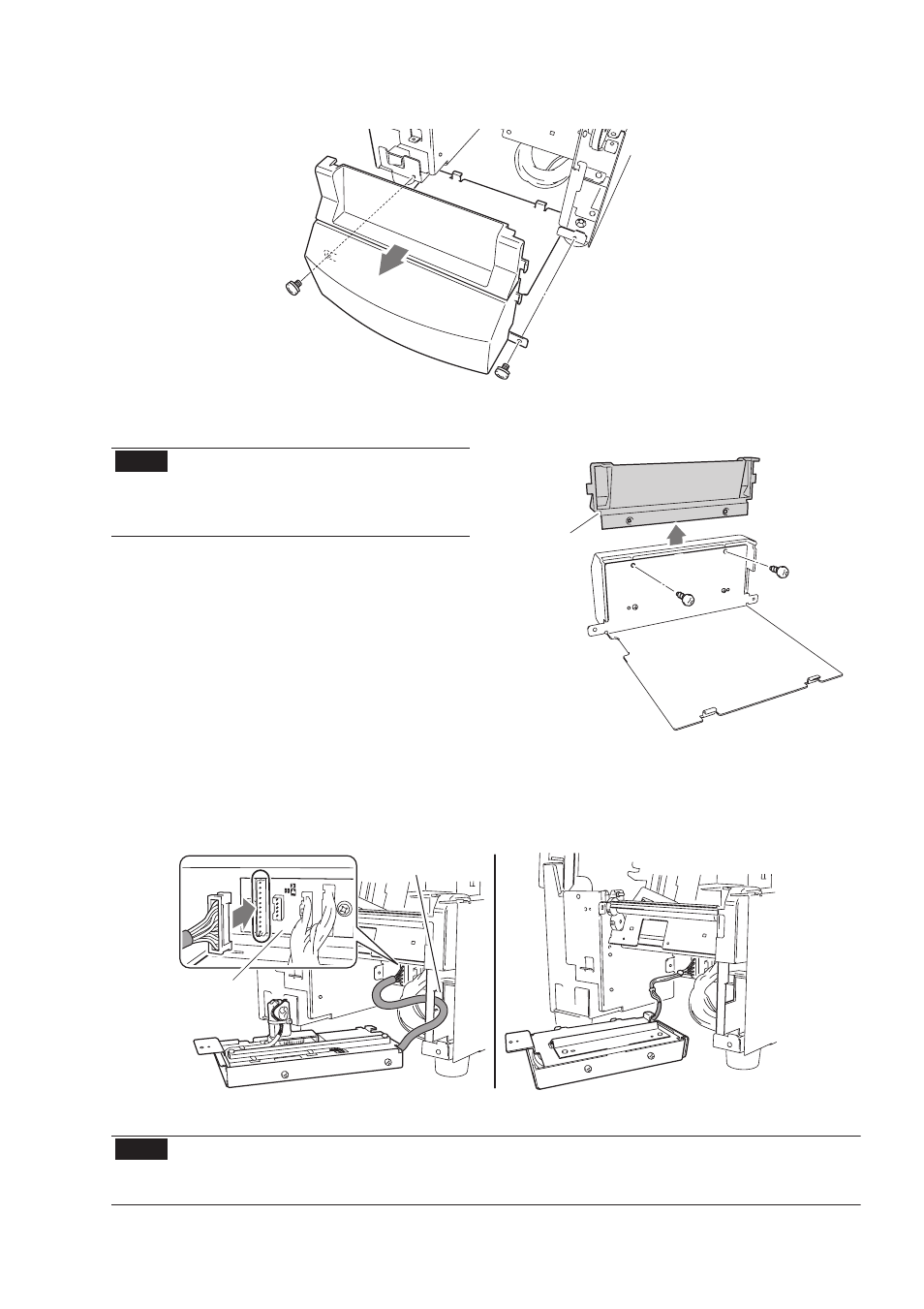

(8) Remove the front center cover. (2 screws)
(9) Remove the front cover from the front center cover that you have removed. (2 screws)
Note The front cover that you have
removed is used when the
auto-cutter unit has been
removed, so store it carefully.
(10) Attach the pulley cover (black) that you
removed at step 7 in its original position.
(11) Connect the connector of the auto-cutter unit to the relay printed circuit board as
shown in the figure.
Note If you pass the connector through in the wrong insertion direction, it cannot be
connected. Insert it after checking the direction of the connector (1 pin on the
bottom).
Relay printed
circuit board
Pass through
this hole
Front cover
