20
Parts

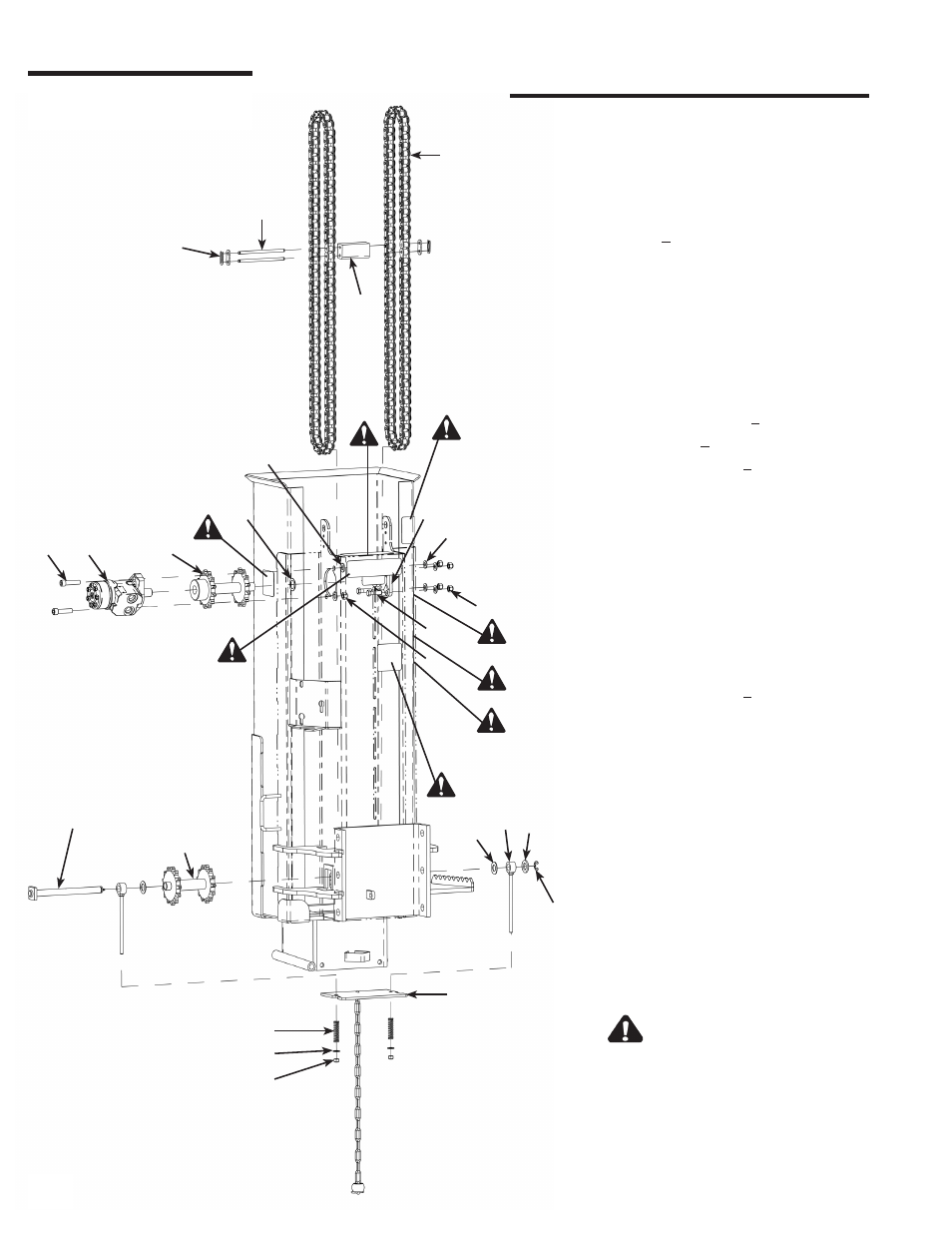

Drive Assembly
REF.
NO.
PART
NO. DESCRIPTION QTY.
1 21119 Connecting Link 2
2 21024 Chain Pin 2
3 21025 Roller Chain #80, 1" Pitch 2
4 21122 Catch Weight 1
5 21126 Socket Head Bolt
(1/2" 13 x 2")
2
6 21113 Hydraulic Motor 1
7 21114 Upper Sprocket Shaft
Assembly
1
8 21136 1" Shim 1
9 21156 1/2" Flat Washer 2
10 21043 Bearing 1
11 2489 7/16" Flat Washer 4
12 10197 Toplock Nut (7/16" 14) 4
13 21057 Bolt (7/16" 14 x 1-1/2") 4
14 10125 Toplock Nut (1/2" 13) 2
15 21040 Sprocket Shaft 1
16 21080 Lower Sprocket Shaft
Assembly
1
17 21125 Shim 2
18 21083 Tensioning Rod 2
19 10267 3/4" Flat Washer 1
20 2172 Retaining Ring 1
21 21123 Spring 2
22 2178 3/8" Flat Washer 2
23 10412 Toplock Nut (3/8" 16) 2
24 21110 Cover Assembly 1
1
2
3
4
6 7
8
14
10
11
12
13
15
16
17 18 19
20
21
22
23
24
9
5
= Safety Sign
Location
