Condux Micro Duct - Manual (Page 9)

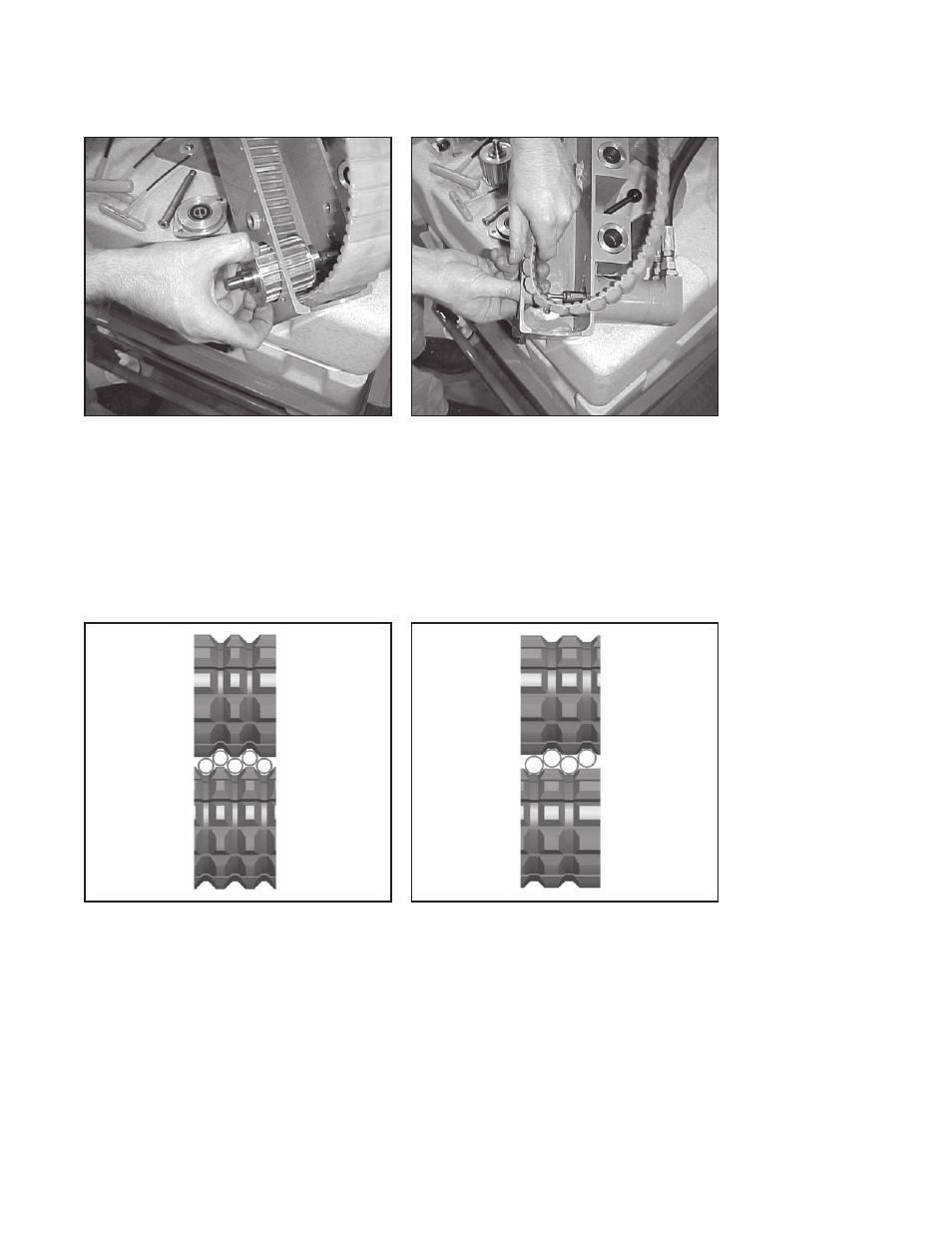

11. Slide drive sprocket out through hole (Figure 11)
12. Slide track past motor drive shaft and out (Figure 12)
B. Belt Installation Instructions - Upper and Lower Belt.
Verify which Micro Duct Kit is being installed and then review correct belt
configuration from diagram below. Left View (Figure 13) is for the 10/8
Micro Duct and the Right view (Figure 14) is for the 12/10 and the 12.7
Micro Duct. NOTE upper and lower belt orientation.
9
Figure 13
Figure 11 Figure 12
Figure 14
