8

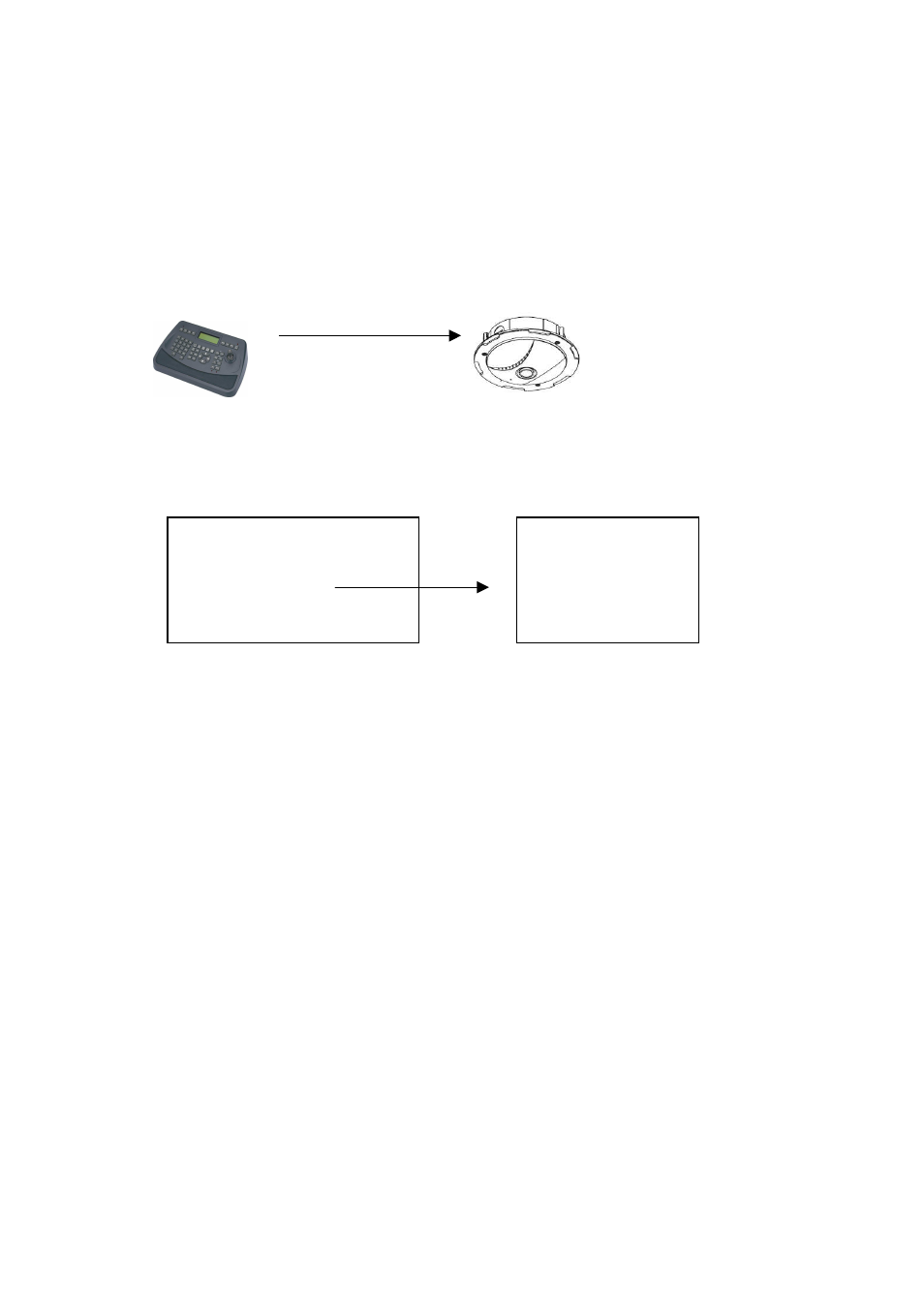

RS485 connection with keyboard
The 360° camera is set in protocol PELCO-D and baud rate 9600.
User can use keyboard, DVR or any RS485 device to control 360° camera.
Ex.: Keyboard
How to setup connection between keyboard and camera
Press MENU button of keyboard for function setup
Using direction key to select system menu and then press ENTER to get in.
Follow below setting and ready to control camera with command.
1. Keyboard ID Setup: press ENT press 1 press ENT ESC
2. Master Setup: press ENT press 1 press ENT ESC
3. CAM Type Setup: press ENT choose protocol 5: PELCO-D press ENT
ESC
4. Baud Rate Setup: press ENT choose Baud Rate 1: 9600 press ENT
ESC
5. Press “ESC” to exit menu.
Note: if you are using others keyboard brand, please make sure the protocol
setting is on PELCO-D and baud rate 9600 and the control command is same
as usual.
Command:
the default screen mode is 5. It displays in 5 windows (quad + 360° view)
Camera 1 ~ 4 is a virtual split from 360° screen. U ser can control camera 1~4
CAM : 001< MUX : 00 DV : 00
Setup Menu
>. System Menu
CAM Menu
1. Keyboard ID Setup
2. Master Setup
3. CAM Type setup.
4. Baud Rate Setup
RS 485 port 1
RJ 11 pin 3 +, pin --
RS 485 port
RS 485 cable
Purple + positive
White - negative
