Comelit MT HDCAM360A User Manual

Page 5

background image

5

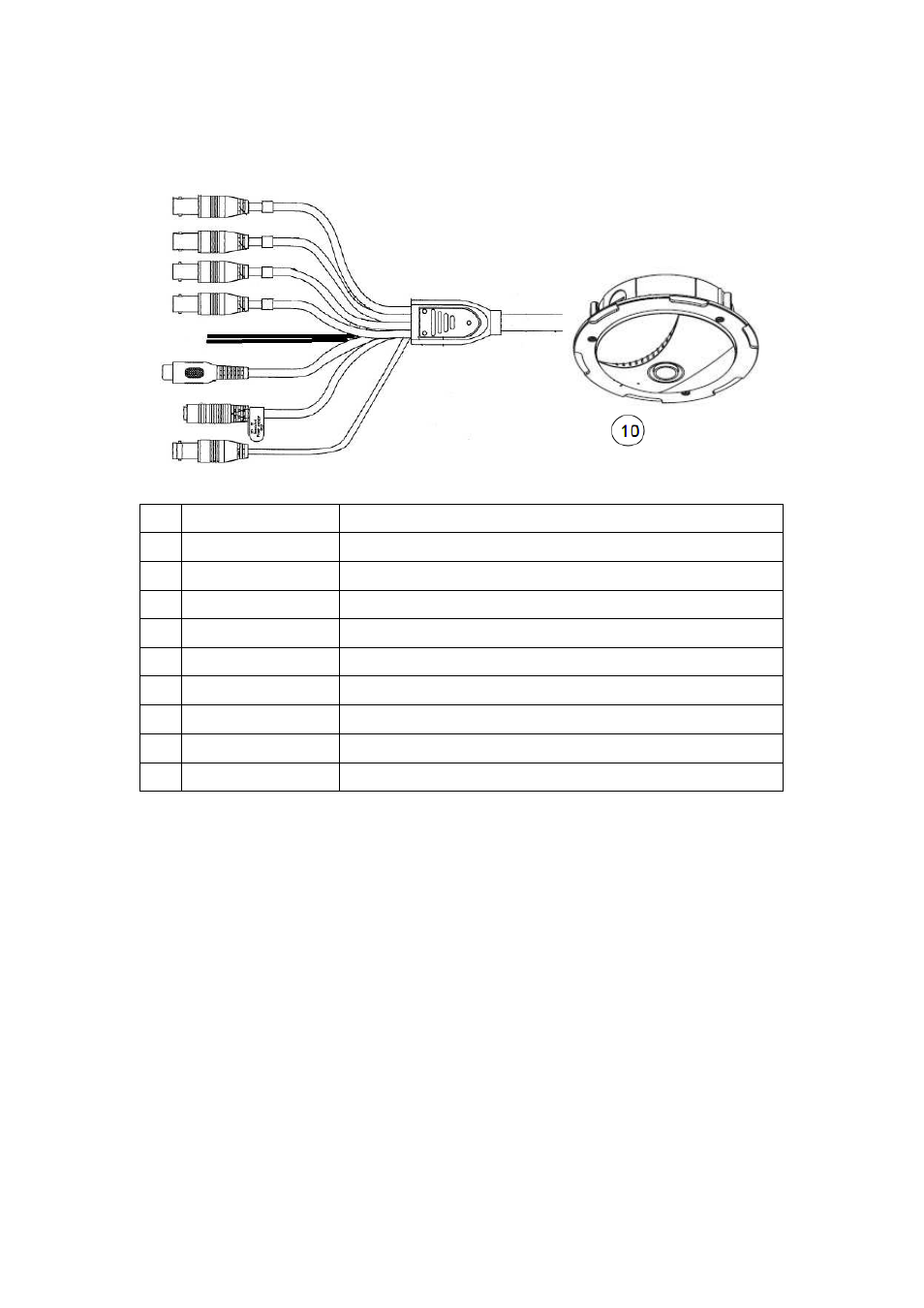

Connections:

1

label 1

Camera 1 CVBS (BNC) output

2

label 2

Camera 2 CVBS (BNC) output

3

label 3

Camera 3 CVBS (BNC) output

4

label 4

Camera 4 CVBS (BNC) output

5

RS485 cable

Purple + / White -

6

RCA cable

Audio output to speaker or DVR audio input

7

Power cable

12 VDC jack

8

SDI cable

SDI connector output (BNC gold color)

9

HDMI connector

HDMI output to connect to a HDMI monitor

10 Microphone

Pinhole type microphone built in

①
①
①
①

①

①
①

①

①
