2 . 2 . 2 . 2 . 2 . P r i m a r y / S e c o n d a r y I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E , P r i m a r y / S e c o n d a r y I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E , P r i m a r y / S e c o n d a r y I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E , P r i m a r y / S e c o n d a r y I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E , P r i m a r y / S e c o n d a r y I D E c o n n e c t o r ( 4 0 - 1 p i n P R I _ I D E ,
S E C _ I D E )
S E C _ I D E ) S E C _ I D E ) S E C _ I D E ) S E C _ I D E )
These connectors are for Ultra DMA 133/100/66 signal cables. The
Ultra DMA 133/100/66 signal cable has three connectors: a blue
connector for the primary IDE connector on the motherboard, a black
connector for an Ultra DMA 100/66 IDE slave device (optical drive/
hard disk drive), and a gray connector for an Ultra DMA 100/66 IDE
master device (hard disk drive). If you install two hard disk drives, you
must configure the second drive as a slave device by setting its
jumper accordingly. Refer to the hard disk documentation for the
jumper settings.
P5VDC-MX
®

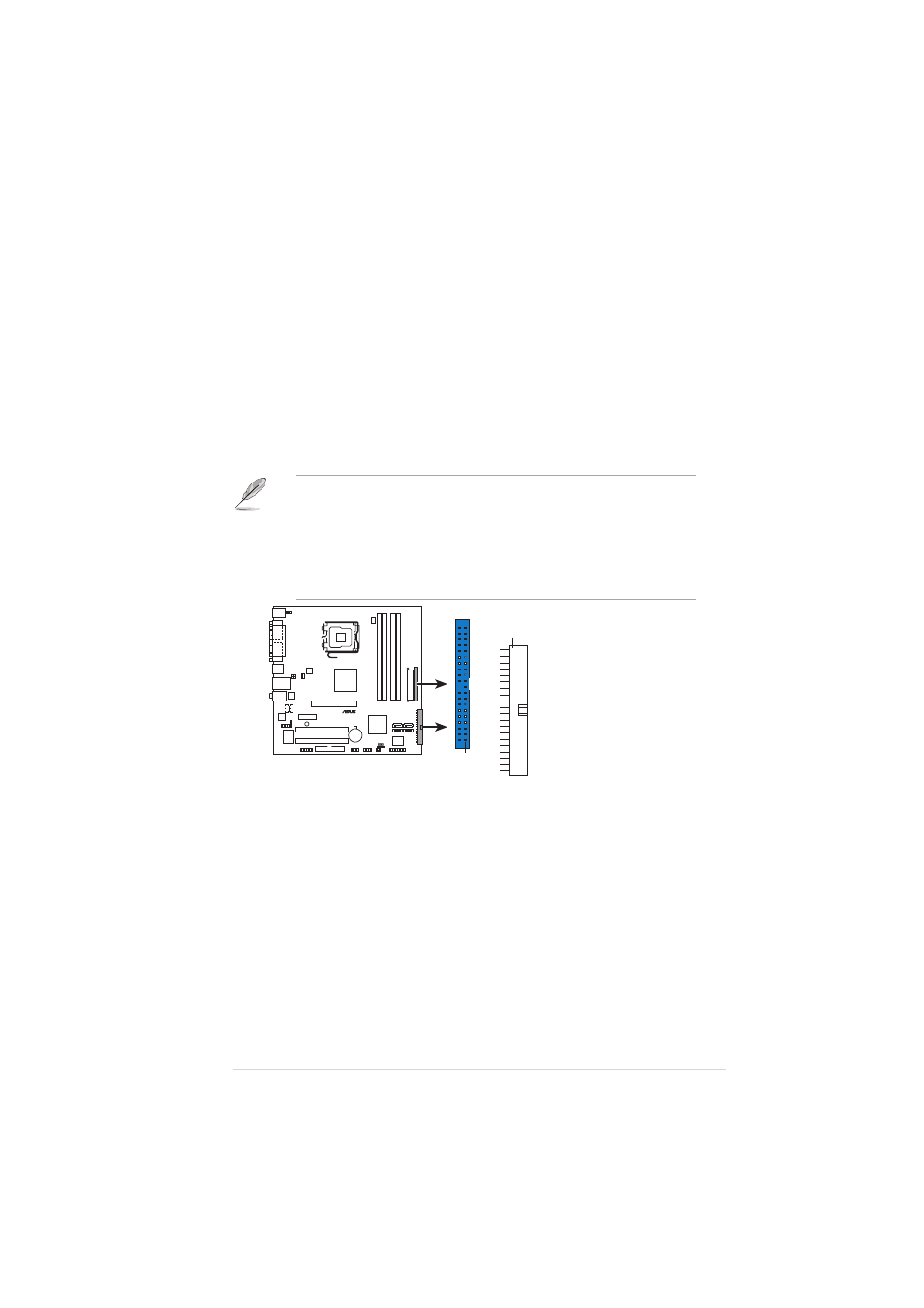

P5VDC-MX IDE connectors
NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.
PIN 1
PRI_IDE
SEC_IDE
PIN 1
1. Follow the hard disk drive documentation when setting the device in
master or slave mode.
2. Pin 20 on each IDE connector is removed to match the covered hole
on the UltraATA cable connector. This prevents incorrect orientation
when you connect the cables.
3. The hole near the blue connector on the UltraATA cable is
intentional.
