BIOSTAR Motherboard
1
2
14
13

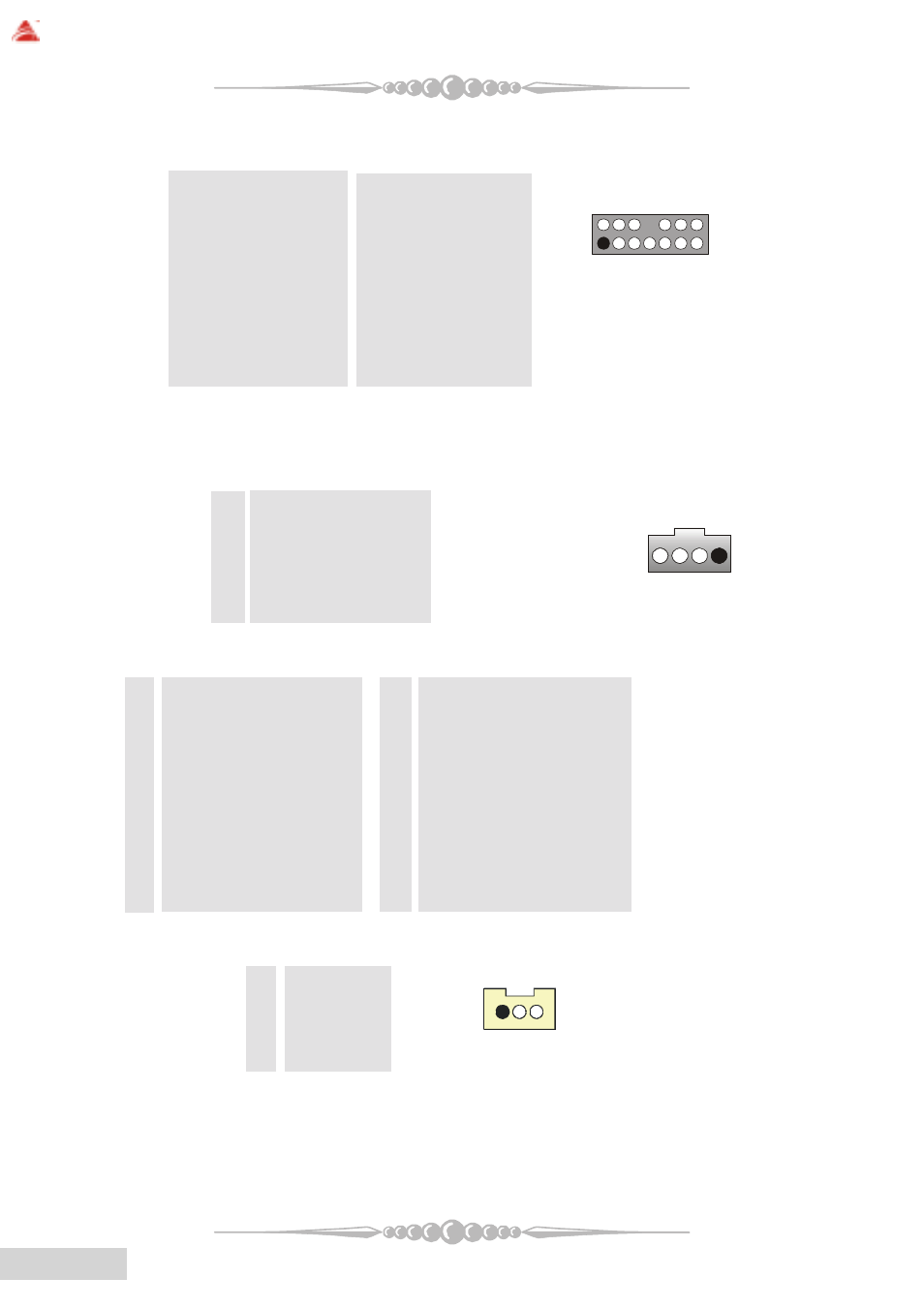

(16) Front Panel Audio Header: JAUDIO1
The connector allows you to connect to the front panel audio.
Pin
Assignment
Pin
Assignment
1
Mic In
2
Ground
3
Mic Power
4
Audio Power
5
RT Line Out
6
RT Line Out
7
Reserved
8
Key
9
LFT Line Out
10
LFT Line Out
11
RT Line In
12
RT Line In
13
LFT Line In
14
LFT Line In
(17) CD-ROM Audio-In Header: JCDIN1
This header allows you to receive stereo audio input from sound sources, such
as CD-ROM, TV Tuner, MPEG card, etc.
(18) Game Header: JGAME1
(19) Wake On LAN Header: JWOL1
1
+5V
2
+5V
3 Joystick B Button 1 4
Joystick A Button 1
5 Joystick B Coordinate X 6 Joystick A Coordinate X
7
MIDI Output 8
Ground
9 Joystick B Coordinate Y 10
Ground
11 Joystick B Button 2
12 Joystick A Coordinate Y
13
MIDI Input 14
Joystick A Button 2
15
NA
16
+5V
Pin Assignment Pin Assignment
JWOL1
1
Pin Assignment
1
+5V_SB
2
Ground
3
Wake up
Pin Assignment
1
Left Channel Input
2
Ground
3
Ground
4 Right Channel Input
1
4
