chiliGREEN K8VHA Pro - Manual (Page 17)

13 13 13 13 13
English English English English English
BIOSTAR Motherboard
1
2
9
10
1
1 0
11
20
+5V
10 +12V 20 +5V

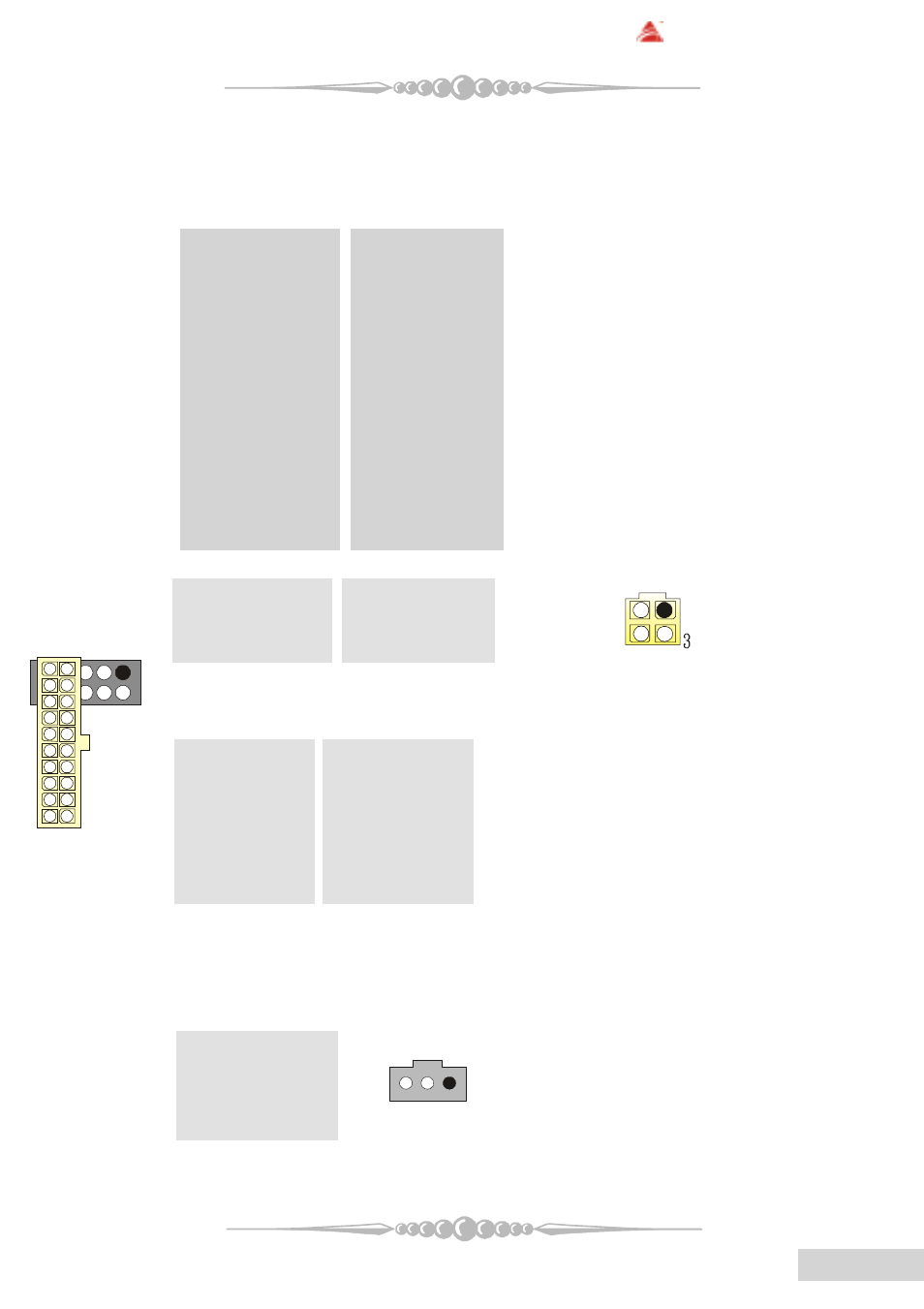

(13) Power Connectors: JATXPWR1/ JATXPWR2
The motherboard supports ATX power supply for the power system. Before
installing the power supply connector, please make sure that all components are
installed properly.
PIN Assignment PIN Assignment
1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3 Ground 13 Ground
4 +5V 14 PS_ON
5 Ground 15 Ground
6 +5V 16 Ground
7 Ground 17 Ground
8 PW_OK 18 -5V
9 Standby Voltage 19 +5V
PIN Assignment PIN Assignment
1 +12V 3 Ground
2 +12V 4 Ground
(14) Front 1394 Header: J1394B1
Pin Assignment Pin Assignment
1 A1+ 2 A1-
3 Ground 4 Ground
5 B1+ 6 B1-
7 +12V 8 +12V
9 KEY 10 NA
(15) Digital Audio Connector: SPDIF_OUT
The connector is used to connect SPDIF (Sony & Philips Digital Interconnect
Format) interface for digital audio transmission.
Pin Assignment
1
+5V
2 SPDIF_OUT
3 Ground
2
4
1
