Uninstalling the CPU heatsink and fan

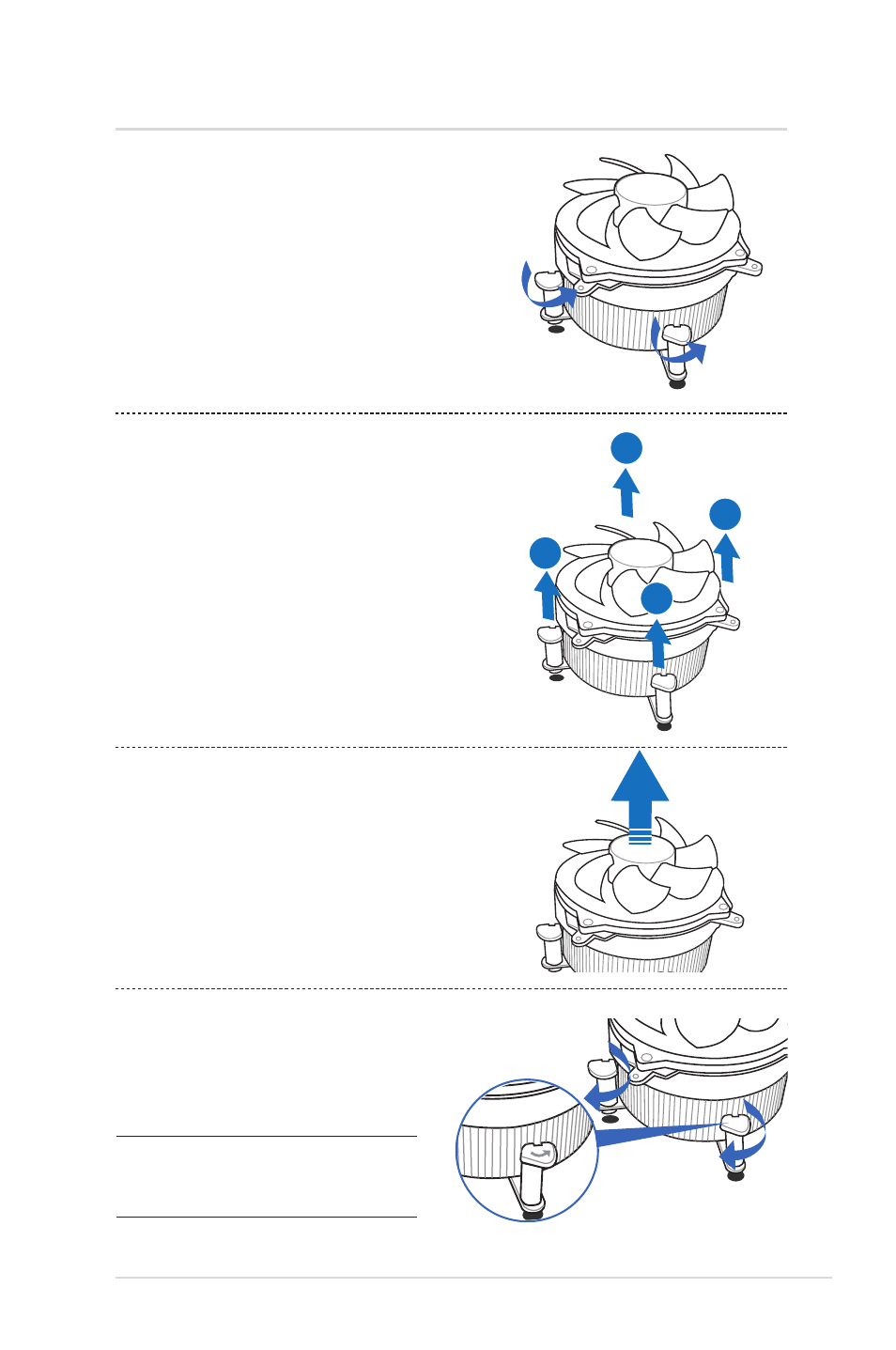

3. Pull up two fasteners at a time in a diagonal sequence to disengage
the heatsink and fan assembly from the motherboard.
A
A
B
B
4. Remove the heatsink and fan assembly from the motherboard.
5. Rotate each fastener clockwise to reset the
orientation.
NOTE: The narrow end of the
groove should point outward after
resetting.
1. Disconnect the CPU fan cable from the connector on the
motherboard.
2. Rotate each fastener counterclockwise.
3 Central Processing Unit (CPU)
