3.Front Key Operation

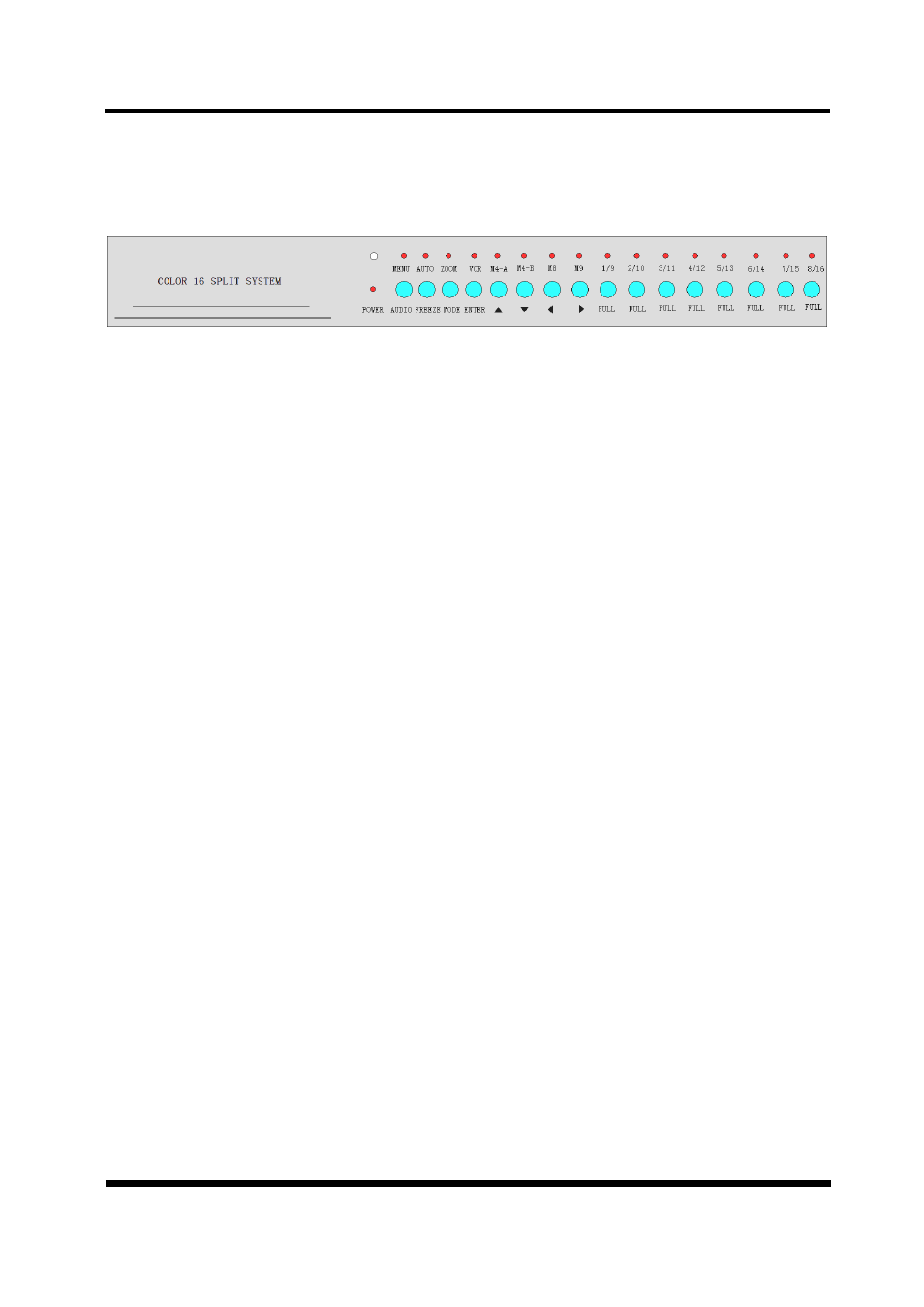

16 Split system front panel
Note: (*L)
– Press key continuously more than one second to enter menu
options.
(**S)
– Press key less than one second to enter menu options.
⑴ MENU (*L) : Enter or Exit main menu mode.
AUDIO (**S) : switch audio channel or turn off audio
⑵ AUTO (*L) : Auto channel switch ON/OFF
FREEZE (**S)
：Press it to freeze/un-freeze display windows.
⑶ ZOOM (*L) : Enter or exit ZOOM display mode.
MODE (**S) : Enter 16 Split ,picture in picture and Dual Split mode.
⑷ VCR (*L) : Enter Playback function
ENTER (**S) : Enter menu setup
⑸ M4-A / ▲ (*L) : Enter or Exit PTZ control function
M4-A
/ ▲ (**S) : Master QUAD display / up direction button
⑹ M4-B / ▼(**S) : Slave QUAD display / down direction button/switch
channel for PTZ controlling
⑺ M8/◄ (**S) : 8 Split display / left direction button
⑻ M9/► (**S) : 9 Split display / right direction button
⑼
1/9 / FULL : Channel 1 ( channel 9) display
⑽
2/10 / FULL : Channel 2 ( channel 10) display
