9
MAINTENANCE
CASTERS
Some cabinets may have caster bearings that are equipped with
Zerk grease fittings so that they may be easily lubricated with a
grease gun. Lubricate bearings at least once every six months.
Lubrication will be required more often if cabinet is cleaned with a
hot water or steam cleaning system. Casters with special sealed
bearings are recommended for frequent cart wash or steam clean-
ing systems.
LATCHES & HINGES
Make sure all joints remain sealed and door latches do not stick. If
necessary, use WD-40, silicone spray, graphite or other commer-
cial lubricants for aluminum products, to keep door latches &
hinges from sticking. Do not use oil.
FOR CABINETS WITH PERIMETER BUMPERS
Vinyl which has been dislodged from the channel due to severe
bumping or scraping can be pried back into place with a common
screwdriver. CAUTION:
Do not move cabinet
unless door is se-
curely closed. Serious dam-
age to hinges and door may
result if bumped into tables,
walls, or other equipment when
the doors are open.
9

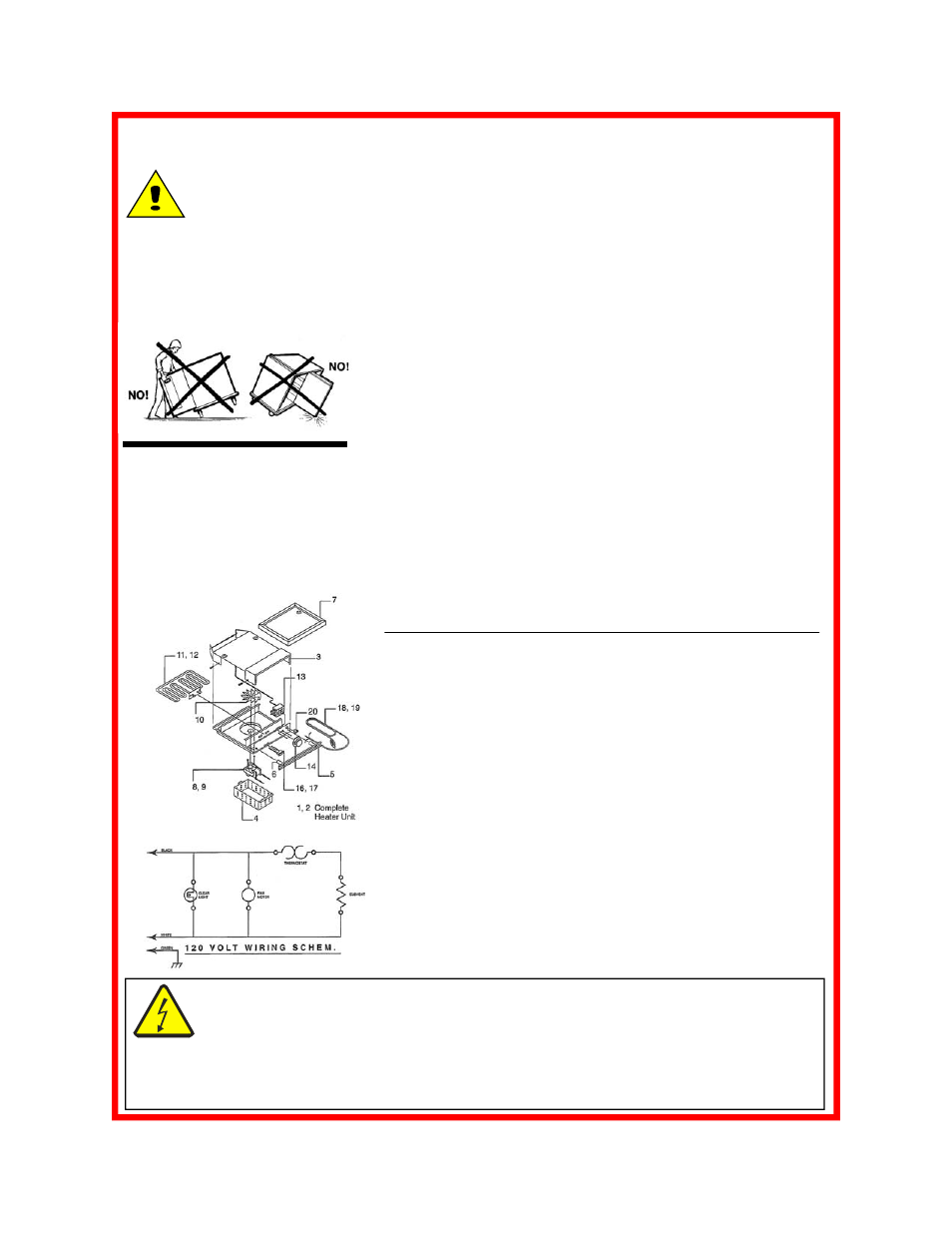

REPLACEMENT PARTS & WIRING DIAGRAM
CAUTION: Use only (OEM) original equipment manufacturer replacement parts. Using unauthor-
ized parts may cause serious injury or damage to the cabinet. Replacement parts should be in-
stalled by a qualified service technician.
Contact Carter-Hoffmann with your model and serial number for replacement parts.
Call: 800-323-9793 or email: [email protected]
FH100 HEATER COMPONENTS 120, 1500W, 13A
Item Part
Number Description
1 FH100-000A FH-100 (heater unit 120 volts)
2 FH100-001A FH-100 (heater unit 220 volts)
3 16503-6006 Element cover
4 16501-0760 Motor cover
5 16501-1103 Aluminum handle
6 18617-0850 Handle spacer
7 11270-2010 Water pan
8 18603-0025 Fan motor 120 volts
9 18603-0095 Fan motor 220 volts
10 18603-5017 Fan blade
11 18612-0368 Heat element 120 volts, 1500 watts
12 18612-0190 Heat element 120 volts, 1700 watts
13 18600-0010 Thermostat
14 18608-0010 Thermostat knob
16 18601-0070 Indicating light 120 volt
17 18601-0080 Indicating light 220 volt
18 18605-0010 120 volt power cord
19 18605-0015 220 volt power cord
20 18617-0010 5/8” strain relief grommet
21 18617-0100 5/8” snap bushing
