Basic Operation
5 MC16-GB-C – 1.02
2 Basic Operation

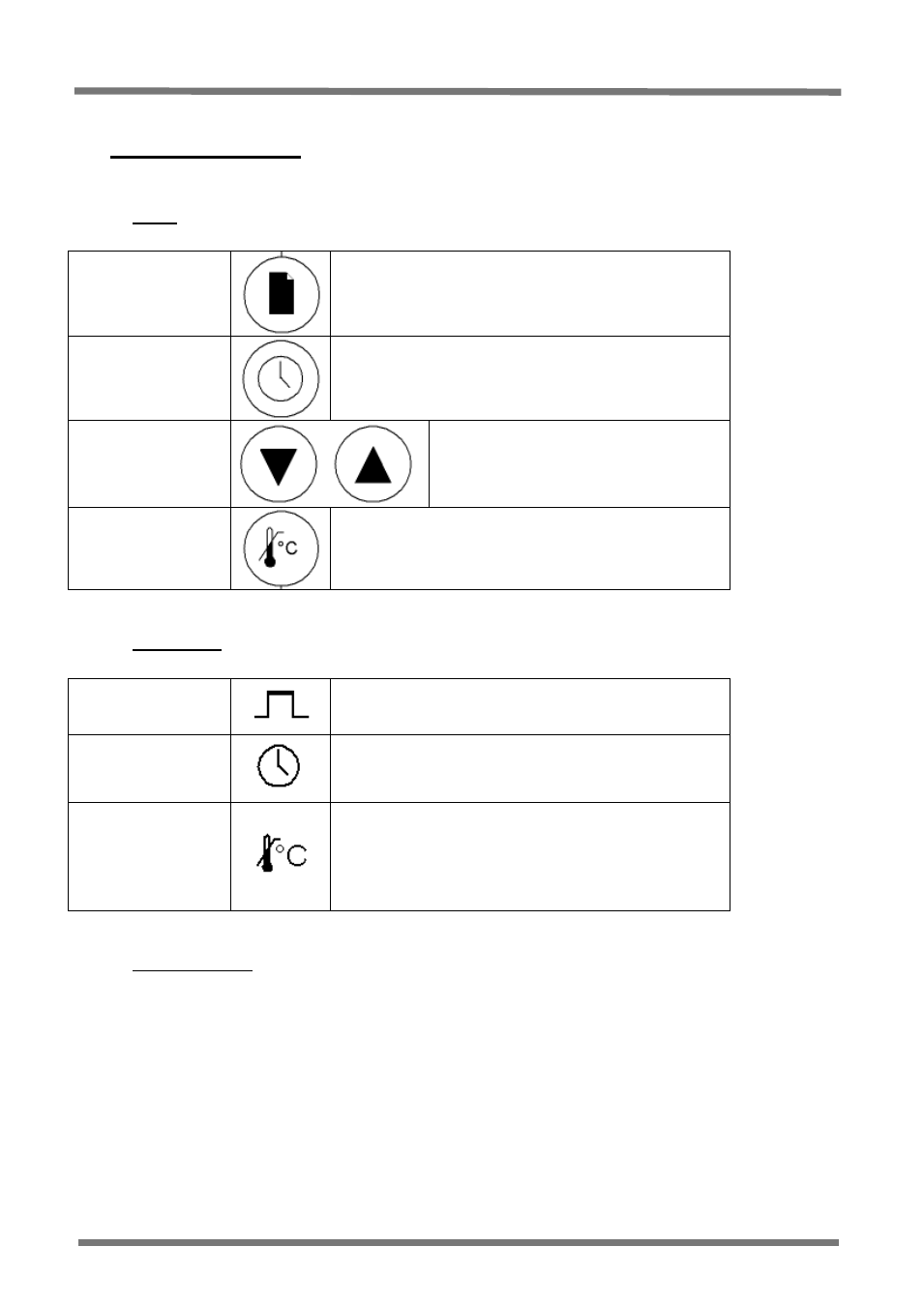

2.1 Keys
Page Key
The Page key is used to scroll through the
parameters and switch between menus.
Timer Key
The Timer key is used to start, view, pause
and reset the timer.
Arrow Keys
The Arrow keys are used to adjust
the value of the selected
parameter and pause the output
power.
Overtemperature
Key
The Overtemperature key is used to access
the Overtemperature menu.
Note: Overtemperature is an option
2.2 Indicators
Output Indicator
The Output indicator shows when the
controller is sending power to the elements.
Timer Indicator
The Timer indicator shows when the timer is
active.
Overtemperature
Indicator
The Overtemperature indicator shows green
in normal use. It flashes red when
overtemperature is triggered and is constantly
red when overtemperature is reset and waiting
for the temperature to drop.
2.3 Menu System
The 301 controller is divided into two menus; the home menu and the set up menu. The
home menu contains all the basic operating controls: setpoint, setpoint ramp rate and timer
time. The set up menu contains all the set up features: timer type, timer band, output power
and customer calibration. The features available vary depending on user input or product
specification.
