Basic Operation
5 MC19-1.20
2 Basic Operation

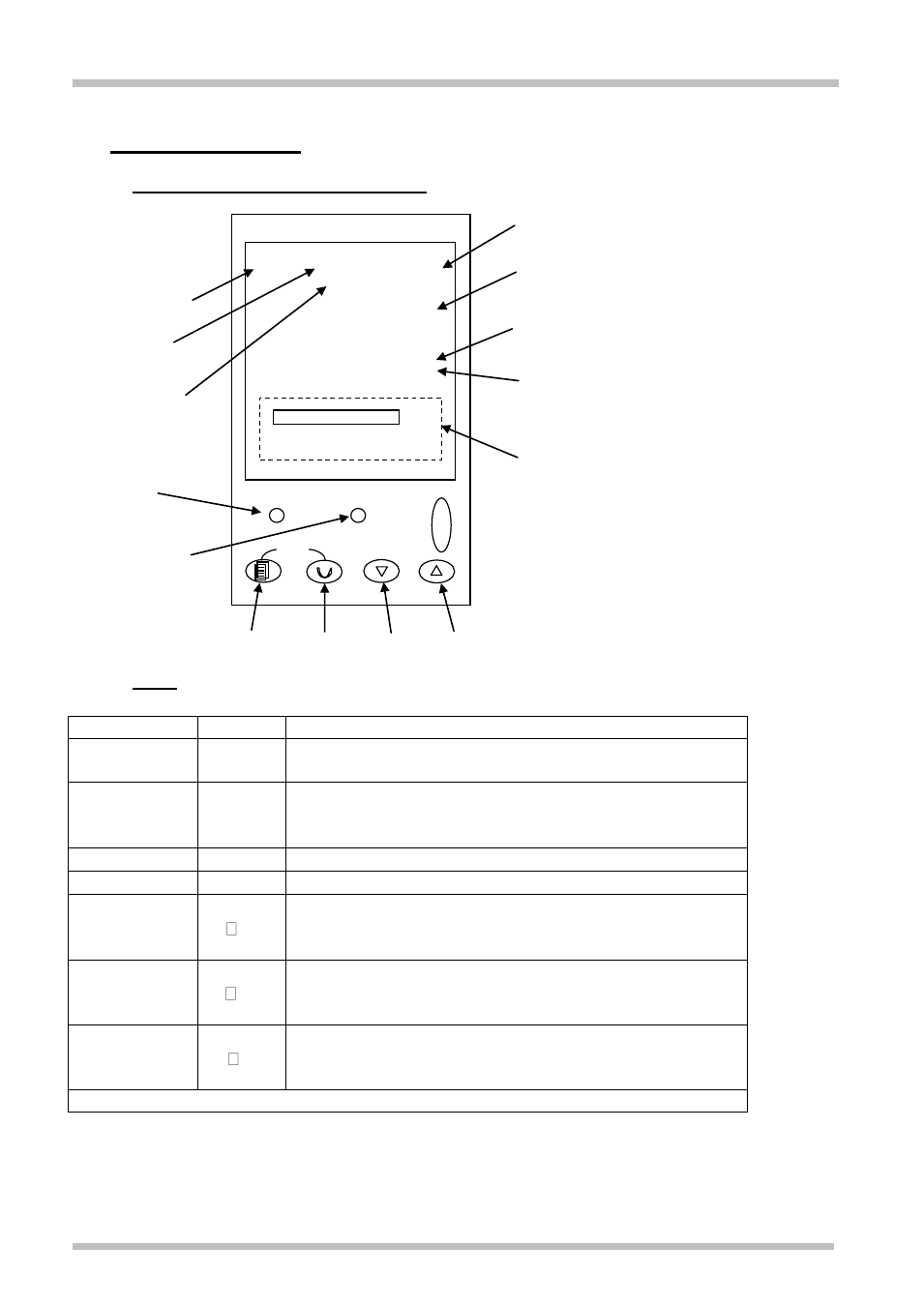

2.1 Controller Layout (Home display)
2.2 Keys
A/Man - Disabled
RUN/HOLD -
Runs, Holds or Resets the current program. Hold
down for 3 seconds to Reset.
Page key

Scrolls through the page headings. Hold down for 3
seconds to access further levels, pass codes are
required.
Scroll key

Scrolls through parameters listed on pages.
Arrow keys
 &  Adjust parameter values
Page and
scroll
together
 + 
Press together to return to the home display or to
acknowledge an alarm
Page and up
arrow
together
 + 
Press together quickly to scroll back up the page
headings
Scroll and up
arrow
together
 + 
Press together quickly to scroll back up a parameter
list
Pressing any other combination of keys together has no effect
Note: If no keys are pressed for 1 minute, the display returns to Home.
Power output
indicator
Measurement units
Measured temperature
Program Setpoint temperature (PSP)
when a program is running
Power output
percentage
Program status
indicators.
Setpoint temperature (SP)
when basic controlling
OP1
°C
23
1200
%
96.0
RUN HLD
EUROTHERM
A/MAN RUN/HOLD 3508
Ack
Not used
Page Scroll Down Up
Runs, Holds,
Resets the current
program
ALM
Alarm indicator
