2.3 UV Light Safety Interlock (Optional)
An optional electrical interlock can be factory installed on any PCR Workstation®. This interlock will
prevent accidental or inadvertent exposure of UV radiation. The door(s) and glass screen are fitted
with electrical sensors. The UV light will only work if the door(s) and screen are closed. If the UV
light is “ON” and the door(s) or screen is opened the interlock will turn the UV light “OFF”.

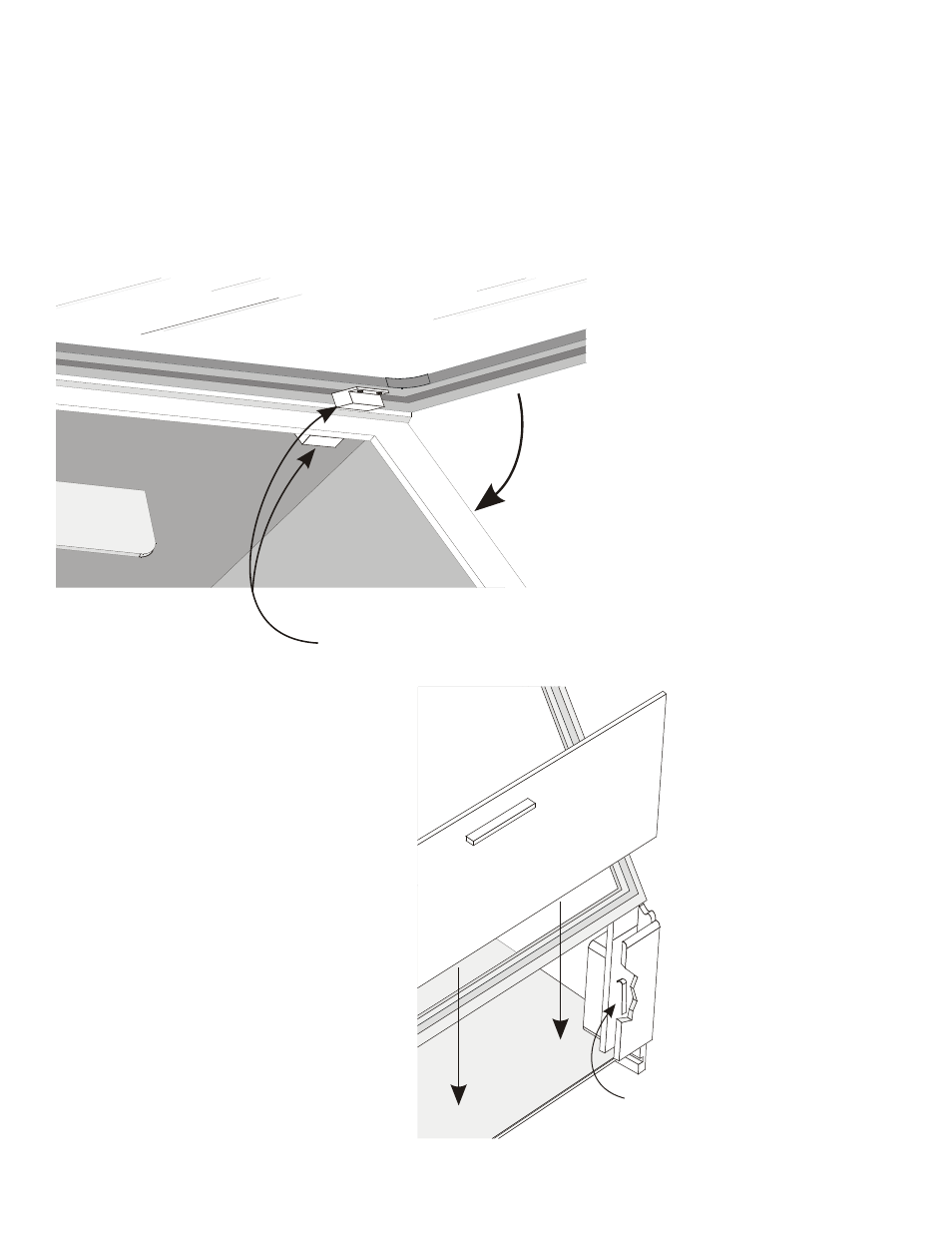

Glass Screen Interlock Switches:
GLASS SCREEN
MAGNETIC INTERLOCK SWITCH
Door placement interlock switches
DOOR INTERLOCK SWITCH
(P048 UNITS HAVE ONE
FOR EACH DOOR)
INTERLOCK ACTIVATION
1. Glass screen should be in the
“CLOSED” position to engage
magnetic switches.
2. Door(s) should be placed
into slots on either side of
workstation to engage micro
switches. Door(s) once placed
will physically block opening of
glass screen.
3. Set timer for desired duration
and select (UV) position for
toggle switch.
4. Door removal will turn UV light
off.
