Blue Rhino NPC1827BLN - Manual (Page 3)

Outdoor Charcoal Grill Model No. NPC1827BLN Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
2

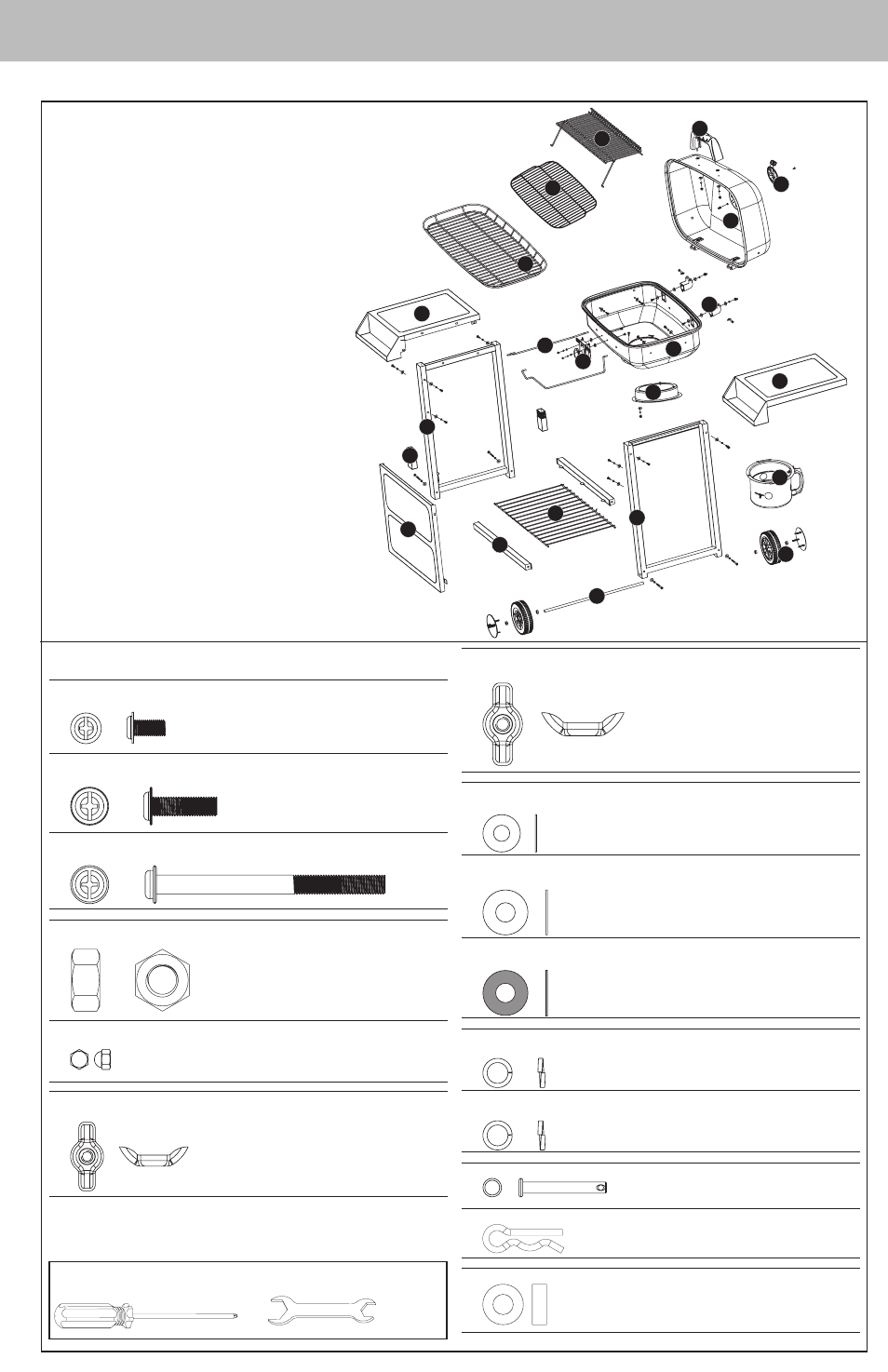

Exploded View
1. Lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-787
2. Bowl . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-788
3. Cooking Grid . . . . . . . . . . . . . . . . . . . . . . 55-14-789
4. Warming Rack . . . . . . . . . . . . . . . . . . . . . 55-14-790
5. Charcoal Grid. . . . . . . . . . . . . . . . . . . . . . 55-14-791
6. Bottom Hinge (2) . . . . . . . . . . . . . . . . . . . 55-14-792
7. Lid Handle . . . . . . . . . . . . . . . . . . . . . . . . 55-14-793
8. Lid Air Vent . . . . . . . . . . . . . . . . . . . . . . . 55-14-794
9. Plastic Foot (2) . . . . . . . . . . . . . . . . . . . . . 55-14-795
10. Slide . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-796
11. Ash Receiver . . . . . . . . . . . . . . . . . . . . . . 55-14-797
12. Bottom Shelf . . . . . . . . . . . . . . . . . . . . . . 55-14-798
13. Front Panel . . . . . . . . . . . . . . . . . . . . . . . 55-14-799
14. Left Cart Frame . . . . . . . . . . . . . . . . . . . . 55-14-800
15. Right Cart Frame . . . . . . . . . . . . . . . . . . . 55-14-801
16. Link Beam (2) . . . . . . . . . . . . . . . . . . . . . 55-14-802
17. Left Side Shelf . . . . . . . . . . . . . . . . . . . . . 55-14-803
18. Right Side Shelf . . . . . . . . . . . . . . . . . . . . 55-14-804
19. Adjustable Knob. . . . . . . . . . . . . . . . . . . . 55-14-805
20. Charcoal Grid Support Rod (2) . . . . . . . . . 55-14-806
21. Wheel and Hub Cap (2) . . . . . . . . . . . . . . 55-14-807
22. Wheel Axle. . . . . . . . . . . . . . . . . . . . . . . . 55-14-808
4
1
18
8
7
4
3
5
9
2
6
11
21
15
22
16
12
10
20
19
17
14
13
Hardware / Actual Size
A. Small Screw 3 pcs
M5x10 Philips Truss Head Screw
B. Medium Screw 15 pcs
M6x20 Philips Truss Head Screw
C. Large Screw / 4 pcs
M6x72 Philips Truss Head Screw
D. Nut 2 pcs
M10 Zinc Plated Hex Nut
E. Cap Nut 2 pcs
M5 Aluminum Cap Nut
F. Small Wing Nut 1 pc
M5 Zinc Plated Wing Nut
G. Large Wing Nut 5 pcs
M6 Zinc Plated Wing Nut
H. Small Washer 2 pcs
ø5 Zinc Plated Washer
I. Large Washer 23 pcs
ø6 Zinck Plated Washer
J. Heat Resistant Washer 6 pcs
ø6 Heat Resistant Washer
K. Small Lock Washer 3 pcs
ø5.5 Zinc Plated Lock Washer
L. Large Lock Washer 21 pcs
ø6.5 Zinc Plated Lock Washer
M. Pins* 2 pcs
N. Cotter Pins* 2 pcs
O. Rubber Spacer* 2 pcs
* Not shown at actual size.
Only tools required for assembly are provided
Screwdriver*
1 pc Wrench* 2 pcs
