POLYCARBONATE PROTECTION COVER PLATE:
Caution: Change cover plates when they lose flexibility and/or become bowed or distorted. Clean
with mild soapy solution including any build-up from the area where the cover plate is retained.
Discard if cleaning fails to improve visibility or cracks, scratches, etc. impair visibility.
Spatter Protection

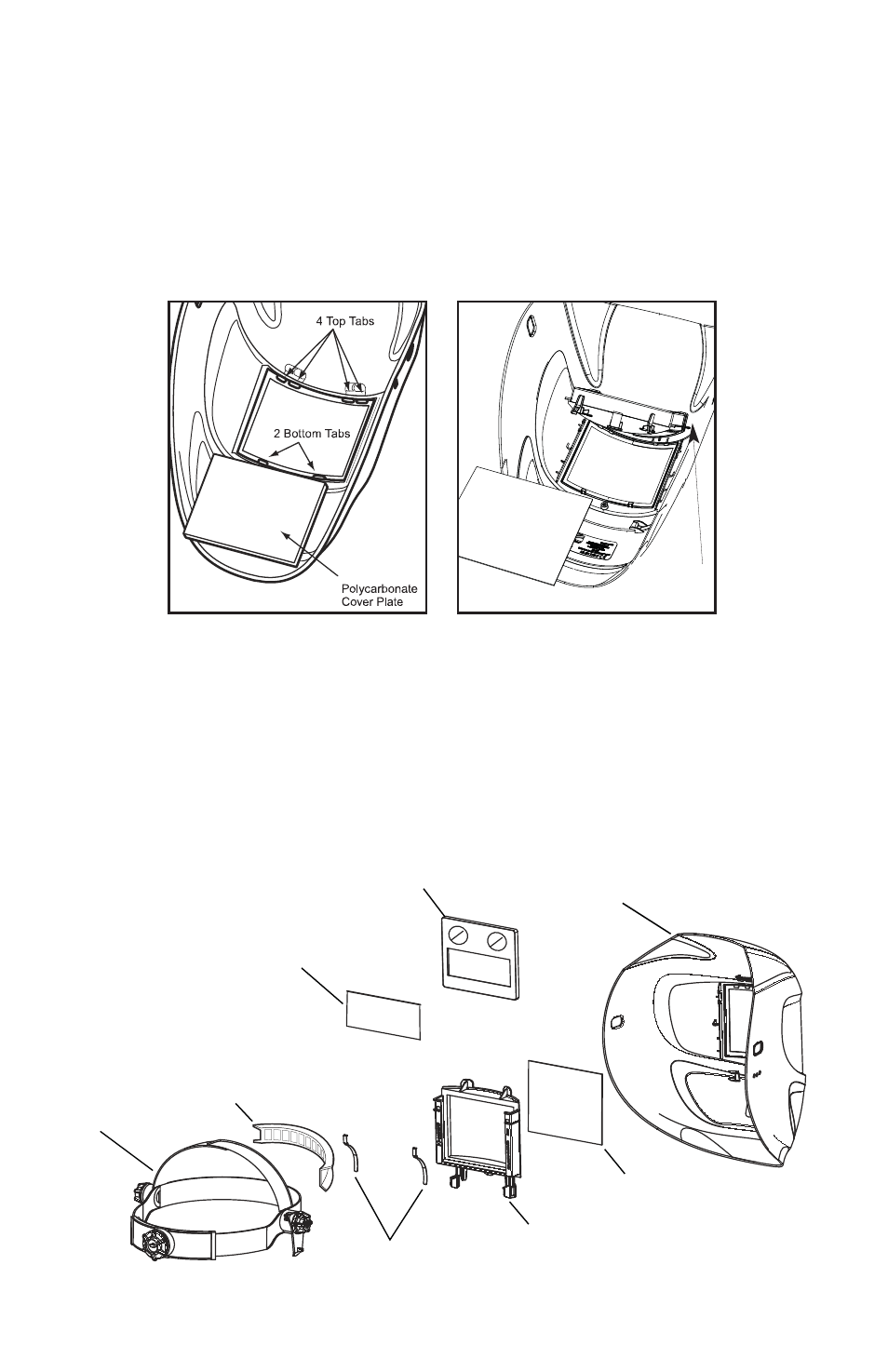

Ensure the front cover plate is secure under all the tabs (see Figure 7A & 7B) located inside the Car-
rera Welding Helmet and within the area covered by the filter holder..
SPATTER DAMAGE IS NOT COVERED BY WARRANTY
All cover plates are 1 mm thick.
***To install, slide Polycarbonate under top tabs then push
underneath bottom tabs***
Figure 7A
Parts Selection Guide (Removeable Center Section)
(see Filter Removal Diagram for replacing Filter and Cover Plates)
AD Filter
**CARRERA-911-S
Helmet Shell
04-OP
Front Polycarbonate
CARRERA-CS-1
Center Section
03-OP/04-OP
Inside Polycarbonate
Choice of 03-HGSB,
04-HGSB, 06-HGSB
Sweatband
SPR-01/02
Retaining Springs
02-HG
Headgear Assembly
Figure 8A
- 4 -
Figure 7B
Rotate Non-
Removable
Center Section
