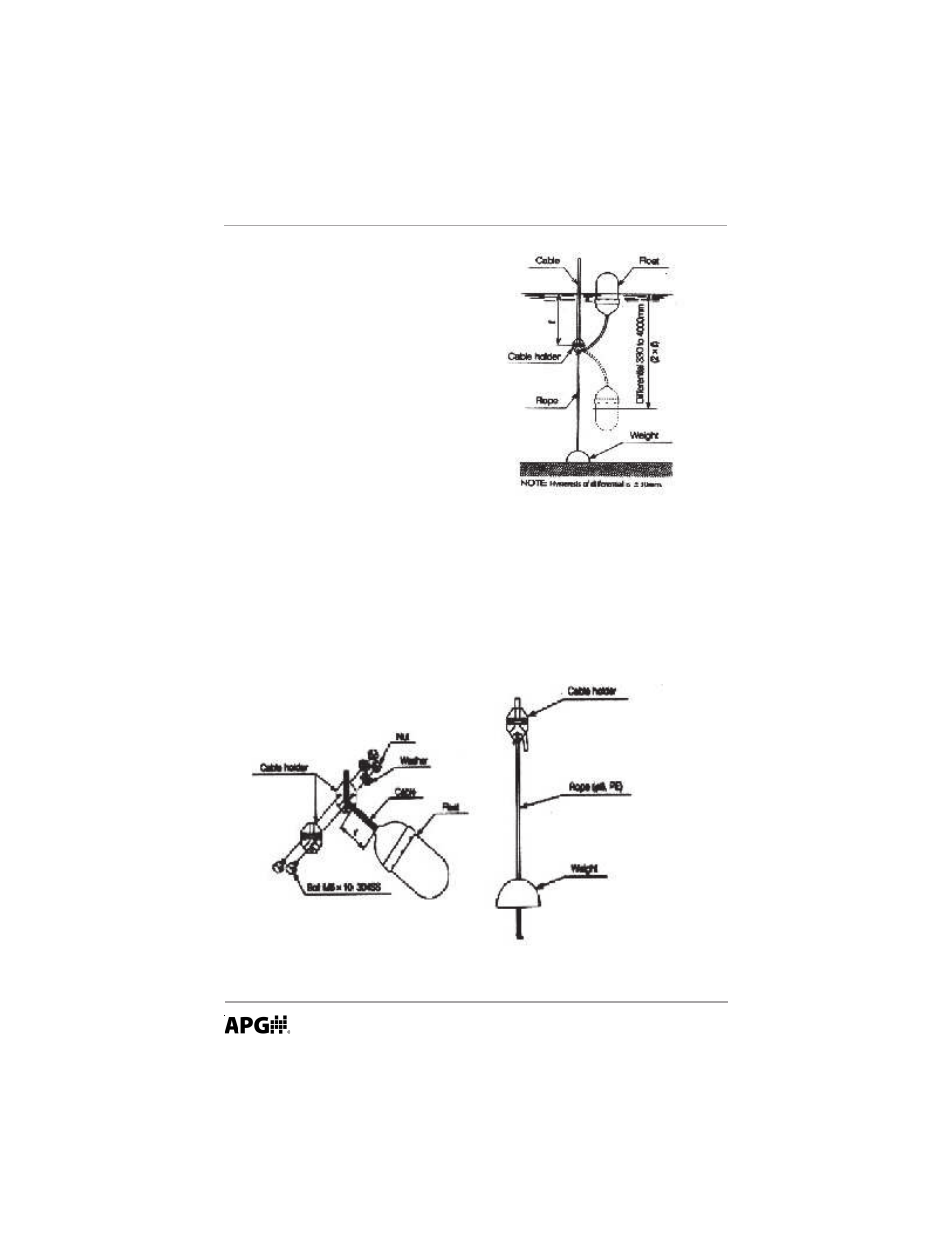

Assembly of TLS-8
Fixing points are as follows:
TLS-8 differential is from 330 mm to
4000 mm. Set the cable holder in the
center of the differential. The distance
from the cable holder to the float should
be half of the differential.
For example: If differential = 300 mm,
then the cable length should = 150 mm.
NOTE: Hysteresis of differential is ±30
mm
NOTE: Minimum distance from float to weight is 150 mm.
Assembly of TLS-6
Fixing points are as follows:
TLS-6 differential is from 270 mm to 1000 mm. Insert the cable into the cable
holder and tighten the nuts to the wall of container as shown below; or tie the
weight to the cable holder and submerge the weight to the bottom
of the tank.
