• Installation
Unpacking
When unpacking, do not damage the sensor with mechanical shock. After
unpacking, make sure that the products you ordered are complete. If any part
number is missing, wrong or damaged, please contact APG.
Installation
The TLS should be installed in an area that meets the following conditions:
1. Temperature range:
TLS-8 +14 to 122°F (-10 to 50°C)
TLS-8AK +14 to 160°F (-10 to 70°C)
2. Located away from any strong magnetic field
• Located away from drop, splash, or vapor around the lead wire egress
• Liquid should be free from any metallic substances
• Placed in a non-hazardous area
• Maximum liquid depth of 20 meters
• Ample space for maintenance and inspection
Location

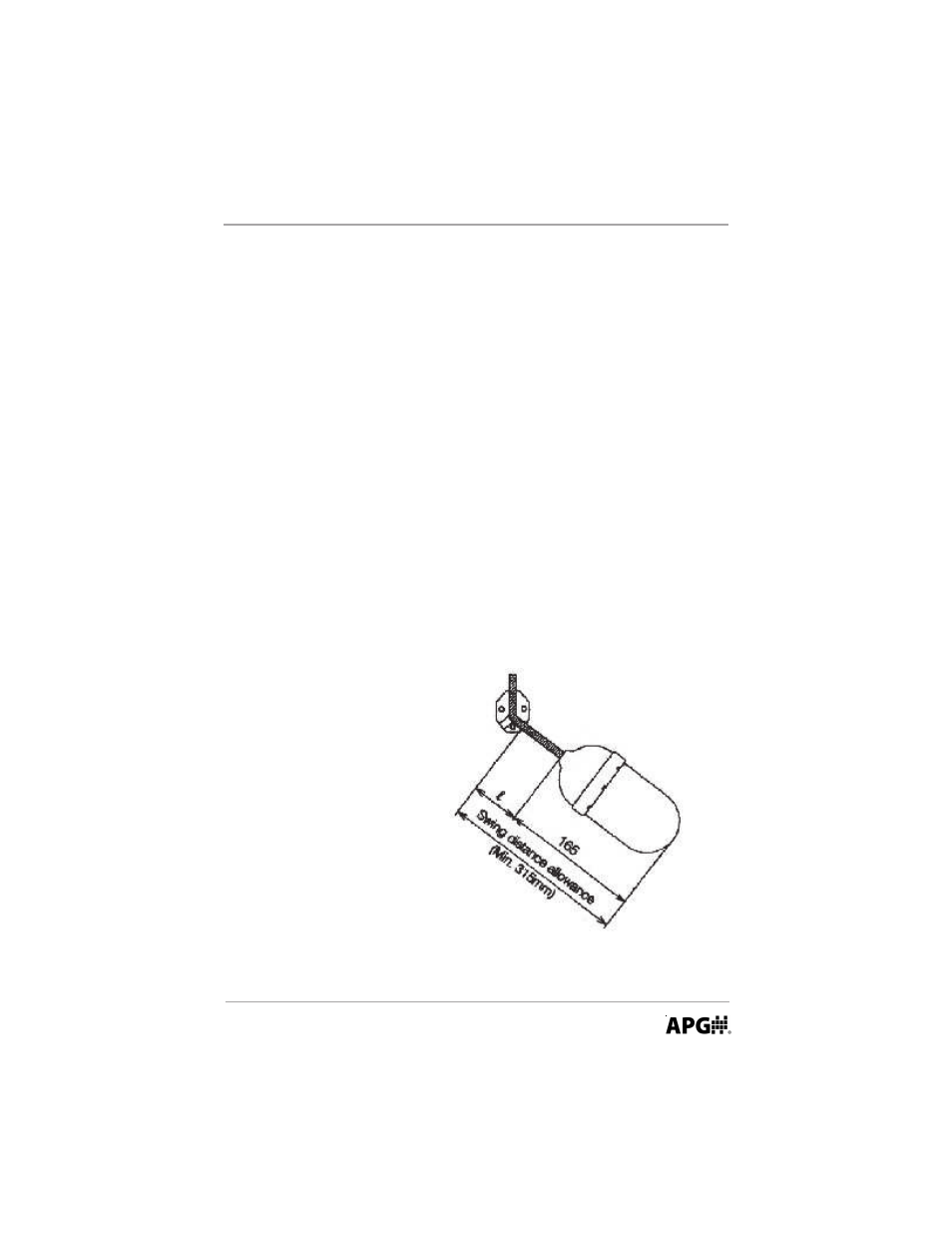

Locate the TLS in an area
where it is free to operate
without interference. The swing
distance allowance is measured
from the tip of the float to the
cable holder.
NOTE: Minimum distance from
float to weight is 150 mm.
