VMS (25’ x 32’) Parts List
Item
No.
Qty Part No. Description
Pounds
per Item
Label
1 2 80810 Left Lower Leg 25.8 LLL
2 2 80813 Left Upper Leg 18.6 LUL
3 2 80816 Left Rafter 20.6 LR
4 2 80819 Mid Rafter 21.2 MR
5 2 80820 Mid Upper Leg 19.4 MUL
6 2 80821 Mid Lower Leg 28.7 MLL
7 2 80822 Right Lower Leg 25.8 RLL
8 2 80823 Right Upper Leg 18.6 RUL
9 2 80846 Right Rafter 20.6 RR
10 6 80839 Base Plate Weldment 7.6
11 4 80824 Eave End Weldment 9.9
12 2 80827 Peak End Weldment 9.8
13 2 80828 Eave Mid Weldment 9.9
14 1 80829 Peak Mid Weldment 9.8
15 44 80830 Half Purlin 7.7
16 22 80831 Purlin Splice 2.2
VMS (25’ x 32’) Parts List (cont’d)
Item
No.
Qty Part No. Description
Pounds
per Item
18 8 3023897 J Bolt -
19 8 3025387 Washer -
20 8 3024390 Wing Nut -
22 8 80834 Cable for 16’-0” Bay 5.0
23 3 3582260 Ridge Brace 16.4
24 4 3023260 3/8” x 3” Bolt -
25 2 3020445 Eye Bolt -
26 6 3024015 Eye Nut -
27 22** 3704230 Dbl. Hd. Stake (1” x 30”) 8.0
29 4 80847 Eave Cover -
30 1 8003720
Installation Kit:
(2) Pull ropes (30a)
(1) Zipper tool (30b)
(4) Frame lifts (30c)
25.0

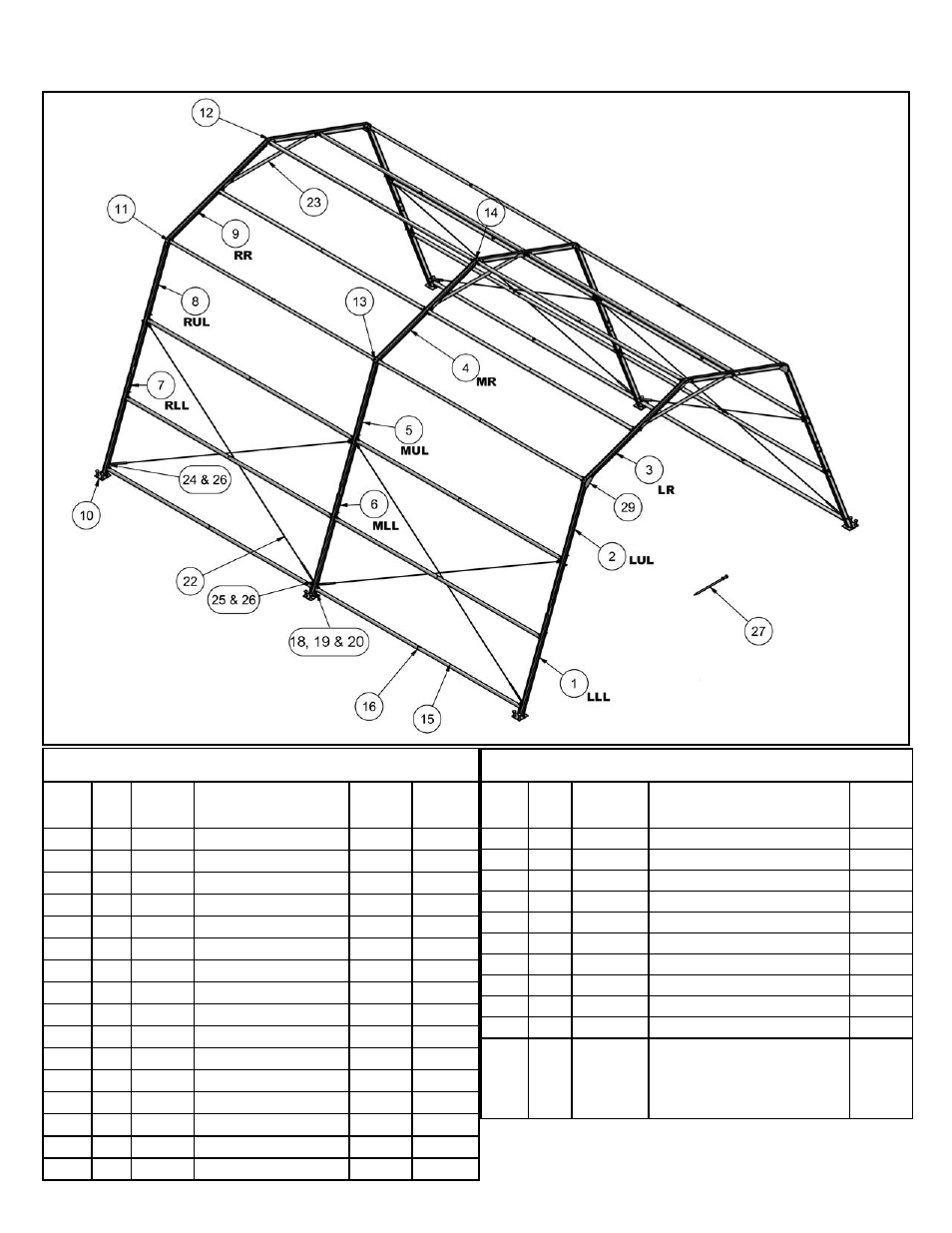

VMS Standard Frame Terminology and Parts List
*No weight is listed for items under one pound.
**(10) Stakes are used for gable end fabric installation. (5)
Stakes per end.
