5/16”-18 x 1 1/2” LONG HEX
BOLT & LOCK NUT (8) FOR
ATTACHING BOWS
5/16”-18 x 7/8” LONG CARRIAGE
BOLT & ACORN NUT (8) FOR
ATTACHING BRACES TO BOWS.
CAUTION: PLACE EYE END OF
BRACE BETWEEN EARS OF
RAFTER CLAMP. (SEE PAGE 4)
BOW RAFTER (8)
BRACE (8)
APPROX. CLOSED
POSITION
WINCH HANDLE
FINISH GRADE
GROUND SLEEVE
WINCH
POLE
USE SAFETY PIN
WHEN UMBRELLA
IS OPEN.
STOP BOLT
TOP PLUG
(PLASTIC CAP)
3/8”-16 X 5” HEX HEAD CAP SCREW
WITH CAP NUT (2) FOR ATTACHING
POLE TO SLEEVE.
5/16”-18 x 1 1/2” LONG
BOLT & LOCKNUT
(8) FOR ATTACHING
BRACES.
2

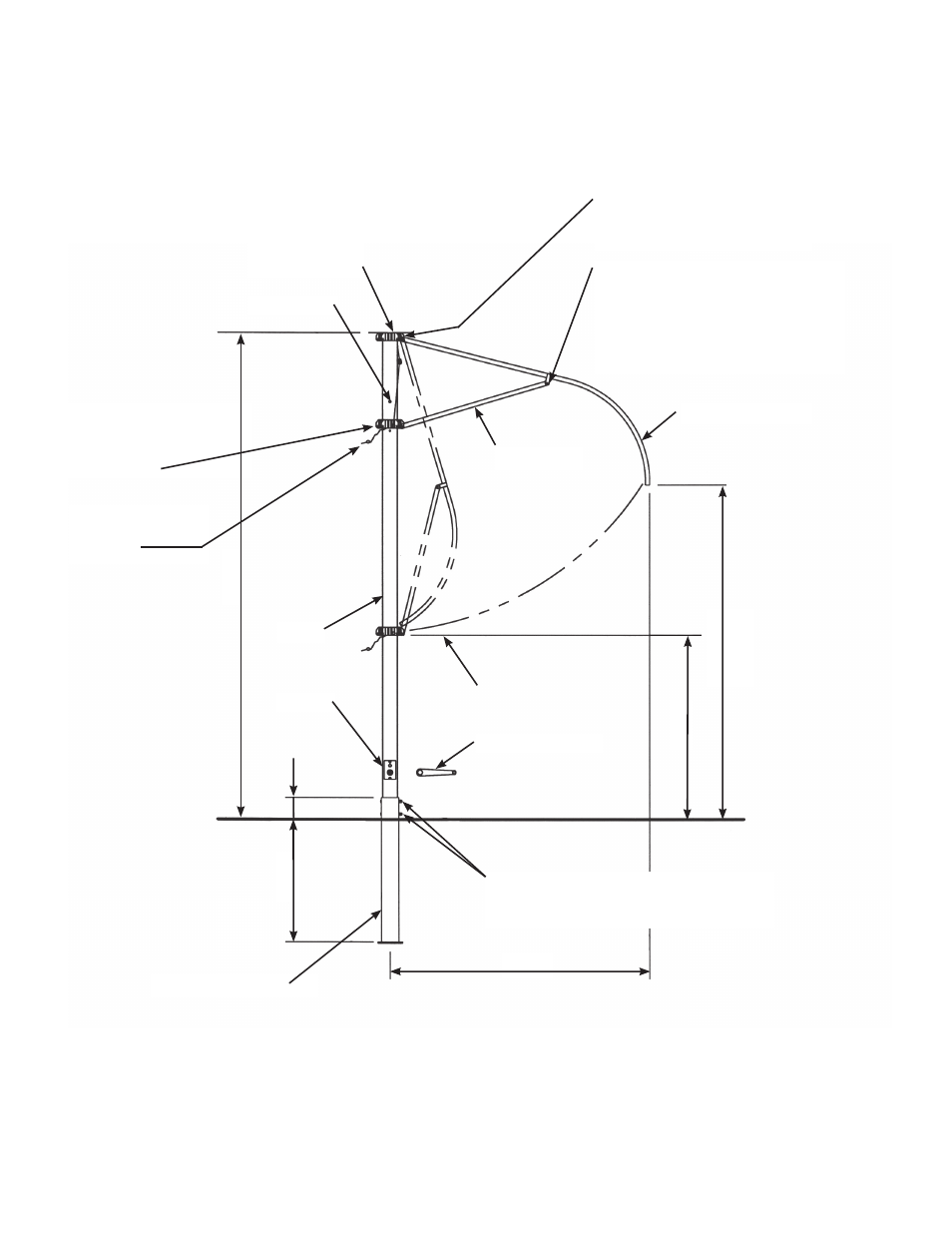

12’-0” DIAMETER FUNBRELLA FRAME
11’- 3”
2’- 10”
4’- 2”
7’ -1”
APPROX
6”
6’- 0”
