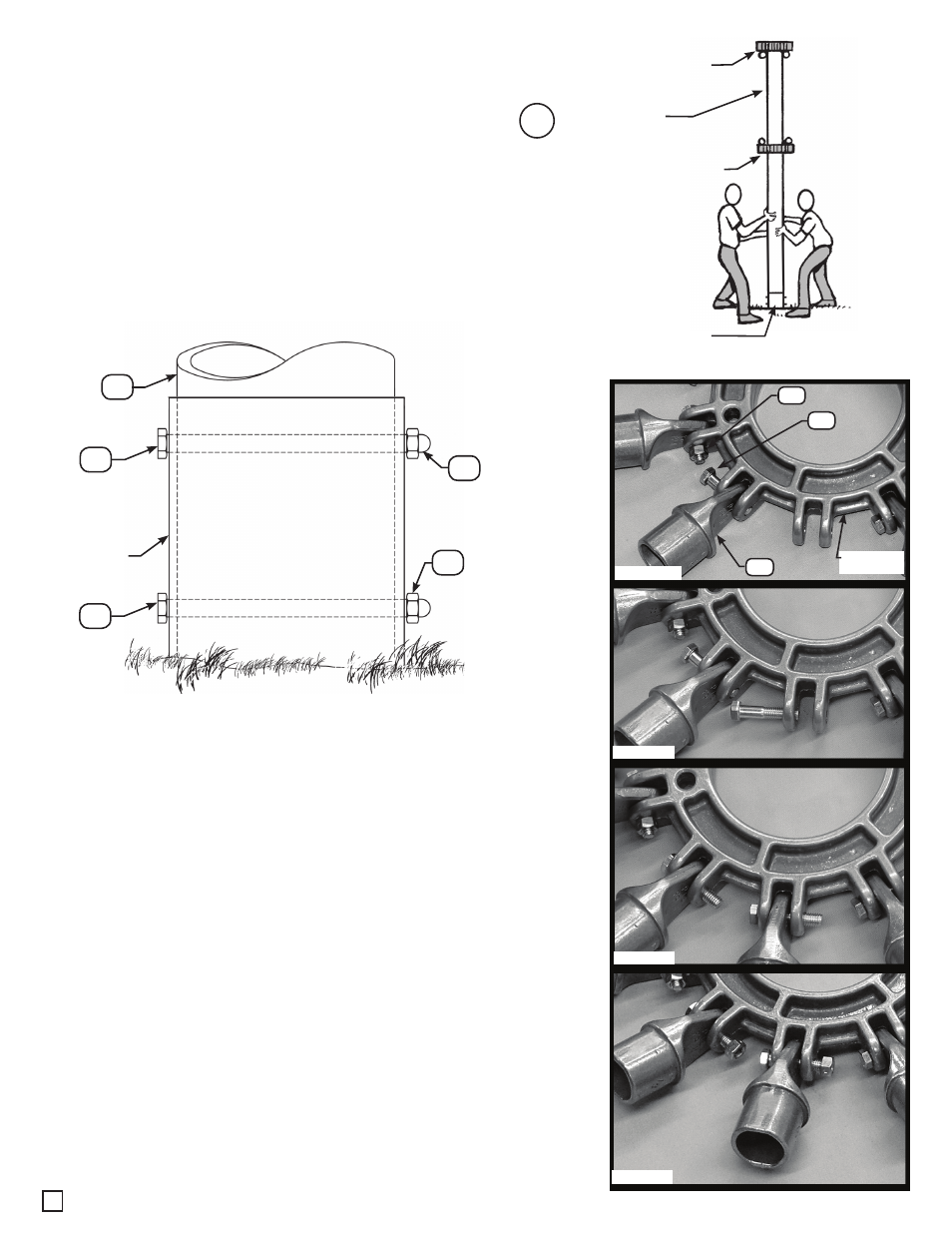

STEP 2
Using extension ladder, install rafters to top hub with 3/8” x 1 3/4”
Bolts (Item 5) and 3/8” Nuts (Item 7).
Important: Install last two rafters at the same time. To avoid
interference, insert Bolt (Item 5) into hole, thru rafter with end of
bolt flush to edge of casting. (Figure 2a)
Then, insert last bolt into last hole and thru rafter. (Figures 2b &
2c)
Now place nuts on bolts and tighten - do not over-tighten.
(Figure 2d)
Examine bottom hub to be sure it is rotated so that eyenuts on
bottom hub are in-line with eyenuts on top hub.
Repeat the installation process with braces (Items 3) onto bottom
hub on pole assembly.
5
7
2
Hub on Pole
Assembly
Figure 2a
Figure 2b
Figure 2c
Figure 2d
STEP 1
Set Center Pole Assembly into ground sleeve and
secure with (2) 3/8” x 5” Bolts, and (2) 3/8” Cap Nuts.
(Items # 8 & 9 on Parts List - Page 2.)
(Figures 1a & 1b)
After raising pole, remove bolt, nut and spacers under
bottom hub and set aside for later use. Carefully slide
the hub to the bottom of the pole.
3
1
9
8
8
9
Figure 1b
Ground
Sleeve
Pole Assembly
1
Figure 1a
See Figure 1b
Top hub
Bottom Hub
