FIESTA

®

PLUS II RETROFIT

INSTALLATION OF CATENARY WELDMENT

AND INSTRUCTIONS FOR CATENARY TENSIONING

30”

STEPS:

See 40’ Fiesta Retrofit Assembly
Instructions, (Retrofit Instructions,
Step 3) and install the CWR fitting
onto each upright.

Refer to the Retrofit part substitution
guide and the standard Fiesta
assembly instructions.

With top on, pull corners down and
pull web over eyebolt. (See Fig. 4)

Place webs with rings through tri-
ring, as shown. (See Fig. 4)

Place hook in top web (double web)
into rings, as shown. (See Fig. 1 and
Fig. 2)

Attach hook on bottom web to PTEB,
as shown. (See Fig. 1 and Fig. 3)

When all hooks are fastened, gradu-
ally tension each corner, repeating
this process until top is properly
tensioned.

Do not over tension at the intermedi-
ate legs. Over tensioning can result
in the bending of rafters.

1.

2.

3.

4.

5.

6.

7.

8.

SALES OFFICES:

1100 BURCH DRIVE

P.O. BOX 3477

EVANSVILLE, INDIANA 47733,

U.S.A.

PHONE 812-867-2421

FAX 812-867-0547

1-800-544-4445

Quality, Craftsmanship and Service since 1892

PRODUCTION FACILITIES:

BRADENTON, FLORIDA

EVANSVILLE, INDIANA

40RETRO/CAT-0405

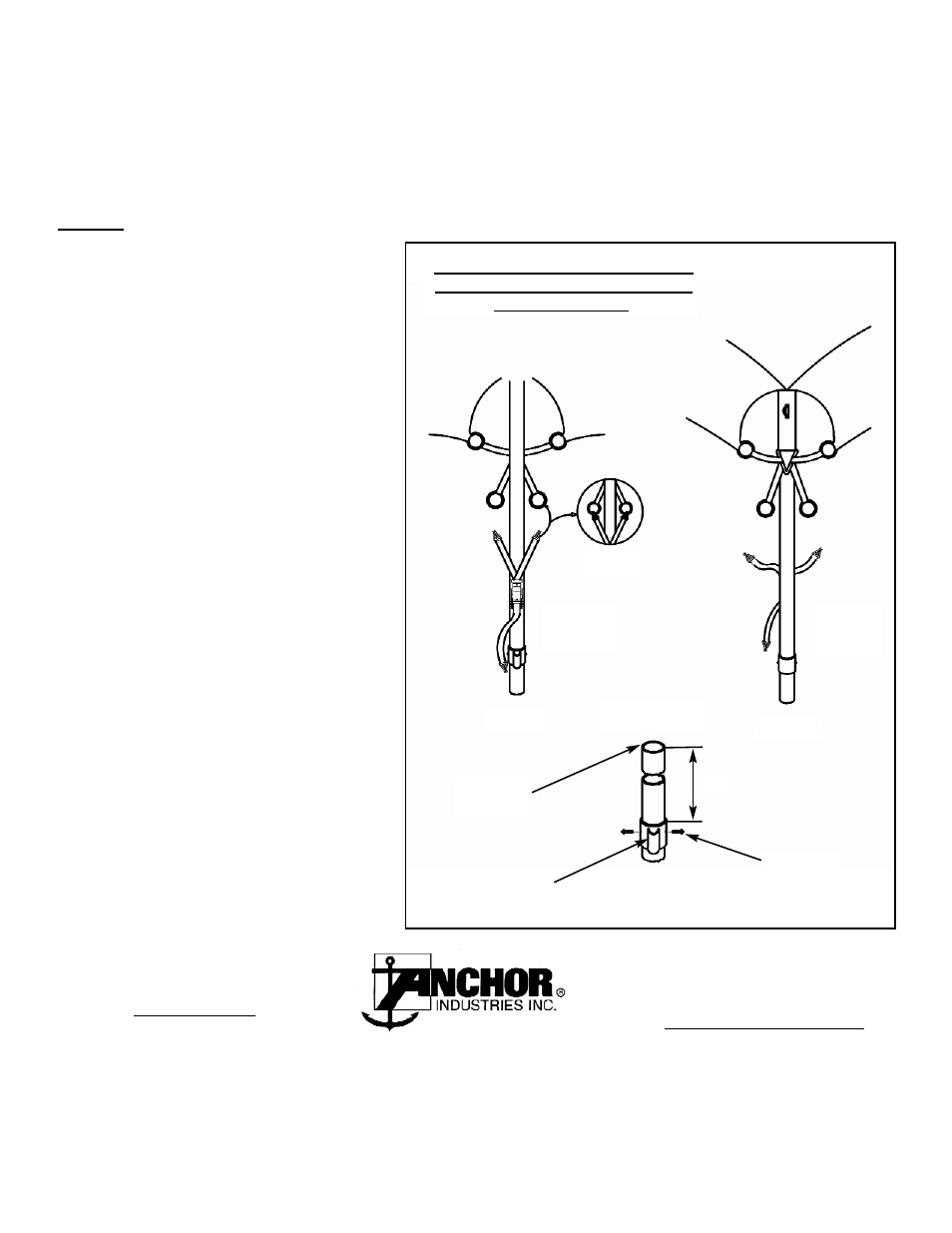

FIG. 1

FIG. 3

FIG. 4

FIG. 2

FIESTA® PLUS II UPRIGHTS WITH

TOP RINGS AND WEB-RATCHETS

FOR TENSIONING

CWR

TOP OF
UPRIGHT

1/4” DRIVE
RIVETS

UPRIGHT

INSIDE

VIEW

UPRIGHT
OUTSIDE
VIEW

INSTALLATION

OF CWR
