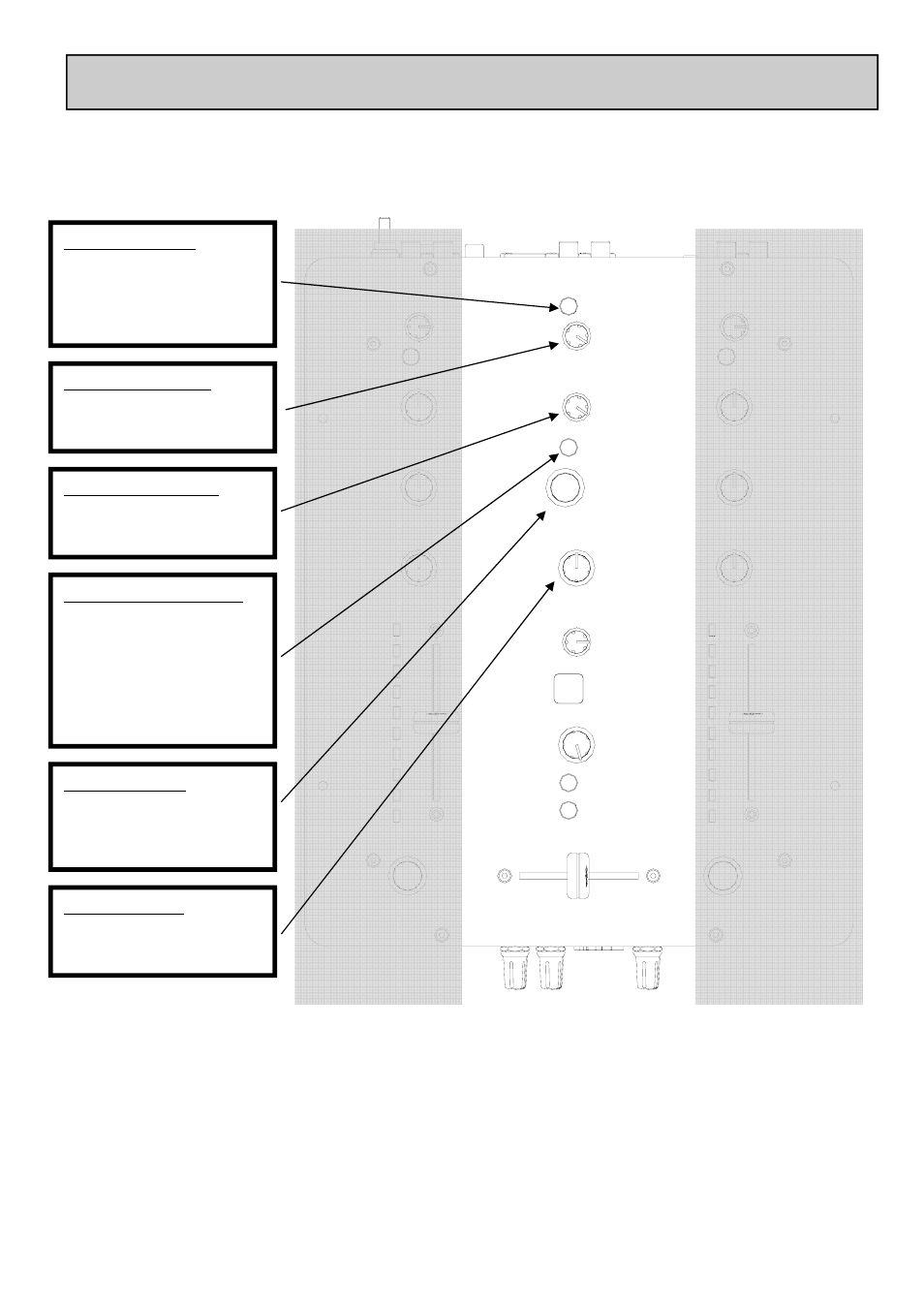

MASTER CONTROLS
FX loop on switch
Press this switch to activate
the external effect loop. Leave
switched off if an external
effects unit is not connected
Master output Level
Sets the signal level to the
main XLR mix output
Monitor output Level
Sets the signal level for the
local monitor (booth) output
Filter Resonance control
Changes the “Q” or sharpness
of the VCF.
Up (mild) will give a smooth
filter sound, Down (wild) will
make the filter sound more
dramatic
Filter Frequency
Sets the cut off frequency of
the VCF filter
Filter type select
Up (green) selects a low – pass
filter, down (red) selects a high
- pass filter
