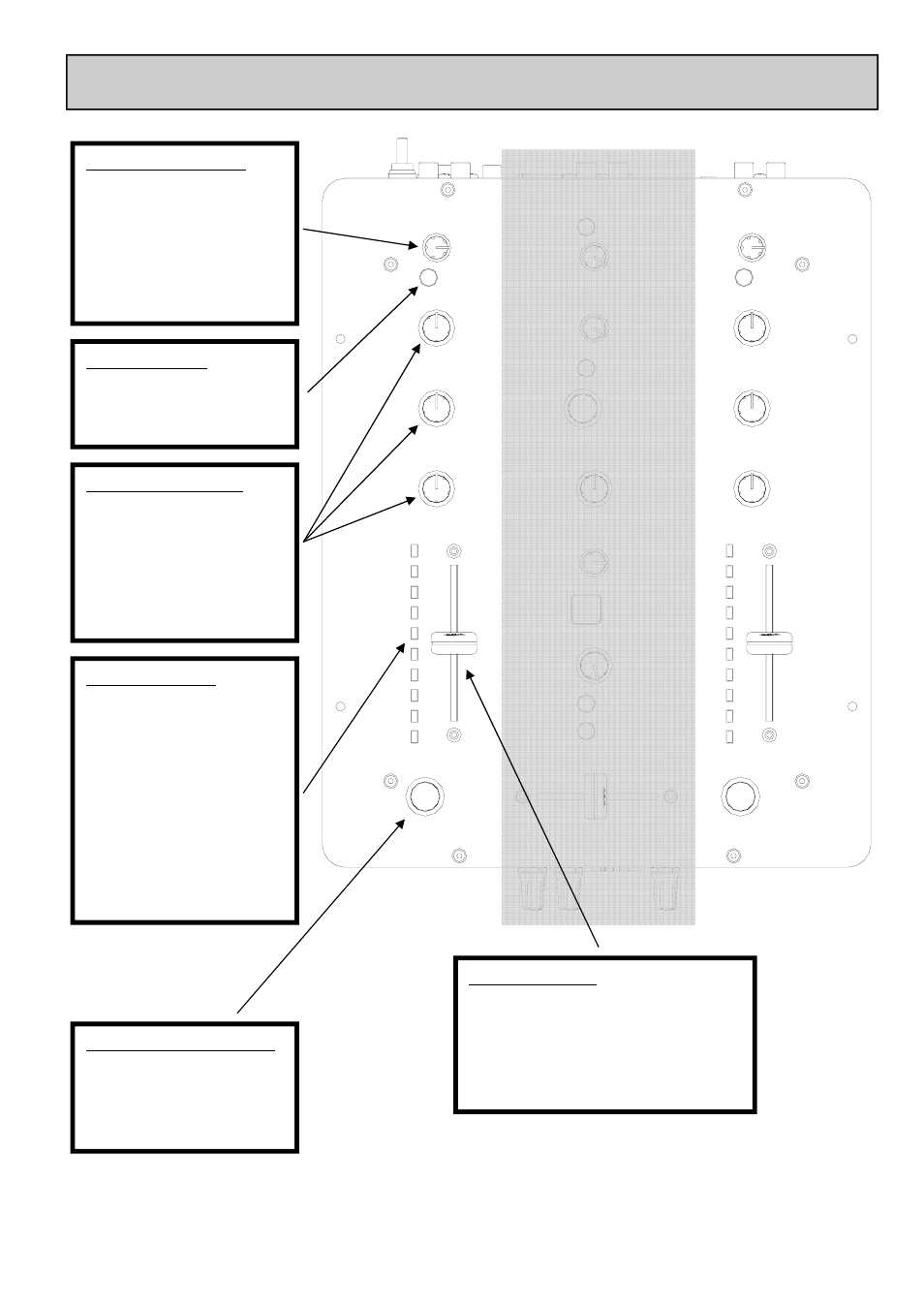

INPUT CHANNEL CONTROLS
Input level control
Adjust so that the aver-
age music level lights the
0 LED on the meter, with
the beats lighting the +3
to +6 LED. Turn down if
the +9 Red LED is illumi-
nated
Input selector
Switches between Phono
(turntables) and Line
(CD)
3-Band full kill EQ
Turn anti-clockwise to
kill a frequency band or
clockwise to boost.
If all bands are fully clock-
wise the signal will be
muted
Channel Meter
Indicates the signal level
through the channel. Ad-
just the level control so
that the peak signal level
lights the +3 or +6 LEDs.
Reduce the signal level if
the red +9 LED lights.
These meters will display
the Left/Right channel
output signal if the Cue/
Master button is pressed
Channel Fader
High quality fader adjusts the music
level for each channel in the mix.
For best signal-to-noise ratio set
the fader at, or near, the top when
in the mix
Filter/FX Loop switch
Pressing this switch sends
the channel signal to the
external effects loop and
to the VCF filter section
