Front panel connections – Allen&Heath XONE 22 User Manual
Page 11
11

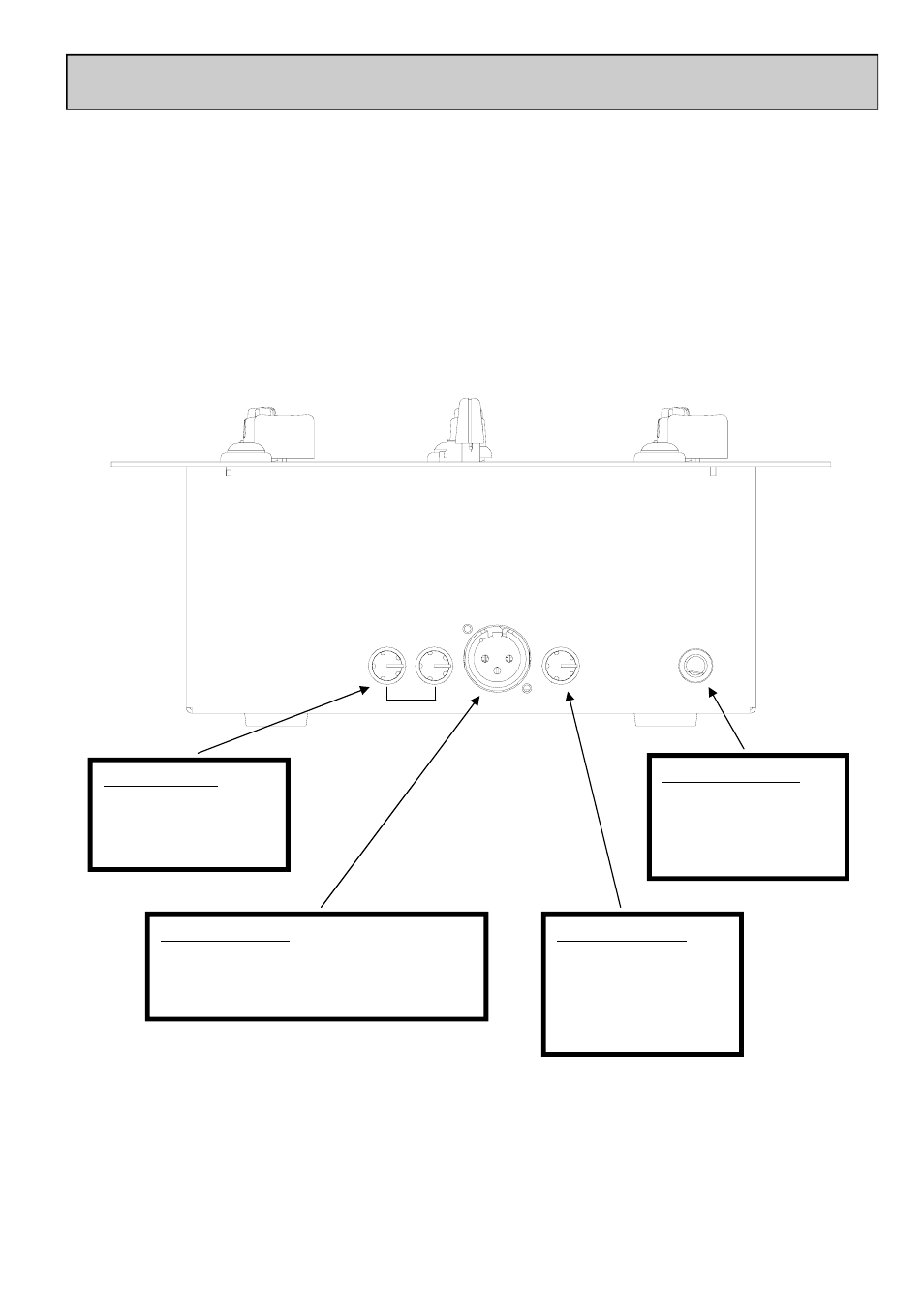

FRONT PANEL CONNECTIONS
Microphone EQ
2 band EQ for adjusting
the tonal balance of the DJ
mic
Microphone input
Professional XLR balanced mic input. Use a low
impedance dynamic hypercardioid Mic for best
results.
Microphone Level
Adjusts the signal level of
the mic input. If you are
not using the mic, turn to
minimum to prevent noise
pick up.
Headphone output
1/4” jack headphone out-
put socket. Use phones
with a 30 to 70 ohms
impedance.
