SPECIFICATIONS
Connections
Inputs
Connection Impedance Nominal Level Maximum Level
Phono RCA 47K/330pF 7mV-100mV
Line RCA 20K ohm -10 to +18dBu
FX RTN RCA 10K ohm 0 to +18dBu
Mic XLR <2K ohm -42 TO –12dBu
Outputs
Main Mix Balanced XLR 68 ohms +4dBu +25dBu
Monitor RCA 68 ohms -2dBu +18dBu
Record RCA 600 ohms -10dBV +10dBV
FX SND RCA 47 ohms -2dBu +18dBu
Headphones 3.5mm and
1/4” TRS Jacks
1 ohm 200mW RMS into
30 ohms
Performance
Distortion Main Mix out +10dBu 0.002% THD+N
Noise 22-22Khz Main Mix out unity -84dBu un-weighted
Fader shut off Channel fader >-74dB
Xfade shut off Xfader >-80dB
Frequency
Response 10Hz to 30kHz +0/-3dB

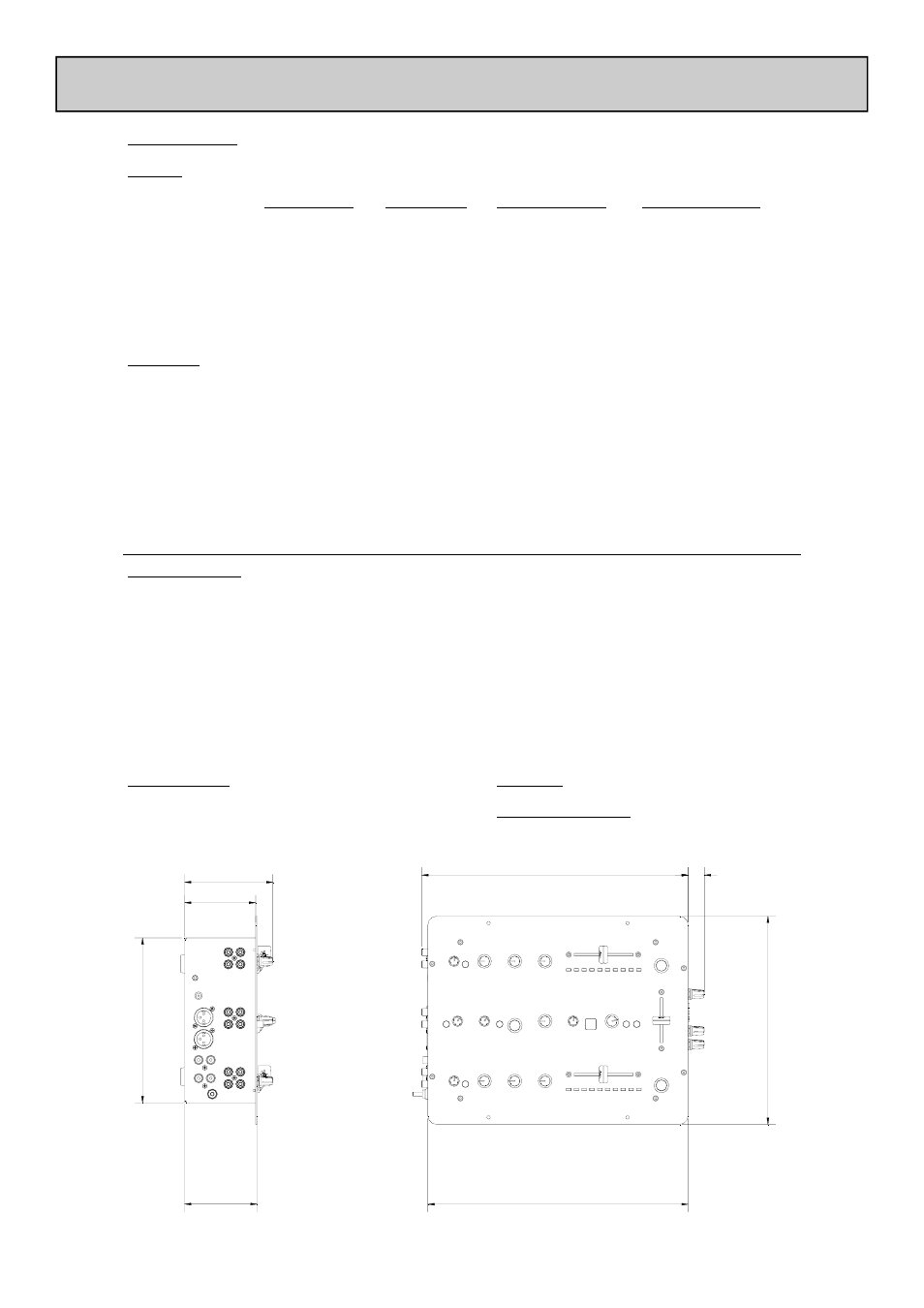

Dimensions Weight 2.2kg (5.5lb)
Weight Packed 3.5kg (8.0lb)
101.93
83.60 300.00
307.00
1
9
0.
00
240.00
82.00
18.73
