Allen & Heath 23 XB-10 User Guide

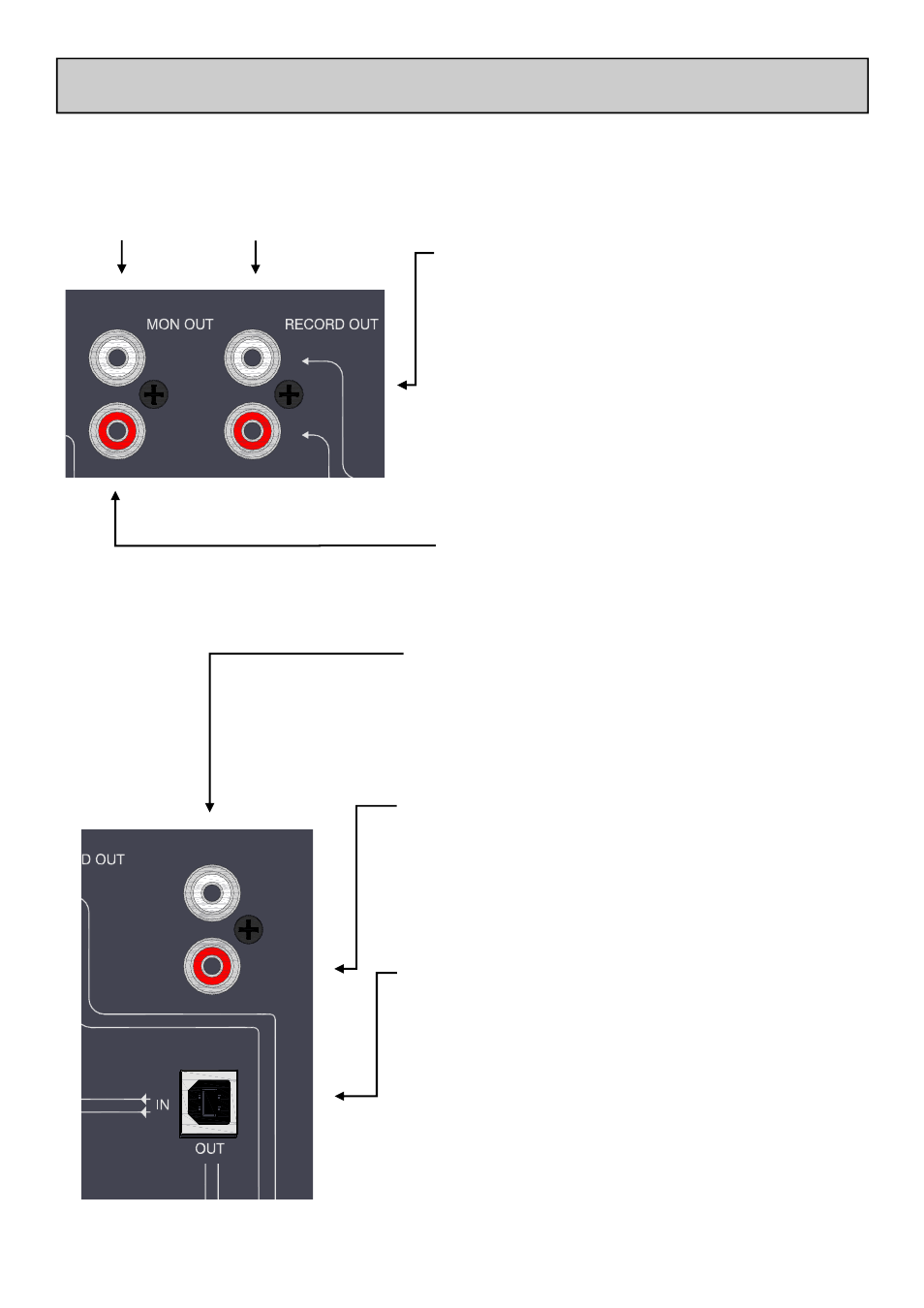

OUTPUTS
R
L
R
L
GROUND CANCEL SELECTORS
Both the MON OUT and RECORD OUT connectors are ground cancelled. The signal ground is lifted with a 75ohm im-
pedance to eliminate issues with hum and earth loops. To disable this function and allow a direct earth connection, depress
the rear switches with a matchstick or similar.
USB
USB IN L
USB IN R
AUX OUT
ALT OUT
MONITOR OUT
This is the mix generated by the operator phones selection
matrix. Its level is controlled by the MONITOR LEVEL pot.
The MIC MUTE MONITOR function will mute this output if
any of the mic channel ON switches are illuminated.
This output can also be muted by an external switch attached
to the REMOTE connector on the back of the unit. The main
function of this output is to feed speakers for the studio.
Standard RCA phono sockets. Ground cancelled output.
Nominal level = 0dBu.
RECORD OUT
This is the PGM mix but taken before the main output level pot.
Standard RCA phono sockets. Ground cancelled output. Nomi-
nal level = 0dBu.
AUX OUT
This is the output for the AUX mix and its level is controlled by the
AUX MASTER control.
Standard RCA phono sockets. Ground cancelled output. Nominal
level = 0dBu.
ALT OUT
This is the output for the ALT mix. Levels are controlled by the
channel level pots only. When channel ON switches are in the up
position, the channel is fed to the ALT mix.
Standard RCA phono sockets. Ground cancelled output. Nominal
level = 0dBu.
USB audio send & return
The USB connection uses a USB 1.1 compliant stereo USB audio
CODEC which is also fully compliant with USB 2.
The connector is a standard USB “B Type” connector.
When connected to a computer (Windows or Mac) you will be
able to transfer stereo audio to and from the XB-10.
Please see the next page for selecting USB send options.
The USB audio input can be selected to feed the stereo channel 3
(ST3) by leaving the ST3 1/4" input jacks unplugged
