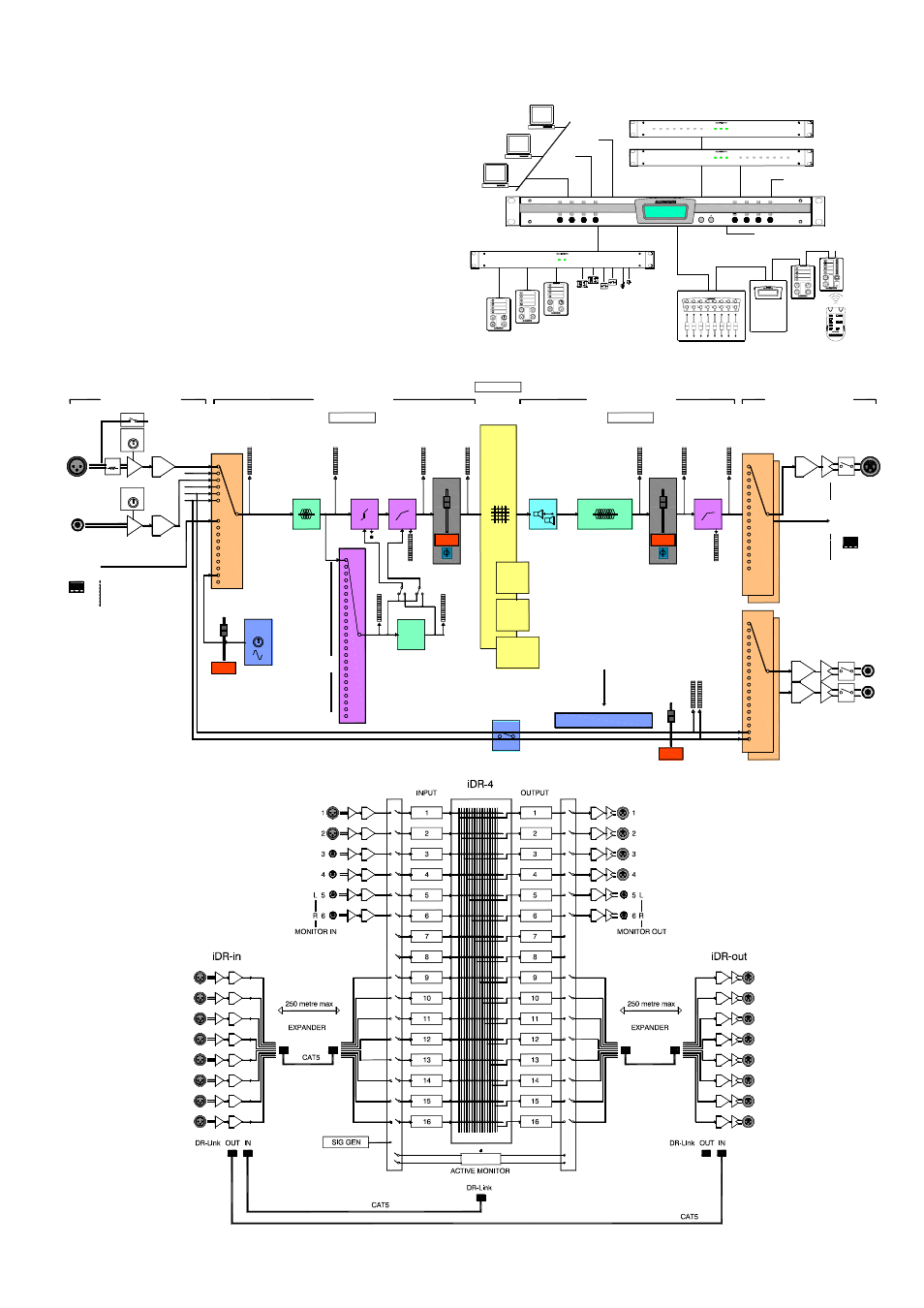

Application
Installed, live and special project sound
Installer configured, operator controlled
Set and forget, remote control
Zoned sound distribution and control
Paging and background music
Source routing and mixing
Signal equalisation and dynamics processing
Automatic microphone mixing
Venue speaker management
System time alignment
AUDIO INPUT EXPANDER power lock link iDR-in
lock link power
AUDIO OUTPUT EXPANDER iDR-out
link power 24 IN 16 OUT SWITCH CONTROLLER iDR-switch
iDR-switch
iDR-in
iDR-out
PL-Anet (RS485)
Sys-Net DR-Link
REMOTE CONTROLLERS
MODEM
RS232
NETWORK
AUDIO EXPANDERS
AUDIO MONITOR
iDR System Manager software
PL Designer software
Infra-red
Switch closures
Open-collector logic
Relays
Lamps
'Vitual' wall plates
System configuration
PL Client software
Fader Controllers
Wall Plates
Terminate
iDR-4
AUDIO MIX PROCESSOR <
iDR-4
INPUT
+
- ADC
GAIN
FADER
+20V
DAC
DAC
PAD
SOURCE
MIC/LINE
SIG GEN
FREQ
PEQ4
PHYSICAL INPUTS
GATE COMP
FADER
MUTE
INPUT CHANNELS
MUTE
MIX
MATRIX
DUCKING
PAGER
DELAY PEQ8 LIMIT
OUTPUT CHANNELS
GR
GR
SOURCE
DAC
5
6
PHYSICAL OUTPUTS
OUTPUT
ANALOG
M M M M M M M M M
NAME NAME
M
HF SHELF
LF SHELF
BELL
HF FILTER
LF FILTER
XOVER FILTER
OSCILLATOR
PINK NOISE
WHITE NOISE
1/3 OCT BP
AMM
9
16
INPUT
EXPANDER
FADER
MUTE
1
4
9
16
OUTPUT
ANALOG
OUTPUT
EXPANDER
SOURCE
NAME iDR
1,2
+
-
GAIN
INPUT
LINE
3,4,5,6
ADC
RIPPLE THROUGH SELECT
RELAY
RELAY
FILTER
16
M
GR
SIDECHAIN
ACTIVE
1
SEL
15+16
1+2
MONO
STEREO
SILENCE
FADER
ACTIVE MONITOR BUS
M
MUTE
