Fully expanded iDR-4

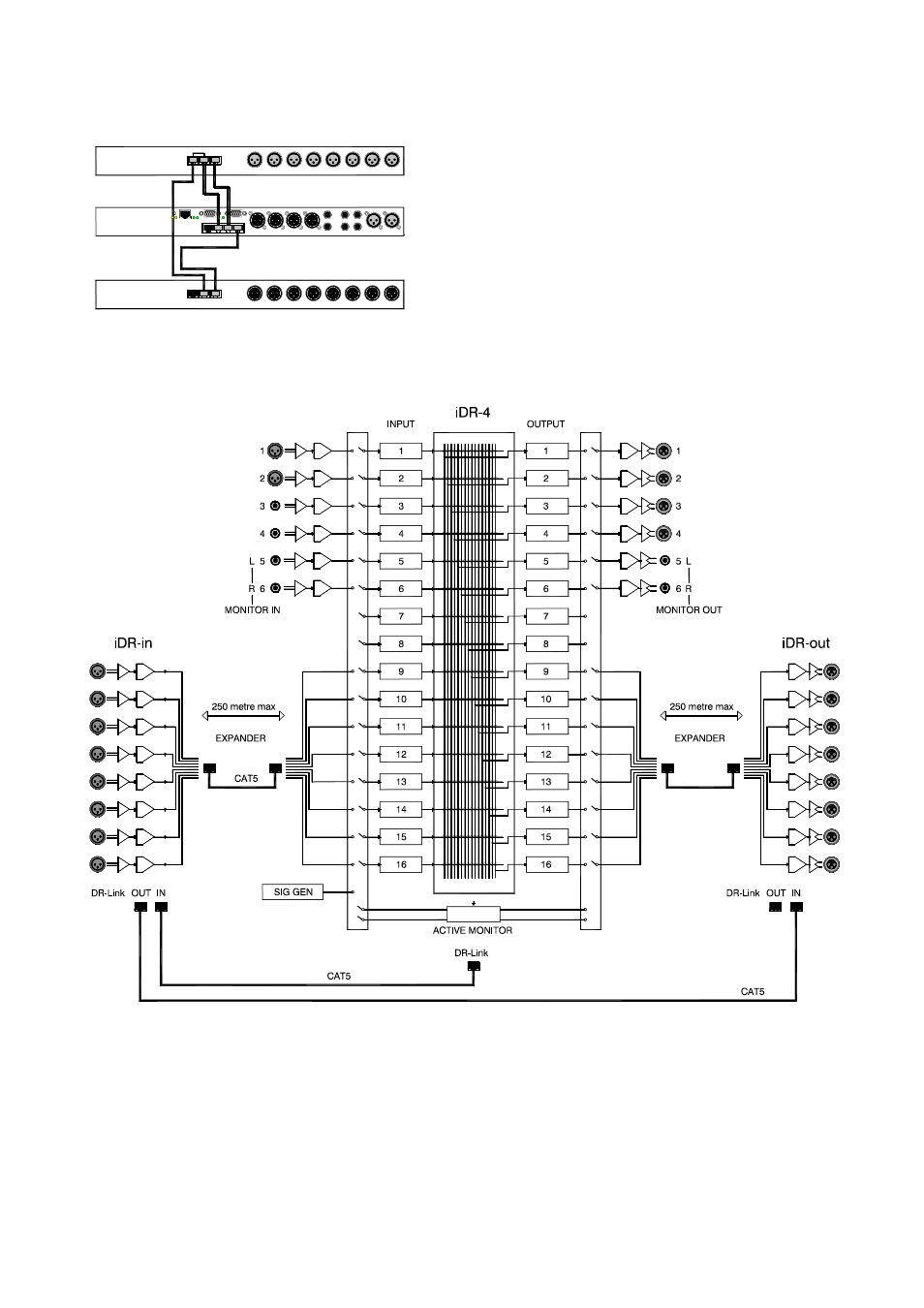

This diagram shows the iDR-4
with both the input and output expander fitted. Note the
connection of DR-Link which is daisy chained from one unit to
the next. If an iDR-switch unit is also fitted then daisy chain
DR-Link from the last expander to the switch box. Make sure
you plug into the correct DR-Link socket.
Use CAT5 STP cable. A pair of standard 2 metre cables is
provided with each expander. Maximum cable length is 250
metres. This means that the expander units can be used for
remote audio over CAT5 cable.
