Foh/monitor linking through a switch, Bridging the console network over dante – Allen&Heath DANTE User Manual
Page 9

iLive M-DANTE Option Instructions
9
AP8340 issue 4
FOH/Monitor linking through a switch

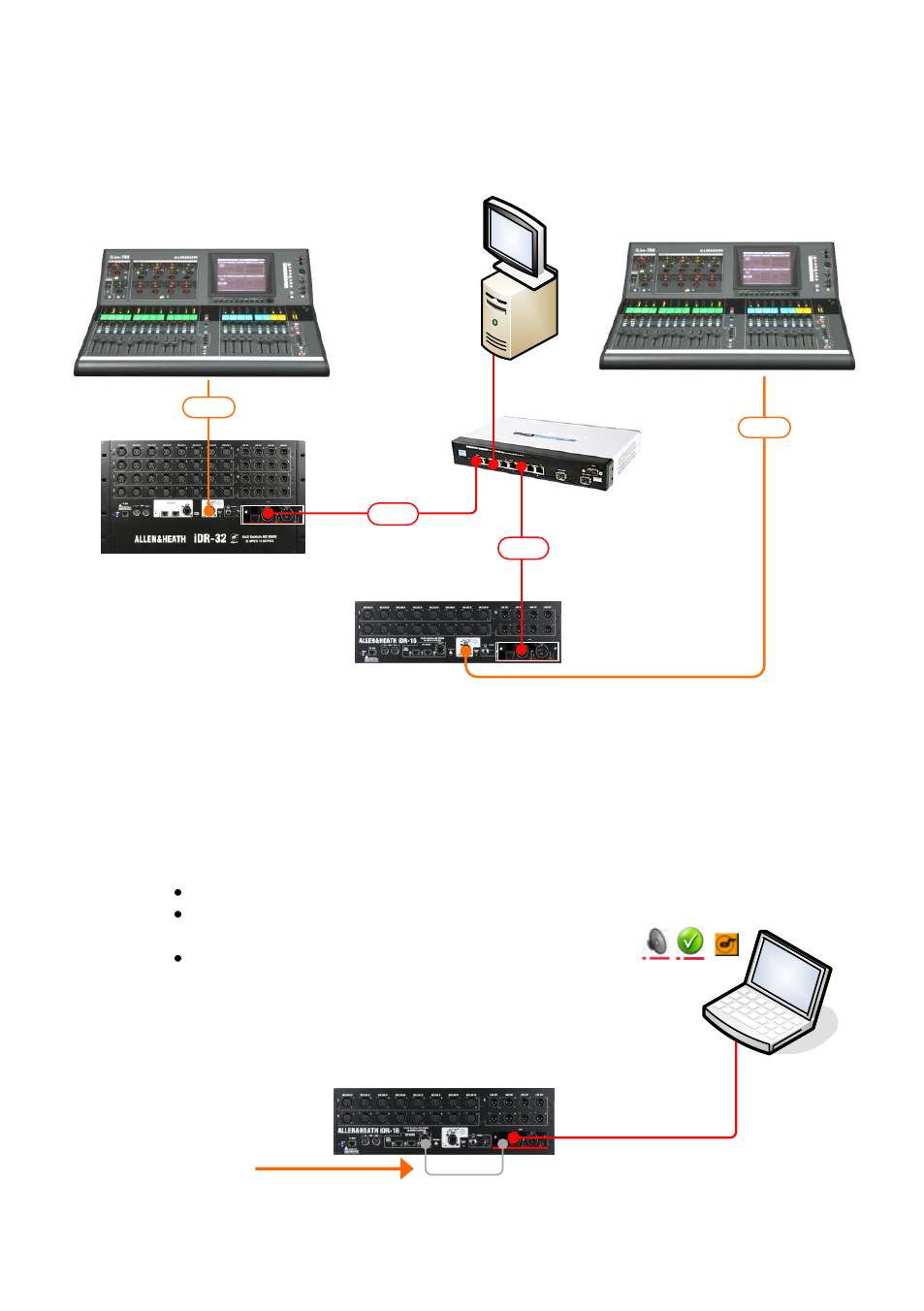

This example shows two iLive systems using Dante as a digital mic
splitter to share the Mic Preamps for FOH and Monitor mixing. The
Gigabit switch is needed if you want to add recording and other Dante
equipped audio devices.
Bridging the console network over Dante
This example shows an iLive MixRack with one of its Network ports
connected to the Dante Control Network port so that the console Editor
software can be run on the same computer as Dante Controller.
FOH
Ethernet port
DANTE
Gigabit Switch
Recording
computer
ACE
ACE
Port B M-Dante
Primary port
DANTE
Port B M-Dante
Primary port
MONITOR
The computer can be connected:
Directly to the Dante Primary port,
Via a Gigabit switch to allow connection of
several other Dante enabled devices, or
Via a wireless router plugged into the network.
Note
If you using the same computer to run Dante
Controller and Editor, or connecting a wireless
router then we recommend you set compatible
static IP addresses for all devices.
Editor
Controller
Virtual Soundcard
iLive
Network bridge
cable
