AirLive WMU-6000FS User’s Manual 77
WDS only mode: WDS
ÆWireless Distribution system. This device also
supports this function. How to configure this in your circumstance? The
below Figure1 is for the reference. First, check which channel you want to
use. For example, channel 10. Scan other AP which channel is 10 and
supports WDS function. Second, add the wireless MAC address of
WMU-6000FS in this Wireless Router # 2. (Figure2). And use Scan AP to
find the wireless which SSID is “WR-2” and join it in the list. Third, if it is
normal, LAN-Host#1 can find the devices, like Wireless Router #2 and
LAN-Host#2.

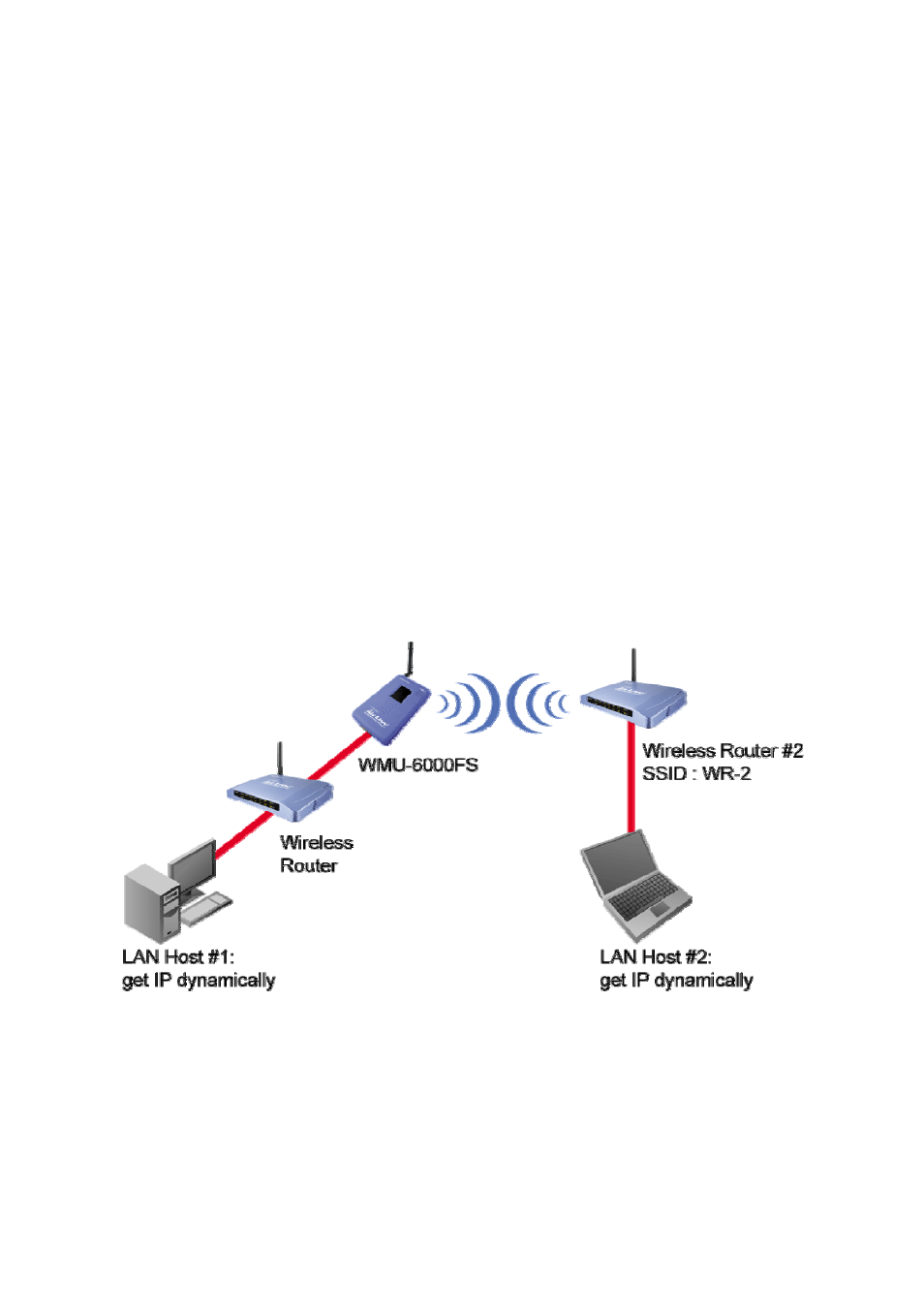

Fig ure 1:
