2. Easy Installation Guide // 3. Using MU-7000AV

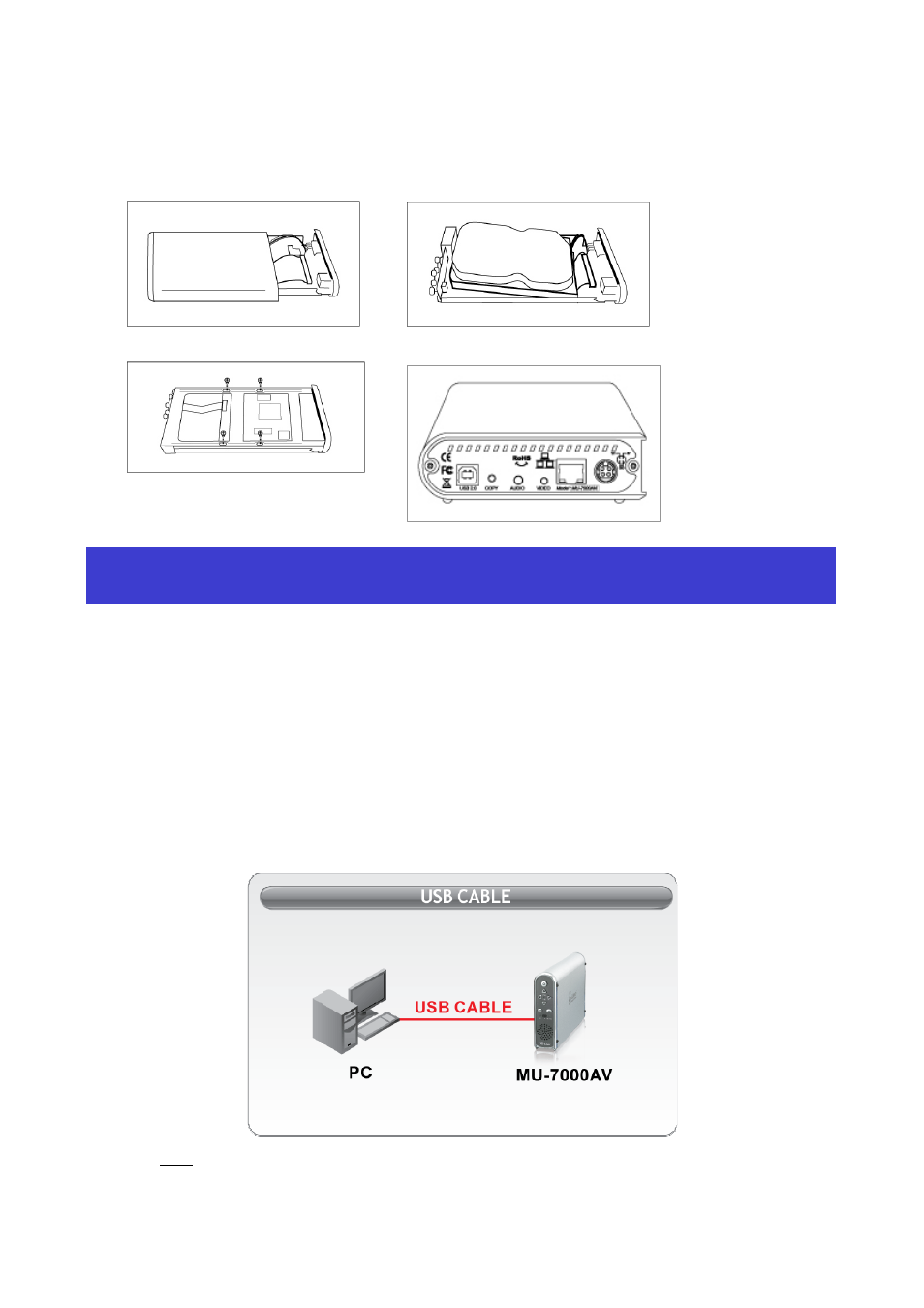

2.6 Hardware Installation

Step1 Step2

Step3 Step4

3. Using MU-7000AV

3.1 USB Enclosure

1. Connect the power cable then power on it (push the power button for 2~4 seconds).

2. Connect the USB cable to your computer.

3. When your hard disk is detected by your computer, LED1 is on.

3.1.1 USB OTB (One Touch Backup)

1. Install the Setup_v1.5.exe from OTB in the Software Install CD.

2. Setup the folder or partition you want to copy, and push the button. The OTB function will start

automatically.

Note： If you plug the MU-7000AV into computer with USB, media file playback and NDAS

will not work.
