2.1.2 Ports

Port status page always shows current port status of all 8 ports. User can set link mode, enable or disable flow

control and jumbo frame. However, be noticed that the jumbo frame is global setting, it can’t be set on

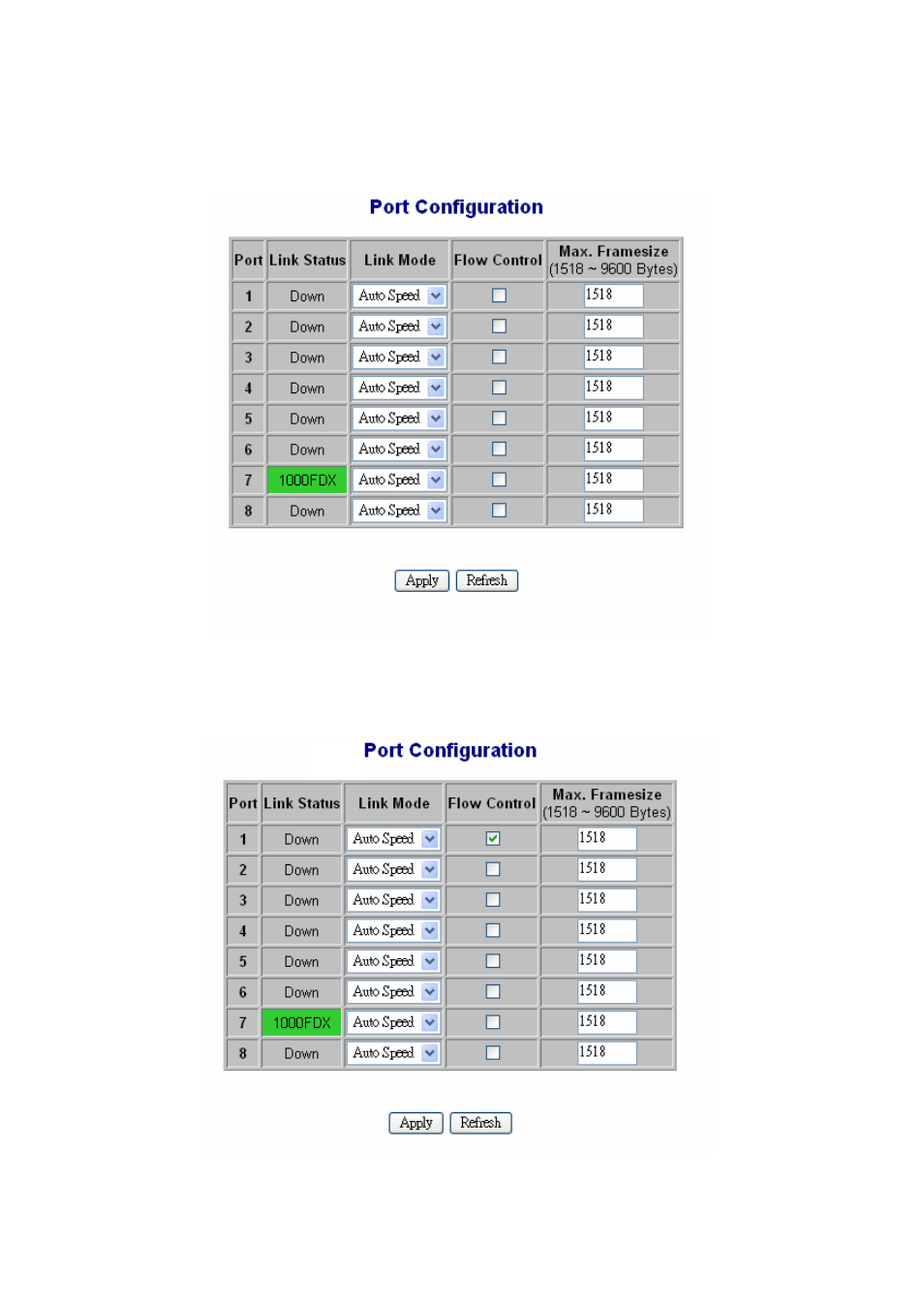

individual port but on all ports at a time. A default diagram is shown below

Choose and click the ports you want to set. For example, choose port 1, and set port 1 Flow Control enable,

then press “Apply”. After execution, diagram will be shown as below.
