2.1 Configurations

2.1.1 System

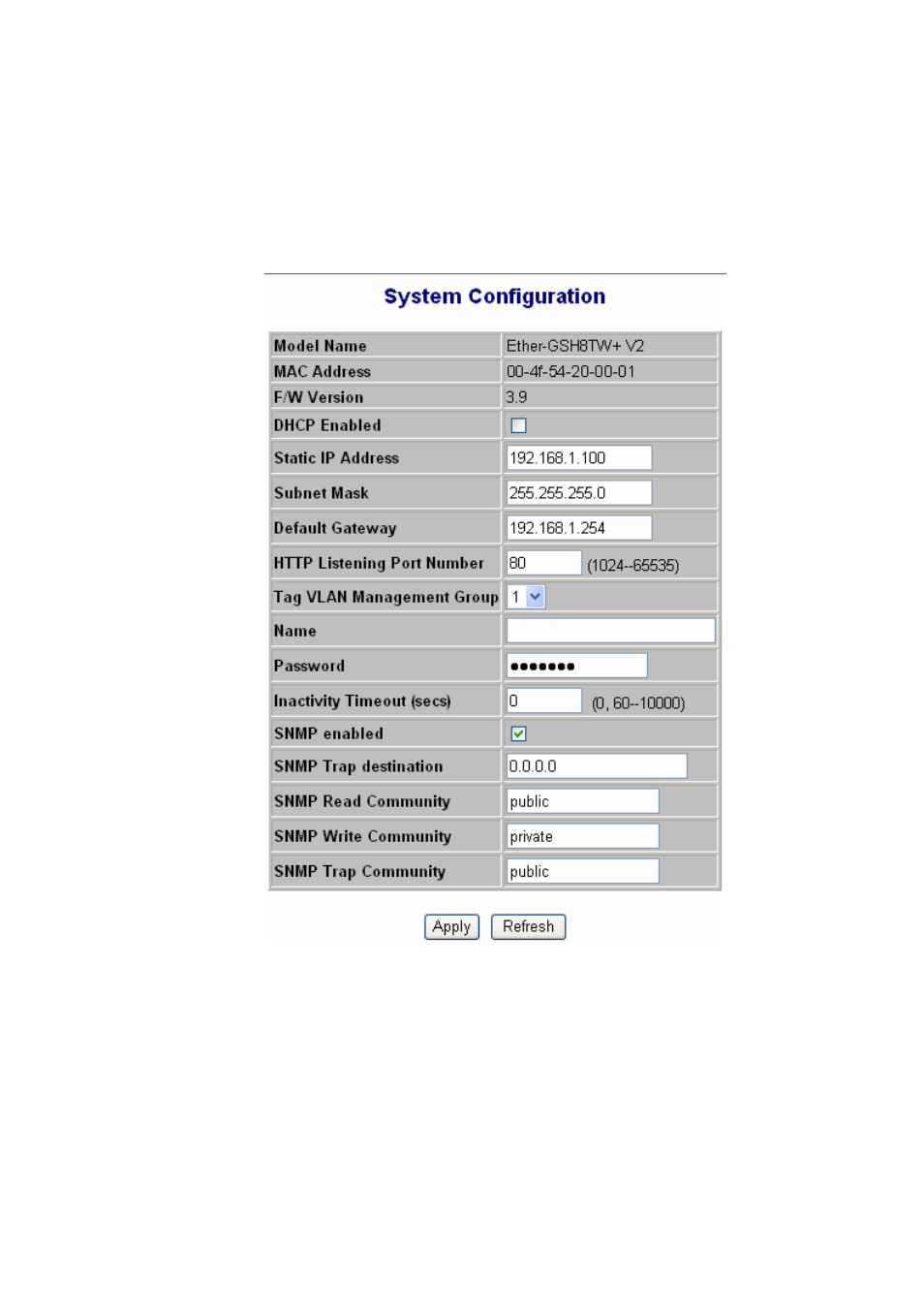

The system diagram shows general common system information, they are H/W, F/W version, MAC address, IP

address, subnet mask, IP gateway, default VLAN value of management port, name, password, timeout value,

and SNMP communities…etc. Once the user finish the setting, he must press the “ Apply “ button to execute all

his setting, and whenever he needs, he may press the “ Refresh “ button to get updated status of system

information.
