N D E R S T A N D I N G
LED I
N D I C A T O R S
The front panel LEDs provides instant status feedback, and, helps
monitor and troubleshoot when needed.

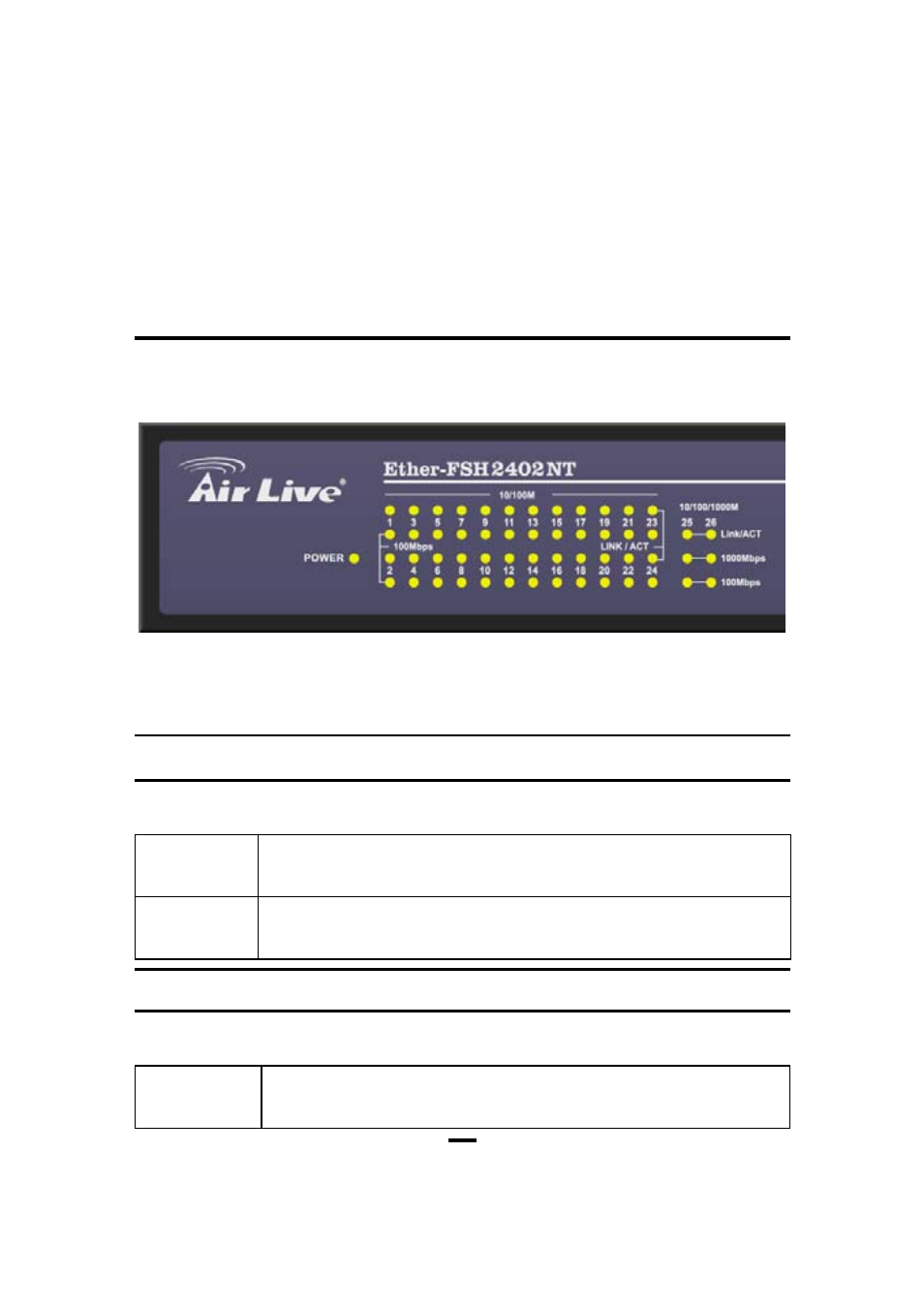

Figure 6. LED indicators of the Switch
Power LED
9
POWER
On : When the Power LED lights on, the Switch is receiving
power.
Off : When the Power LED turns off or the power cord has
improper connection.
Ports 1~24 Status LEDs
9
LINK/ACT
On : When the LED lights on, the respective port is connected to
the 10/100Mbps Ethernet network.
