AirLive CamPro Express 64 User Manual
Page 20
19

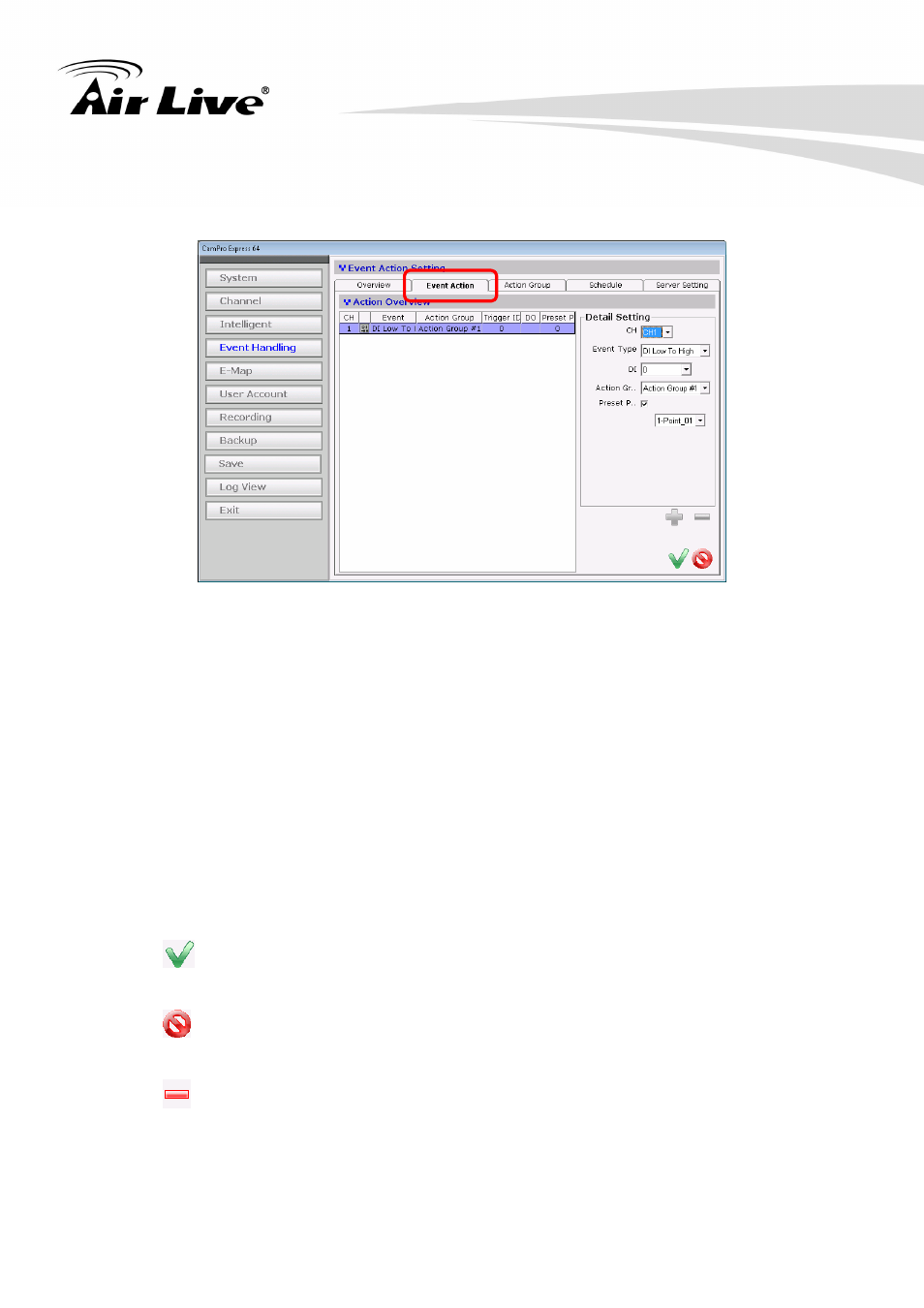

2.3.7 Please configure the event trigger as explanation below:
CH: Select the desired channel for setting.
Event Type: Use the dropdown menu to set the event type. The event
type includes Digital Input (DI) and Motion Detection.
DI: Select the DI device in use. 0 means the first DI device and so on.
Action Group: Use the dropdown menu to select the action group for
applying.
Preset Point: If a Pan/Tilt supported IP camera is in use, you might
specify a preset point for the IP camera. When an event is triggered,
the lens will move to the preset point.
Button: Click on this button for saving the configuration.
Button: Use this button to cancel the configuration you made.
Button: Use this button to remove the event action on the event
action list..
