7. Application Example: Infrastructure
AirLive AirMax5N/ESD User’s Manual
67

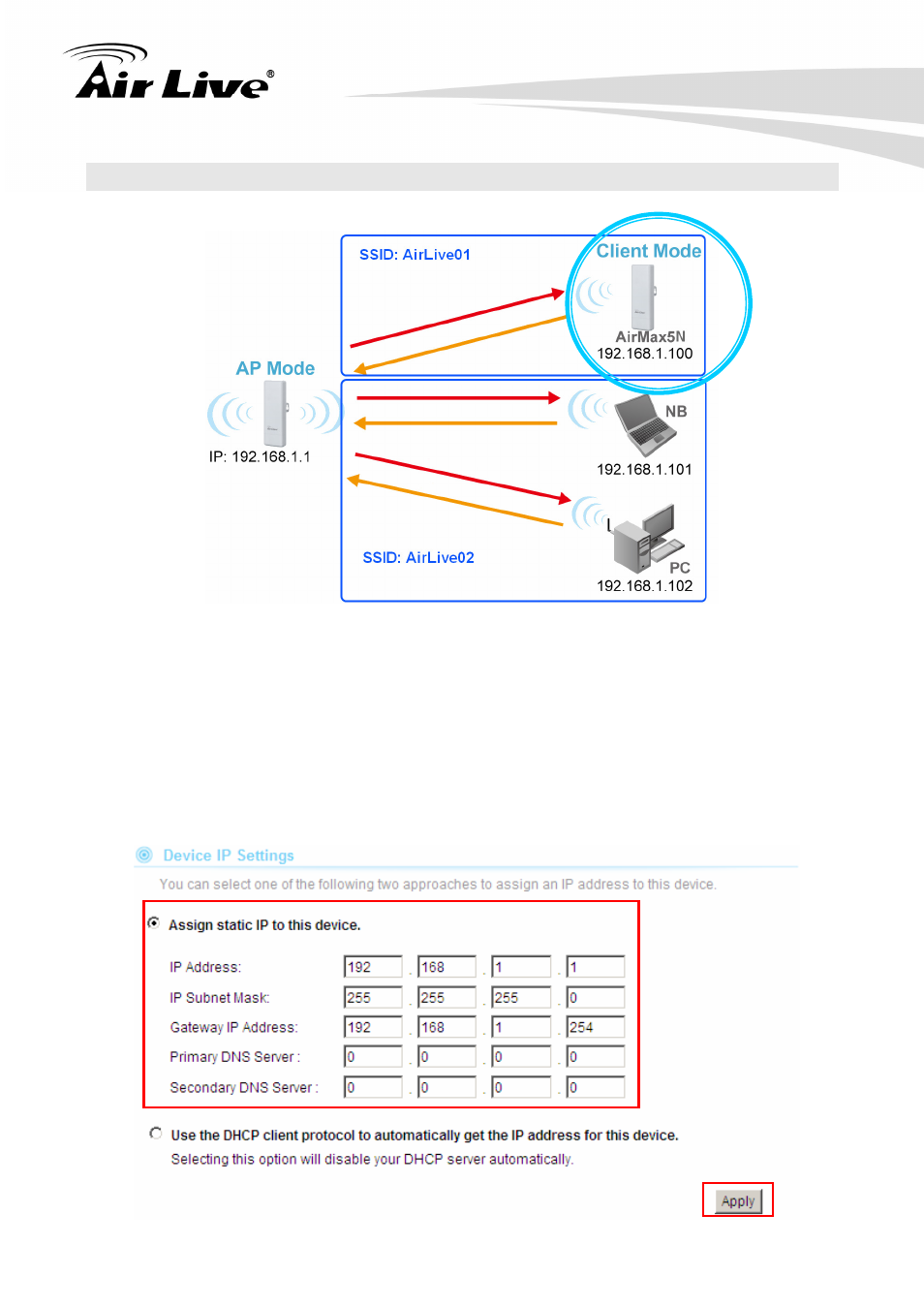

7.3 Client: Client Mode
Client : AirMax5N in Client Infrastructure Mode
Set device IP to 192.168.1.100 with subnet mask of 255.255.255.248
Connect to the Access Point using Client mode.
Use Site Survey to connect and associate with the AP.
7.3.1 Device C IP Address
Step 1 Go to “System Configuration -> Device IP settings”. Select “Assign Static IP to this
device”. Then enter the IP address and Subnet Mask as bellowed. Click Apply when
finished.
