6. Antenna Alignment
AirLive AirMax5N/ESD User’s Manual
61
6.3 Antenna Alignment using Signal Survey

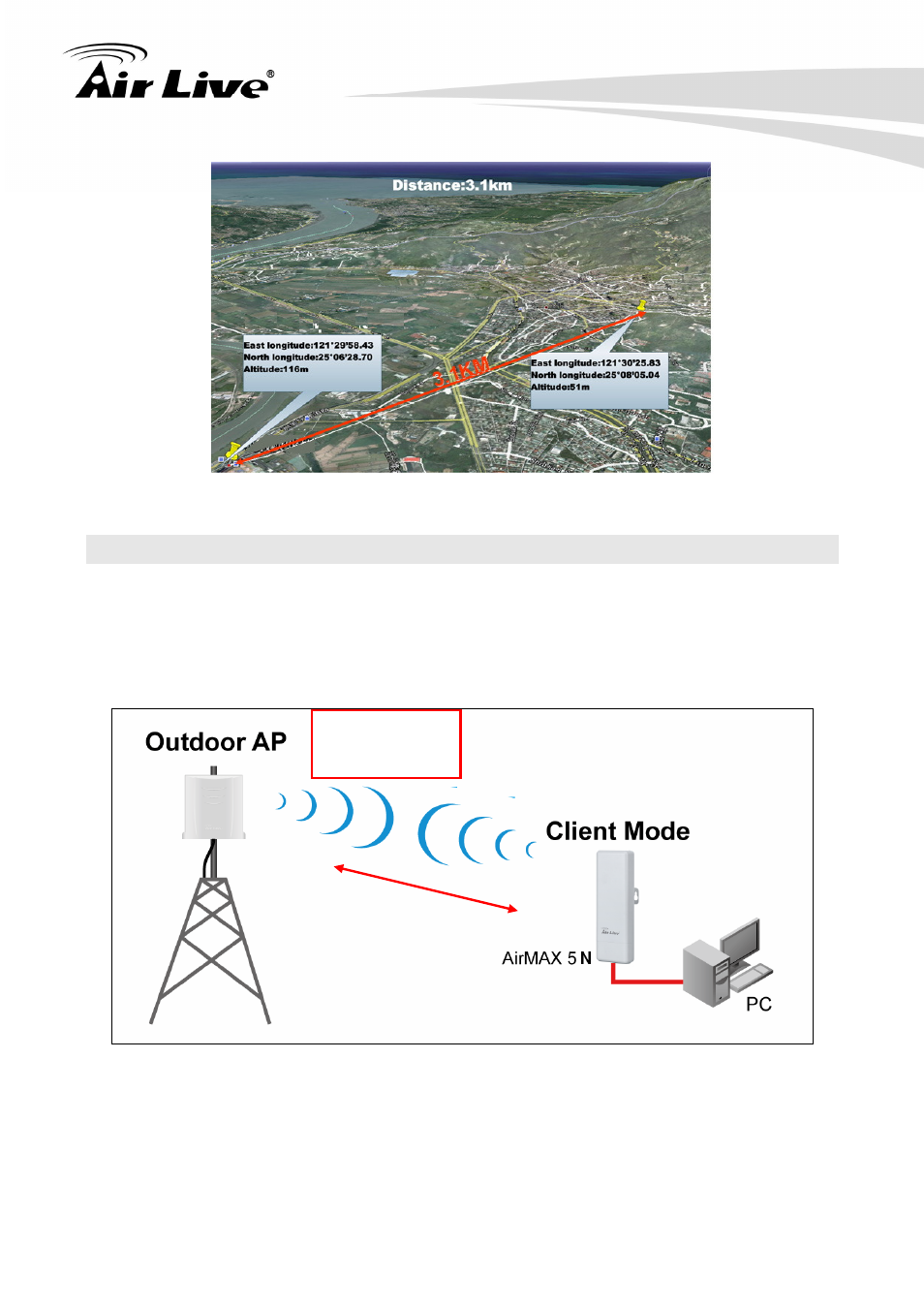

Signal Survey function can display the Signal Strength value in real time to help you with
antenna alignment. The Signal Survey is a subnet of the Site Survey function; you do not
need to enter the wireless settings in advance. Please follow the example below to
complete antenna alignment using Signal Survey function.
SSID: airlive3
Encryption:
WPA-PSK
3 km
