Chapter 4 – Visualization on MyChron4 660
In order to visualize lambda values on Mycron4 660, power on the engine and press
“>>/OFF”.
The values will be visualized when RPM value exceeds 500.

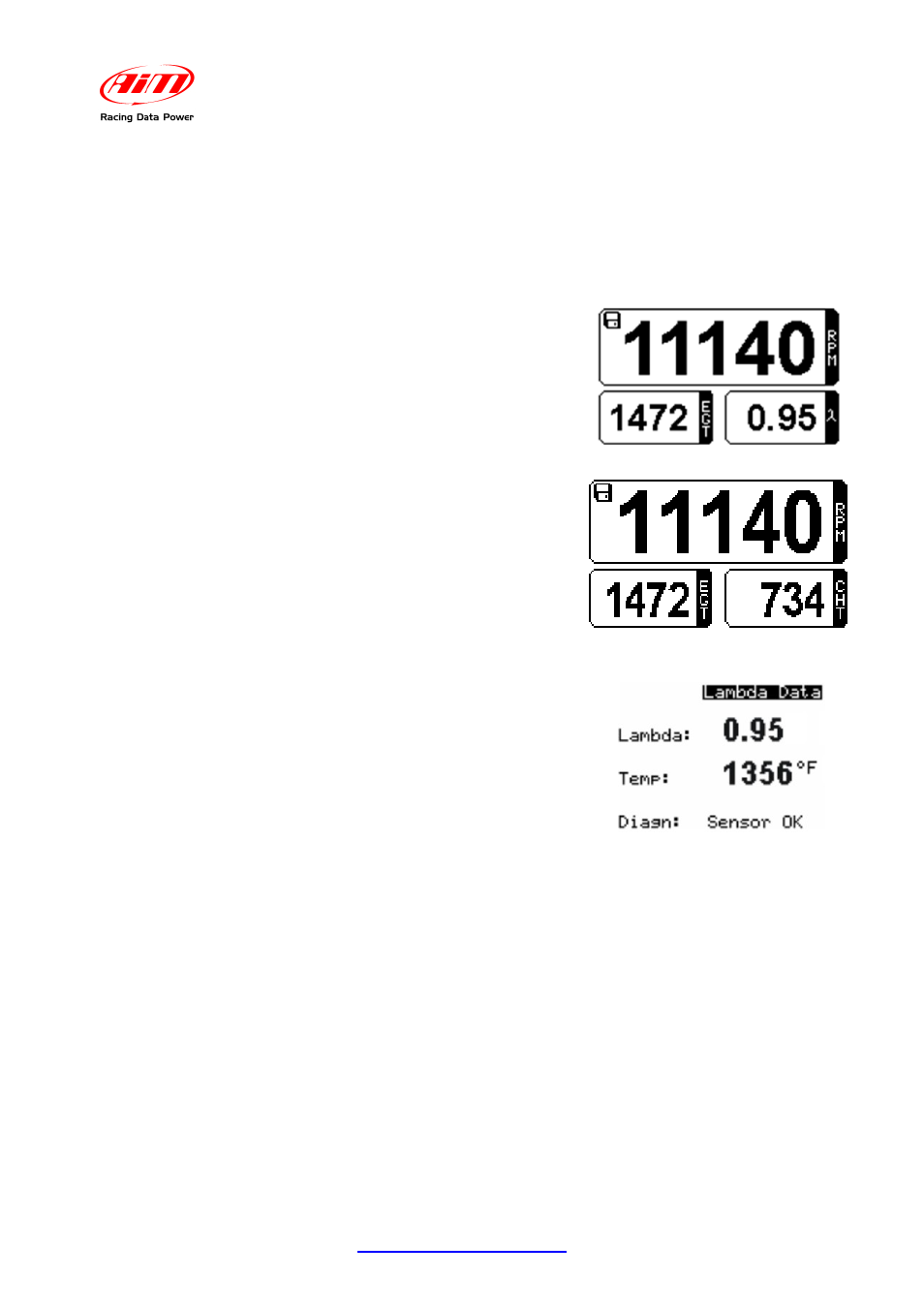

With reference to the image here on the right 3 values
appears on the screen and remain visualized for ten
seconds: RPM (11.140), EGT (1.472) and Lambda (0.95).
After this time the original values appears again: here on
the right: RPM Value (11.140), EGT Value (1.472) and
CHT Value (734).
Pressing “ON/VIEW” Lambda controller page appears; it
shows: Lambda value (0.95), Temp (1356°F) and
Diagnosis (sensor OK).
Diagnosis status can be:
• Sensor Ok: probe status is OK
• Sensor Open: the probe is not connected to the
controller and the circuit is open
• Sensor Fault: short circuit on the wiring
