LCU-ONE CAN connected to MyChron4 660
User Manual
Release 1.04
www.aim-sportline.com
4
Chapter 5 – Data Analysis with QMAn

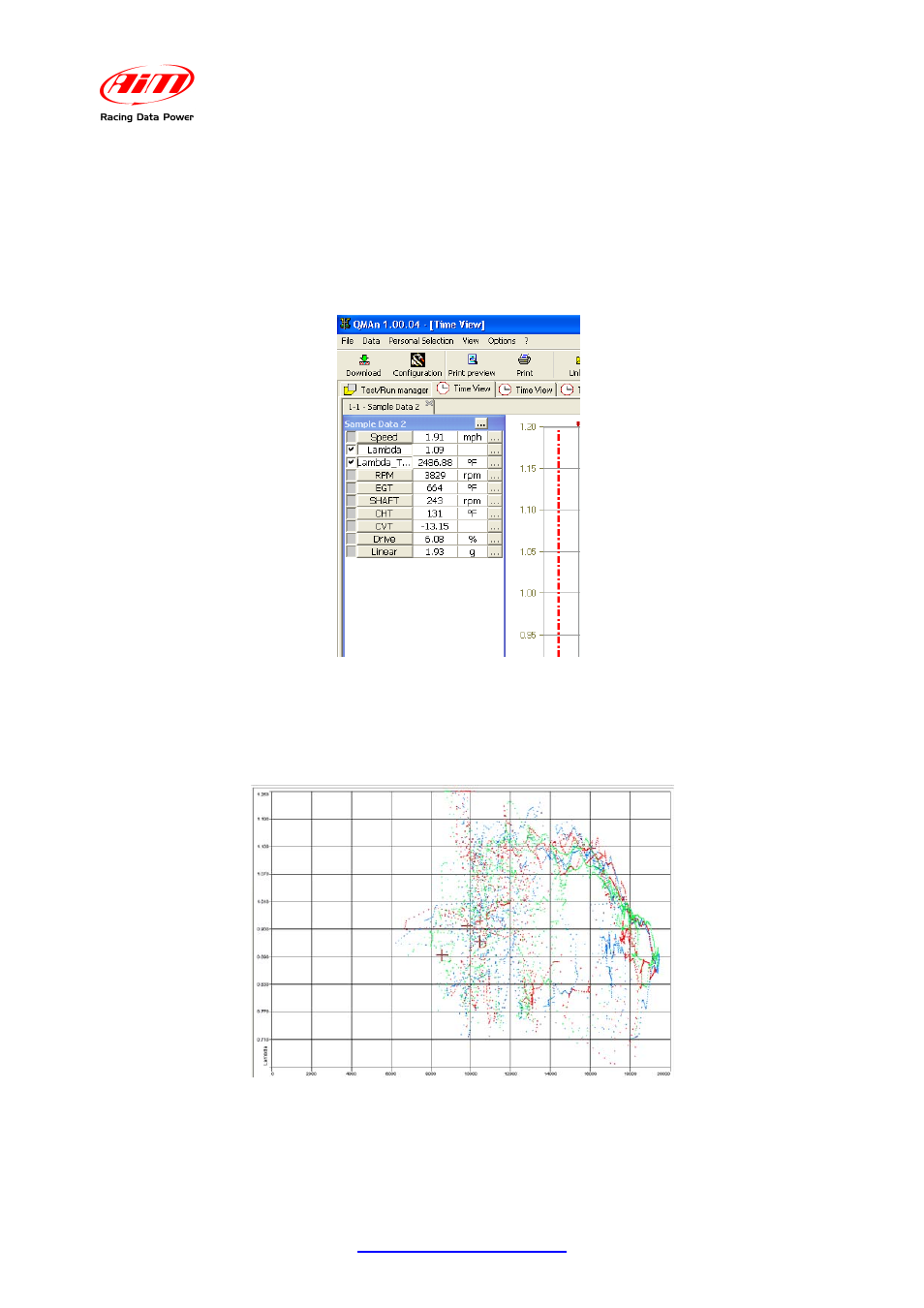

During data analysis, the presence of Lambda controller adds two channels to measures
and laps toolbar (as shown in the picture below):
Lambda: shows lambda value reordered during the session;
Lambda_Temp: indicates the probe internal temperature while working
To better analyse carburettor values we would suggest you to show XY diagram of
Lambda probe with RPM values on abscissa axle and Lambda values on ordinate axle on
the graph.
In this way a more immediate reading of carburetion status will be available.
